412 - 2J9JT082735031035

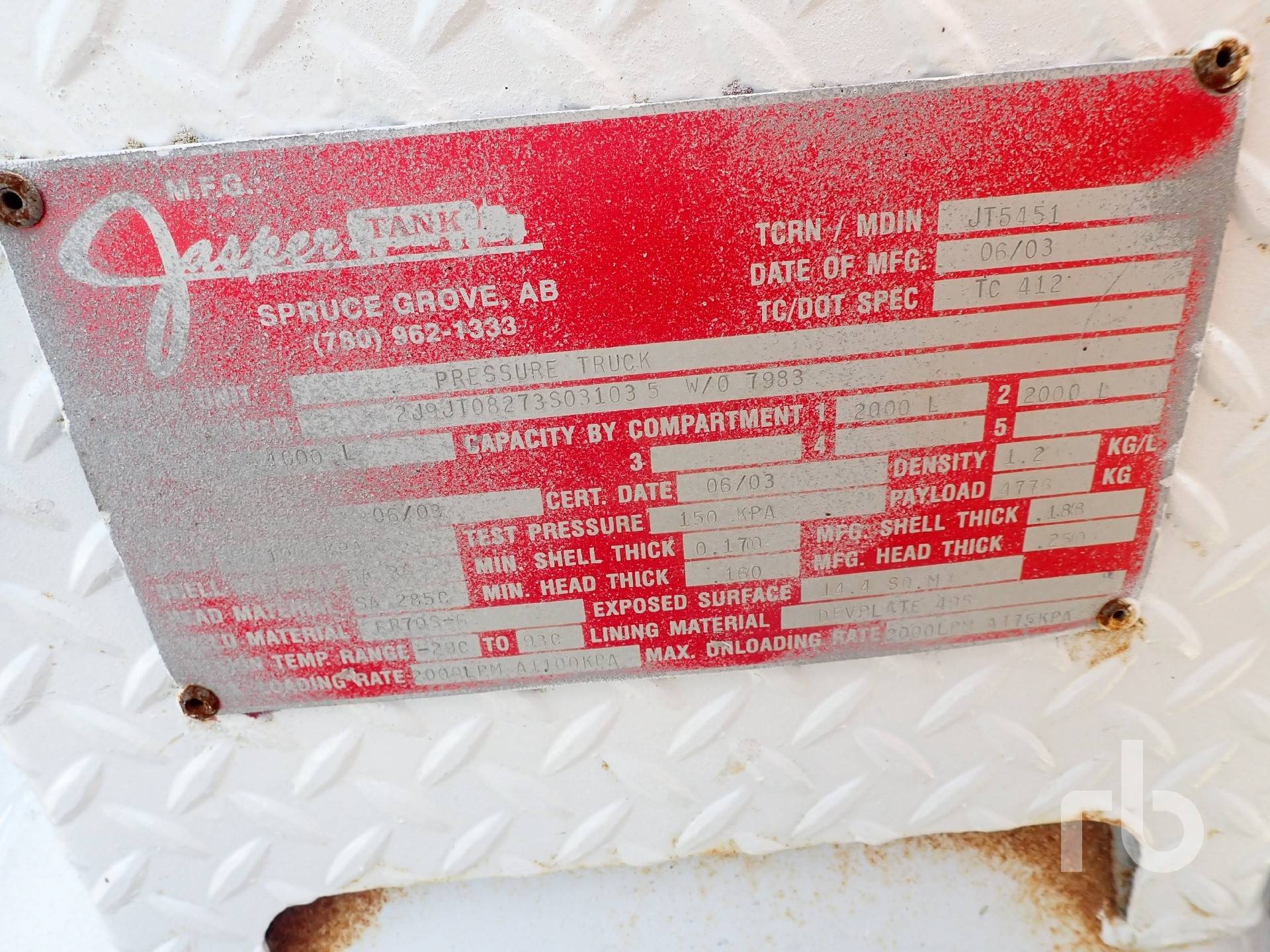

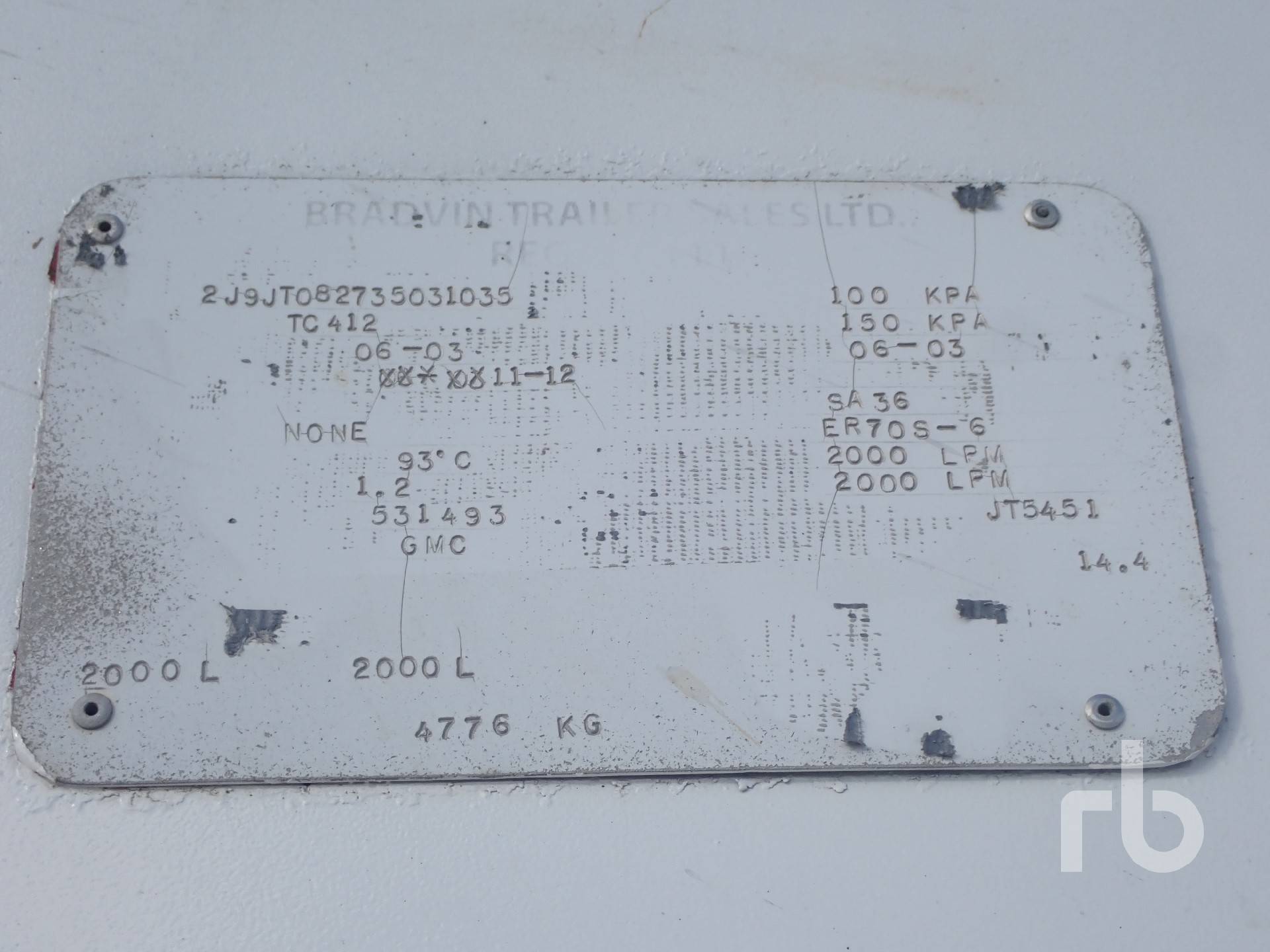

Identification Plate Images
Key Information
- Pic Number
- 638
- Specification
- 412
- Serial Number
- 2J9JT082735031035
- Manufacturer
- Jasper Tank
- MFG Year
- 2003
- Tank Configuration
- Single Axle Tank Truck
- # of Compartments
- 2
Technical Specifications
- MAWP
- 14.5 psi
- Test Pressure
- 21.75 psi
- Temperature Range
- -29C to 93C
- Head Material
- SA 285C
- Shell Material
- SA 36
- Weld Material
- ER70S-6
- Total Volume
- 4000 L
- Max Payload
- 4776 kg
- Max Density
- 1.2 kg/L
- GVWR
- 19500 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.25 | 0.16 |
| Shell | 0.188 | 0.17 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 2000 | - |
| 2 | 2000 | - |
