331 - 41561A

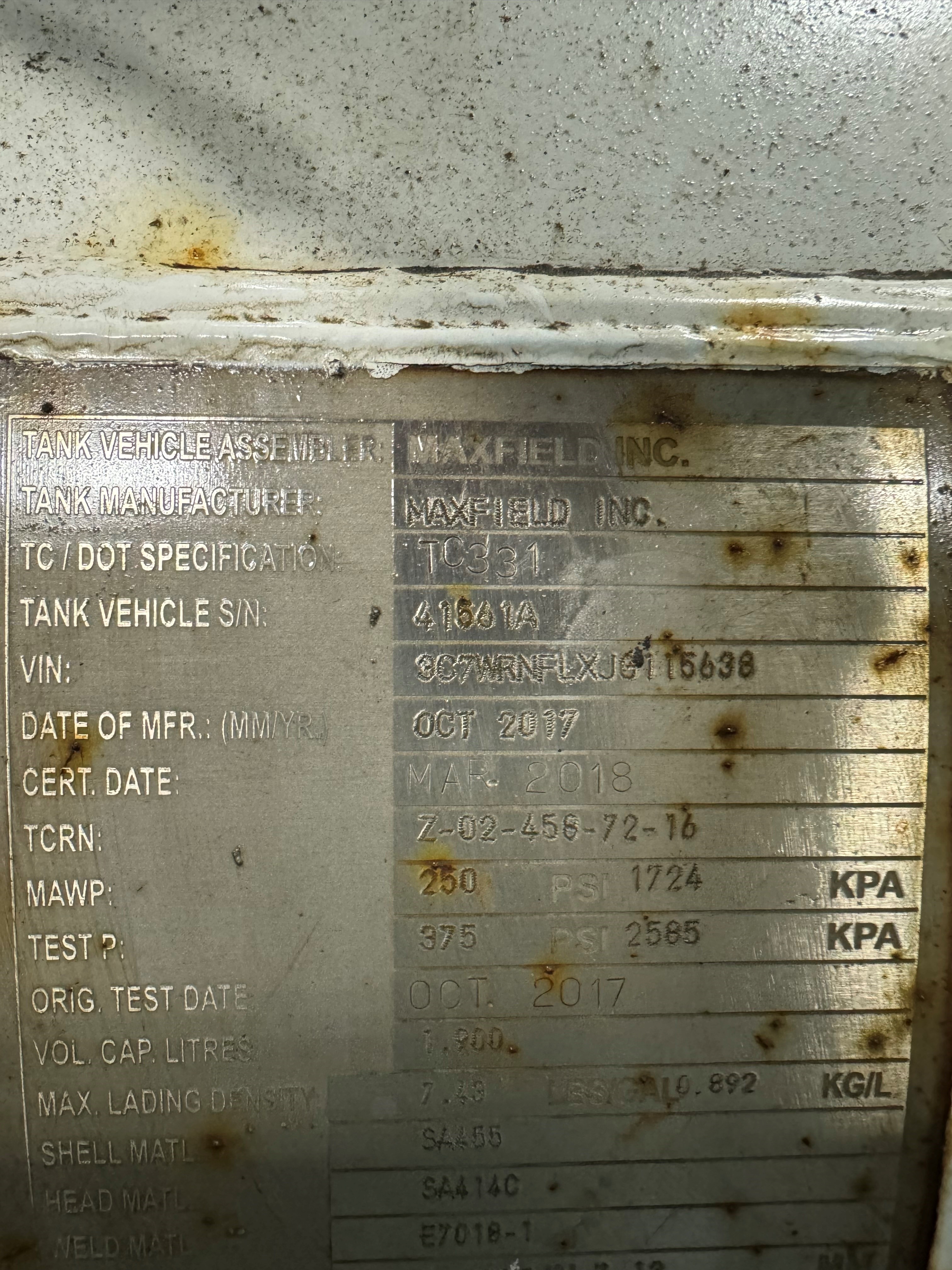

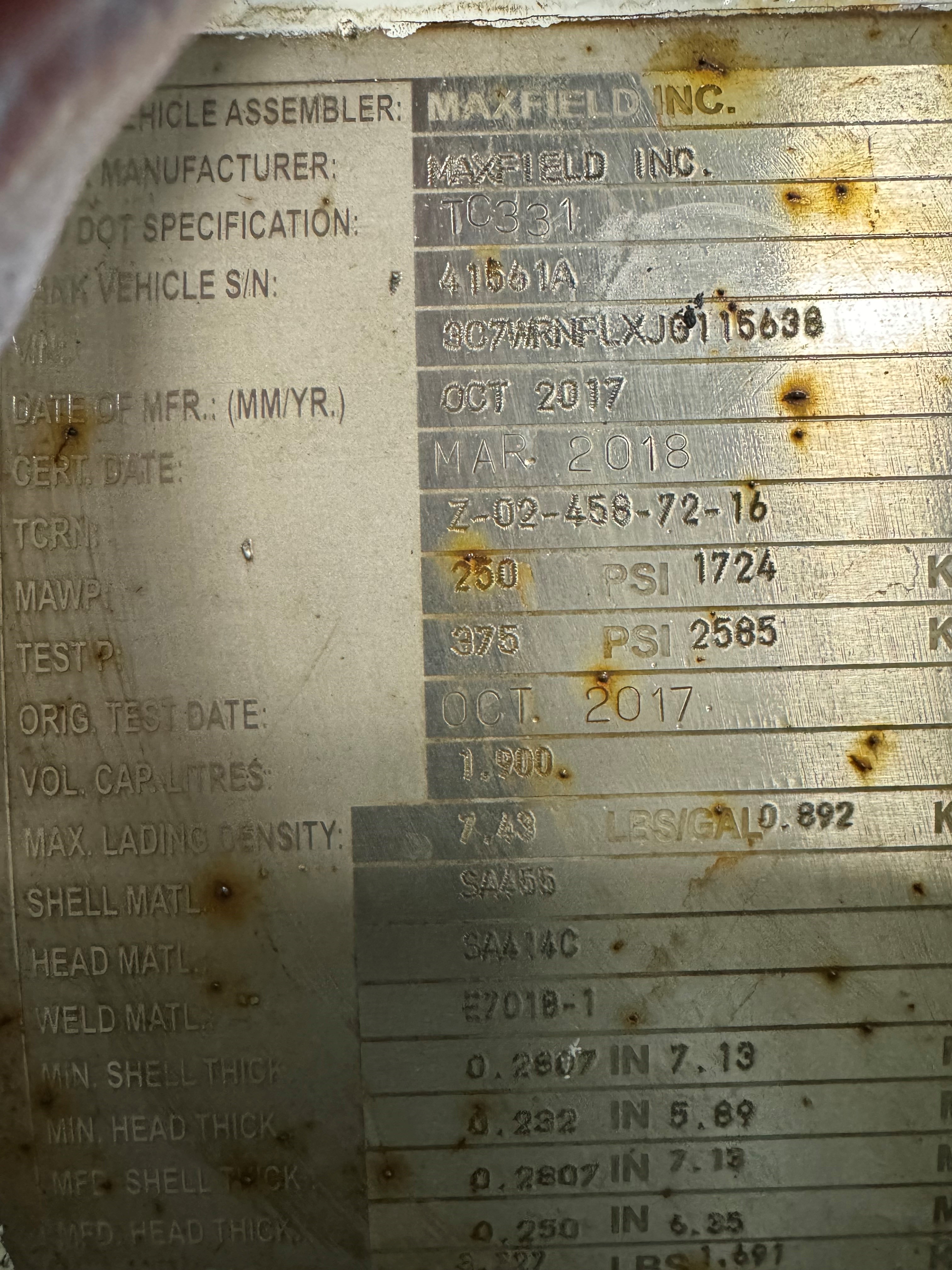

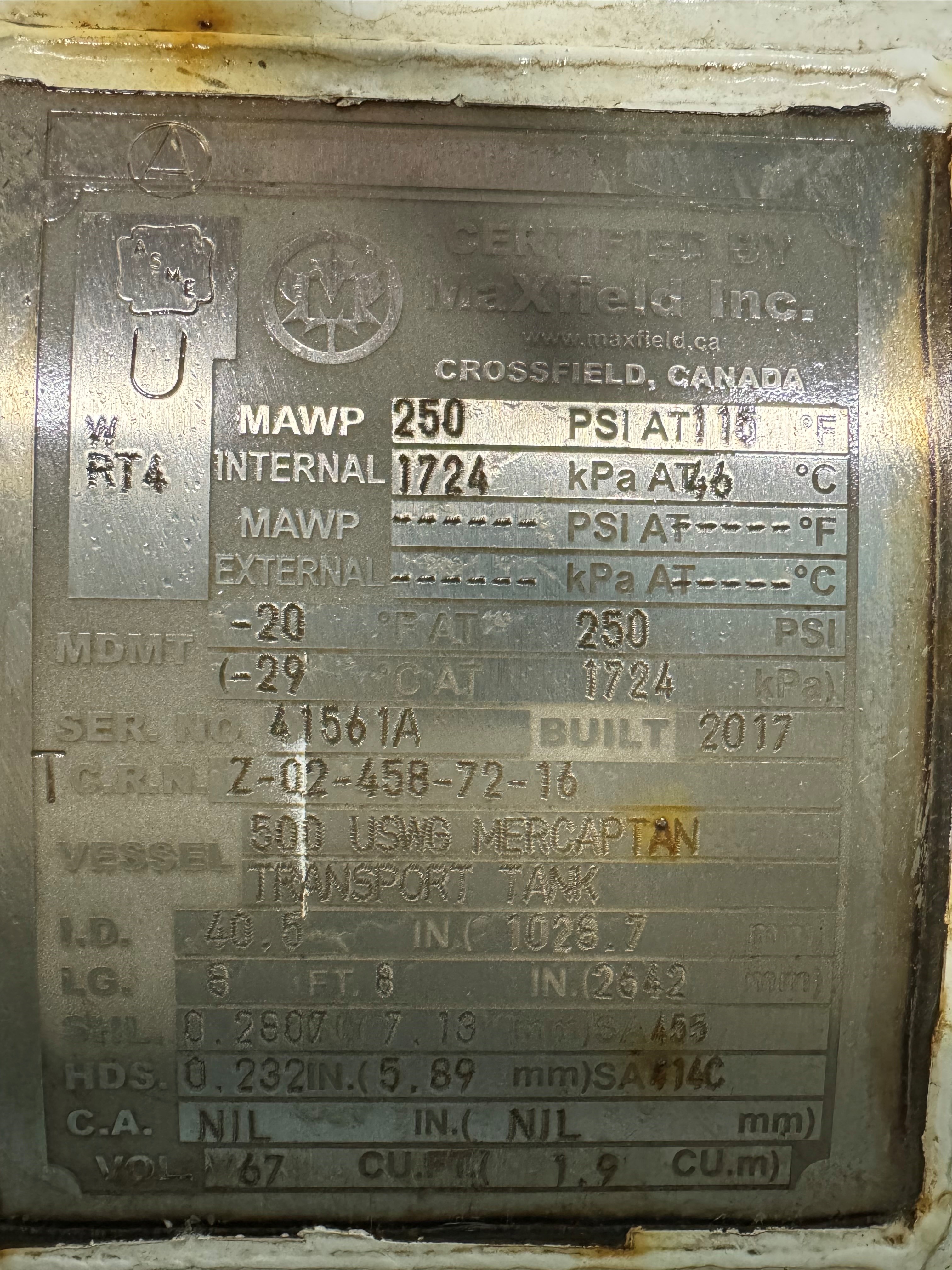

Identification Plate Images
Technical Specifications
- MAWP
- 250.0 psi
- Test Pressure
- 375.0 psi
- Head Material
- SA414-C
- Shell Material
- SA455
- Weld Material
- E7018-1
- Total Volume
- 1900 L
- Max Payload
- 1691 kg
- Max Density
- 0.89 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.25 | 0.232 |
| Shell | 0.2807 | 0.2807 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 1900 | - |
