407 - 1S9AB15C5CH474336

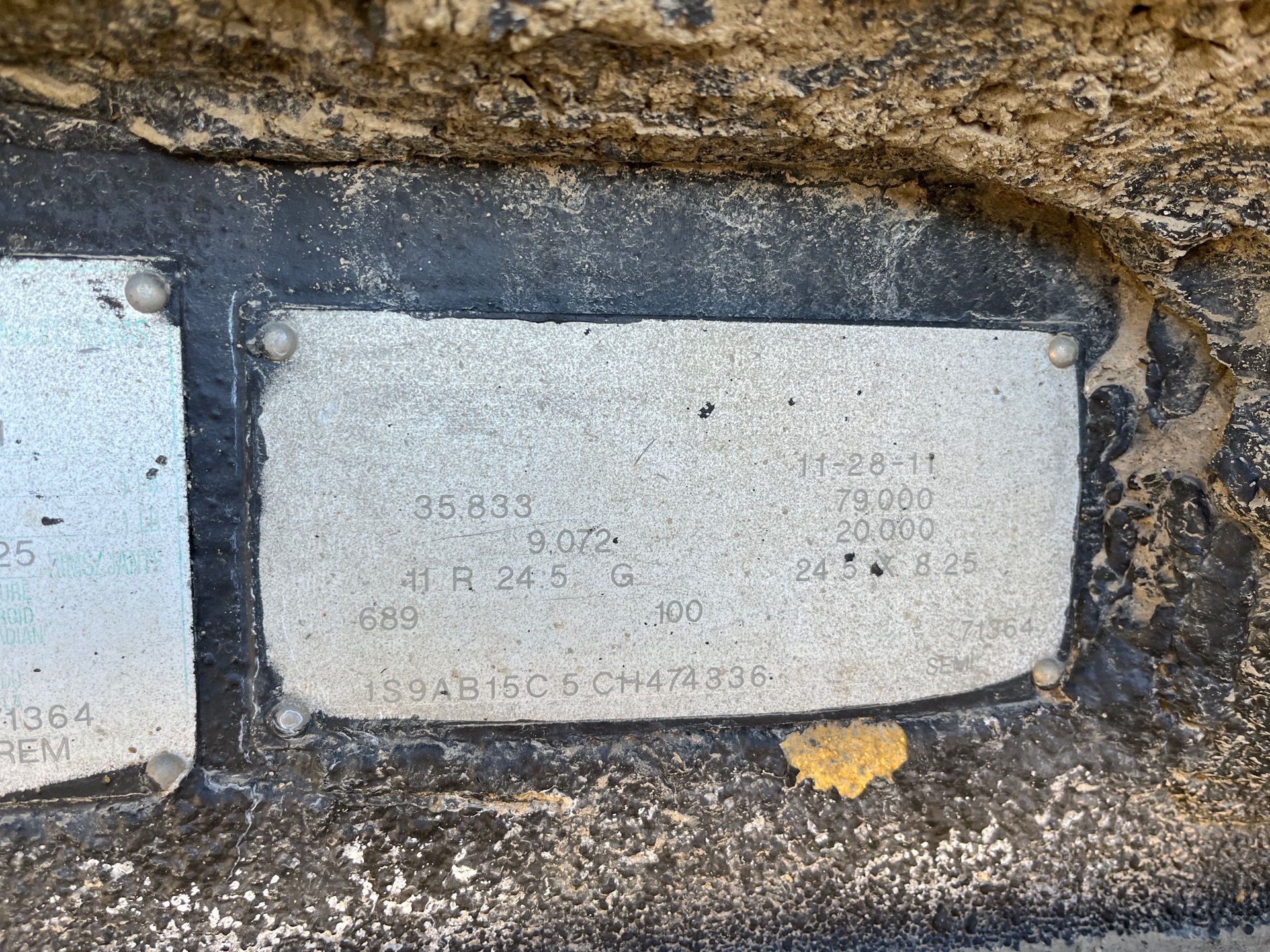

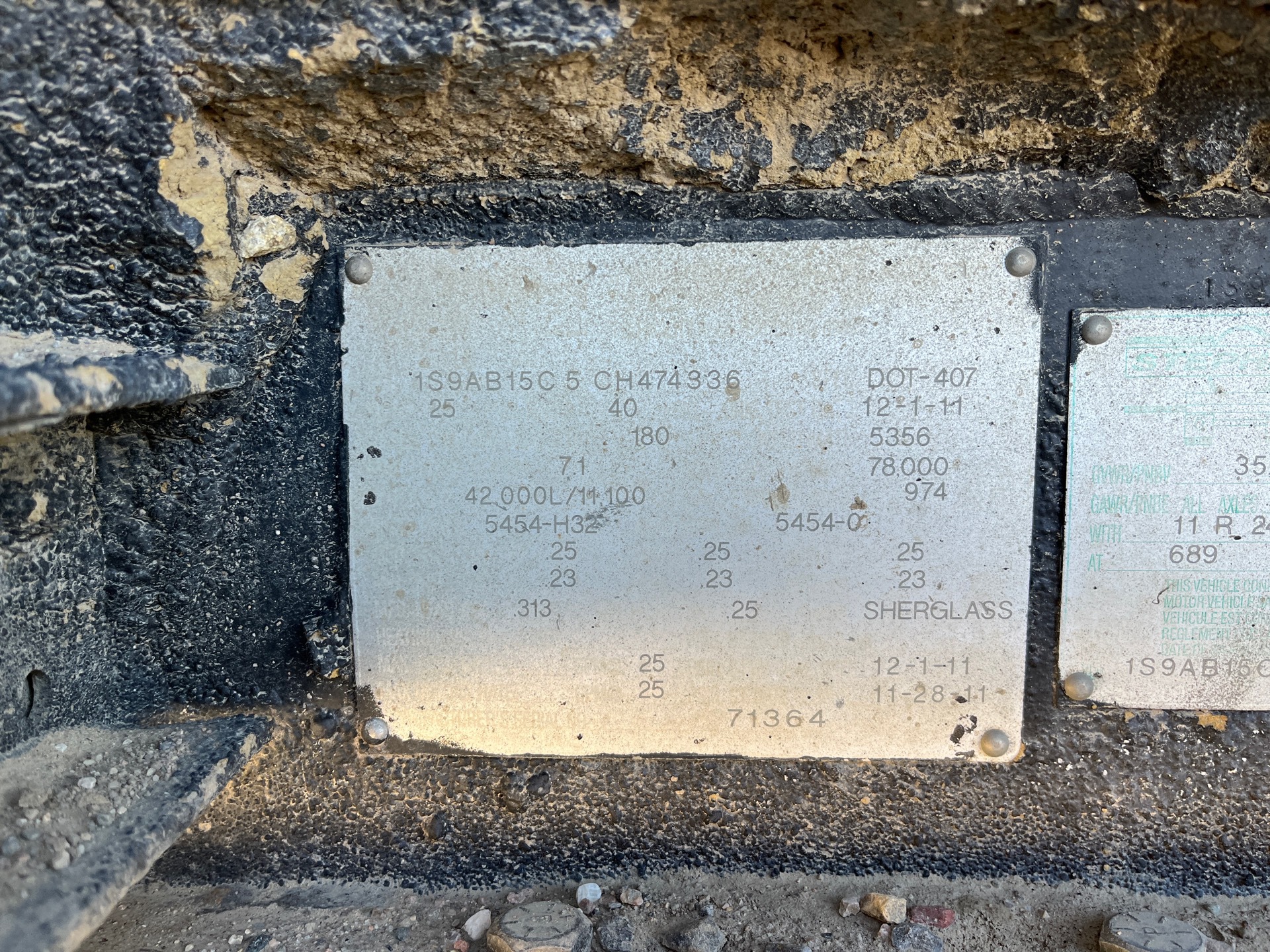

Identification Plate Images
Key Information
- Pic Number
- 712
- Specification
- 407
- Serial Number
- 1S9AB15C5CH474336
- Manufacturer
- Stephens Pneumatics
- MFG Year
- 2011
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 40.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 42018 L
- Max Payload
- 35380 kg
- Max Density
- 0.85 kg/L
- GVWR
- 79000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.313 | 0.25 |
| Top Shell | 0.25 | 0.23 |
| Side Shell | 0.25 | 0.23 |
| Bottom Shell | 0.25 | 0.23 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 42018 | - |
