406 - C23077

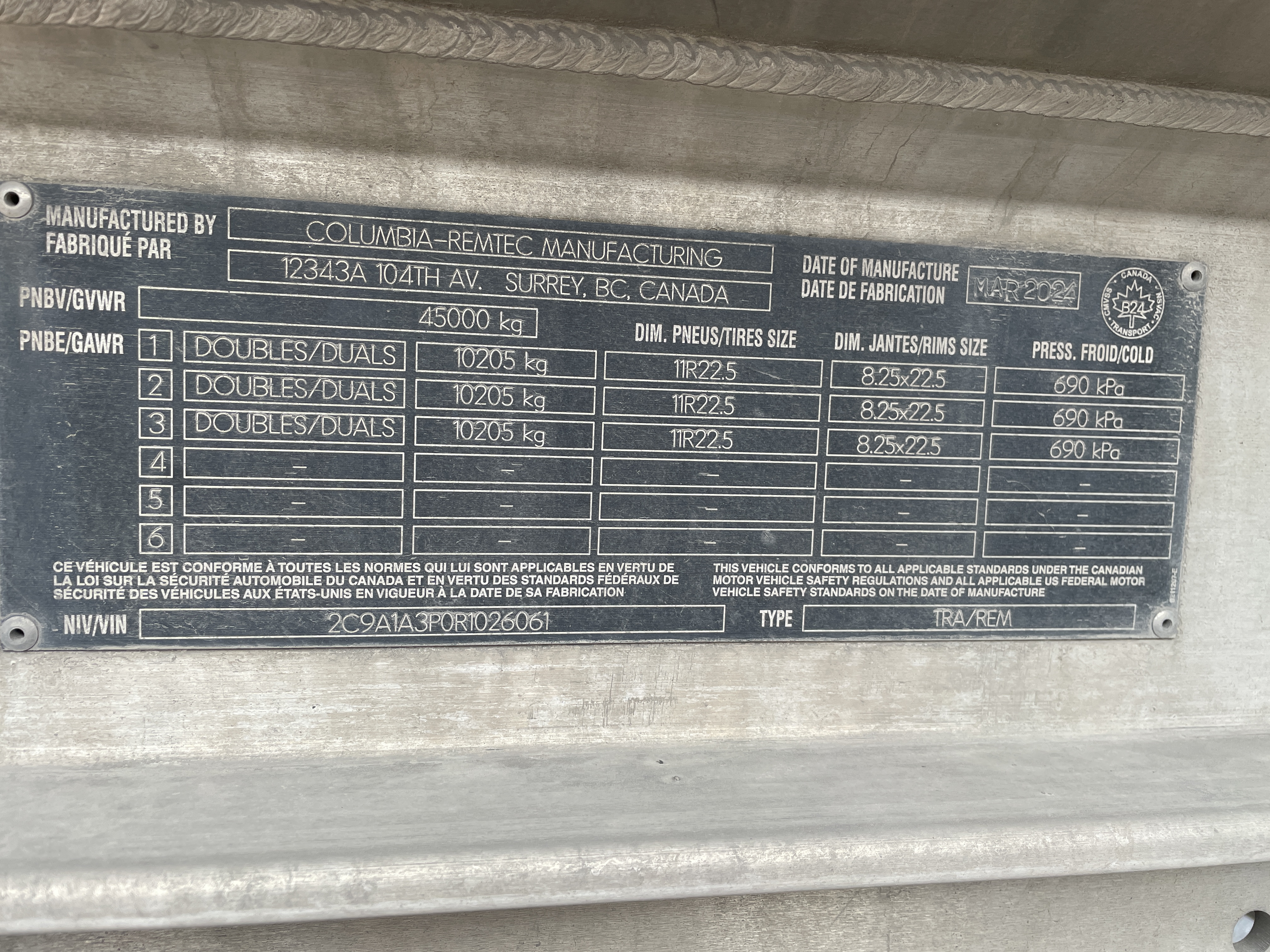

Identification Plate Images
Key Information
- Pic Number
- 767
- Specification
- 406
- Serial Number
- C23077
- Manufacturer
- Columbia Remtec
- MFG Year
- 2024
- Tank Configuration
- Tank Truck
- # of Compartments
- 5
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -28C to 71C
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 47931 L
- Max Payload
- 38536 kg
- Max Density
- 0.87 kg/L
- GVWR
- 99208 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | - | 0.22 |
| Top Shell | - | 0.173 |
| Side Shell | - | 0.173 |
| Bottom Shell | - | 0.22 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 13565 | 28.9 |
| 2 | 5926 | 10.7 |
| 3 | 5433 | 9.8 |
| 4 | 10450 | 19 |
| 5 | 12557 | 25.5 |
