331 - 1823

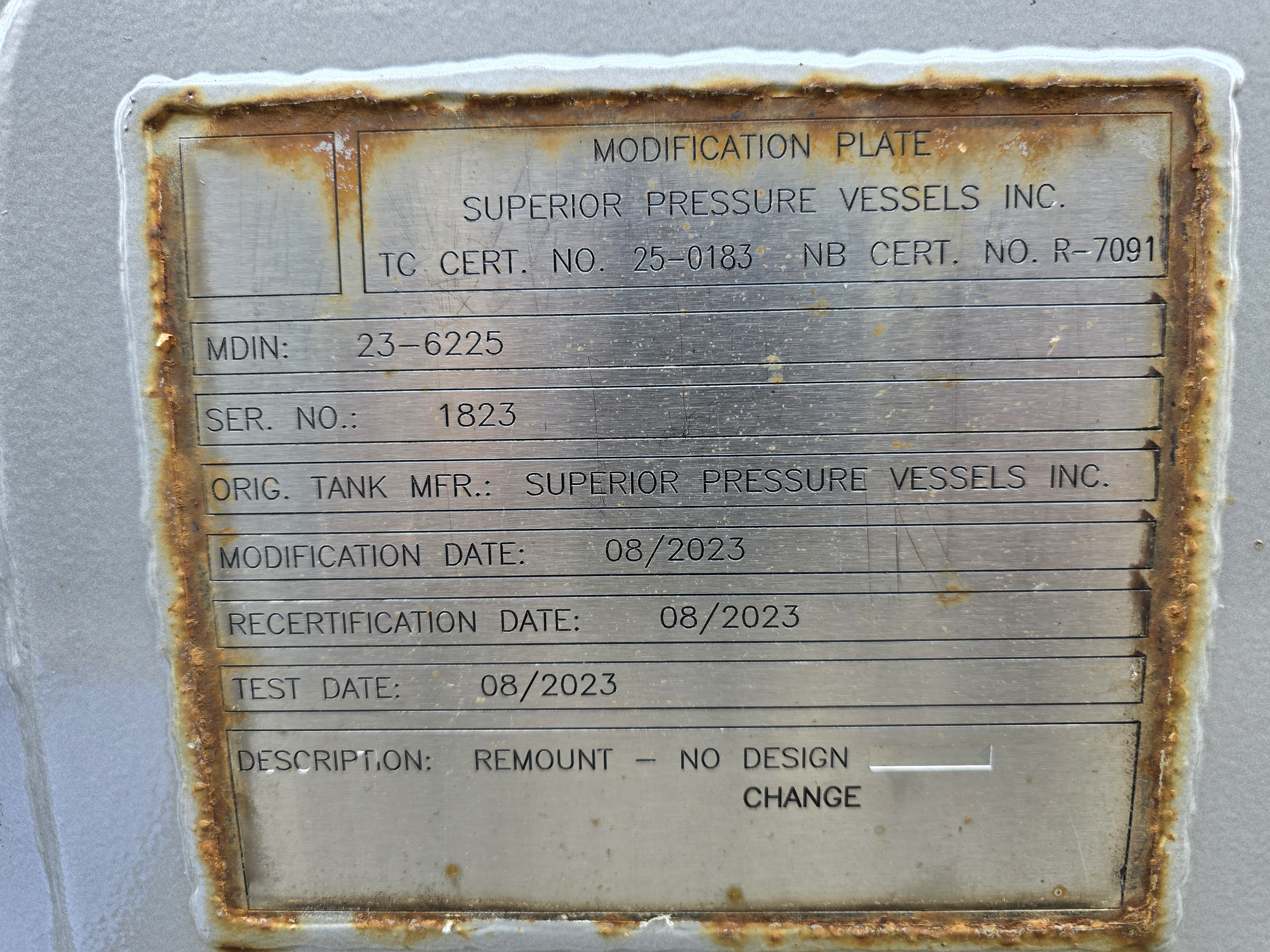

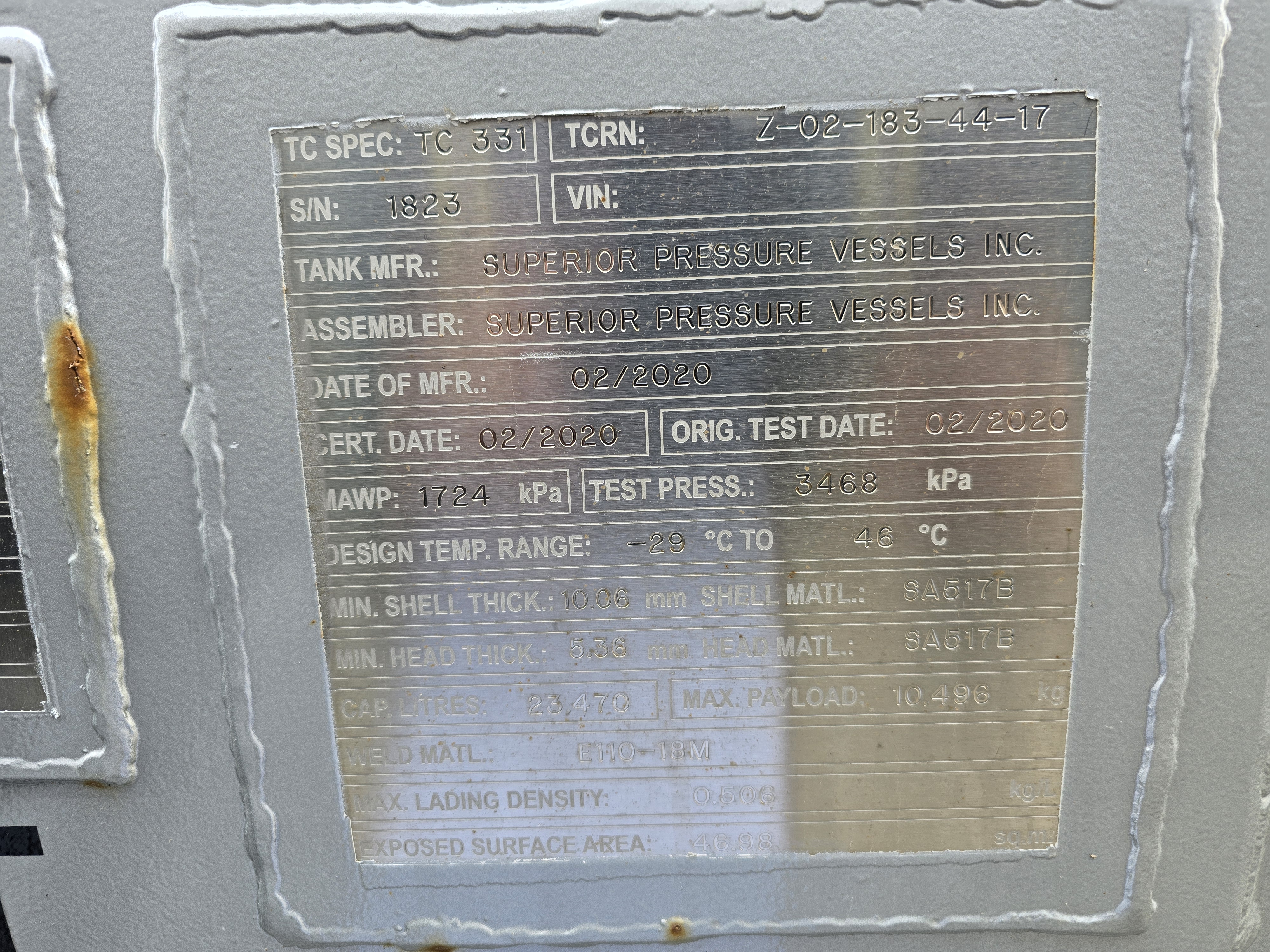

Identification Plate Images
Key Information
- Pic Number
- 785
- Specification
- 331
- Serial Number
- 1823
- Manufacturer
- Superior Pressure Vessels
- MFG Year
- 2020
- TCRN
- Z-02-183-44-17
- # of Compartments
- 1
Technical Specifications
- MAWP
- 250.0 psi
- Test Pressure
- 503.0 psi
- Temperature Range
- -29C to 46C
- Head Material
- SA 517B
- Shell Material
- SA 517B
- Weld Material
- E11018-M
- Total Volume
- 23470 L
- Max Payload
- 10496 kg
- Max Density
- 0.51 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | - | 0.211 |
| Shell | - | 0.396 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 23470 | 47 |
