312 - PES 513

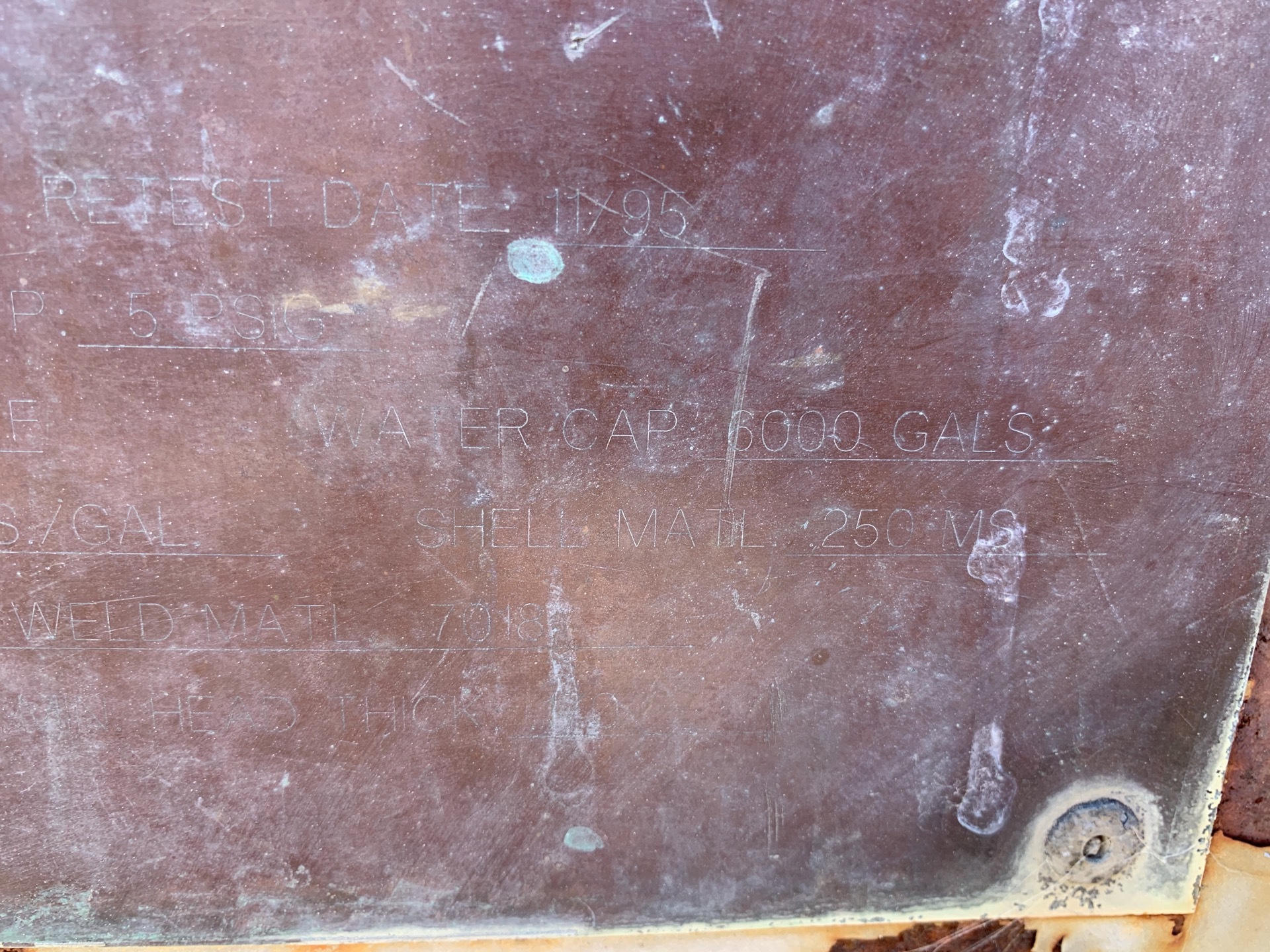

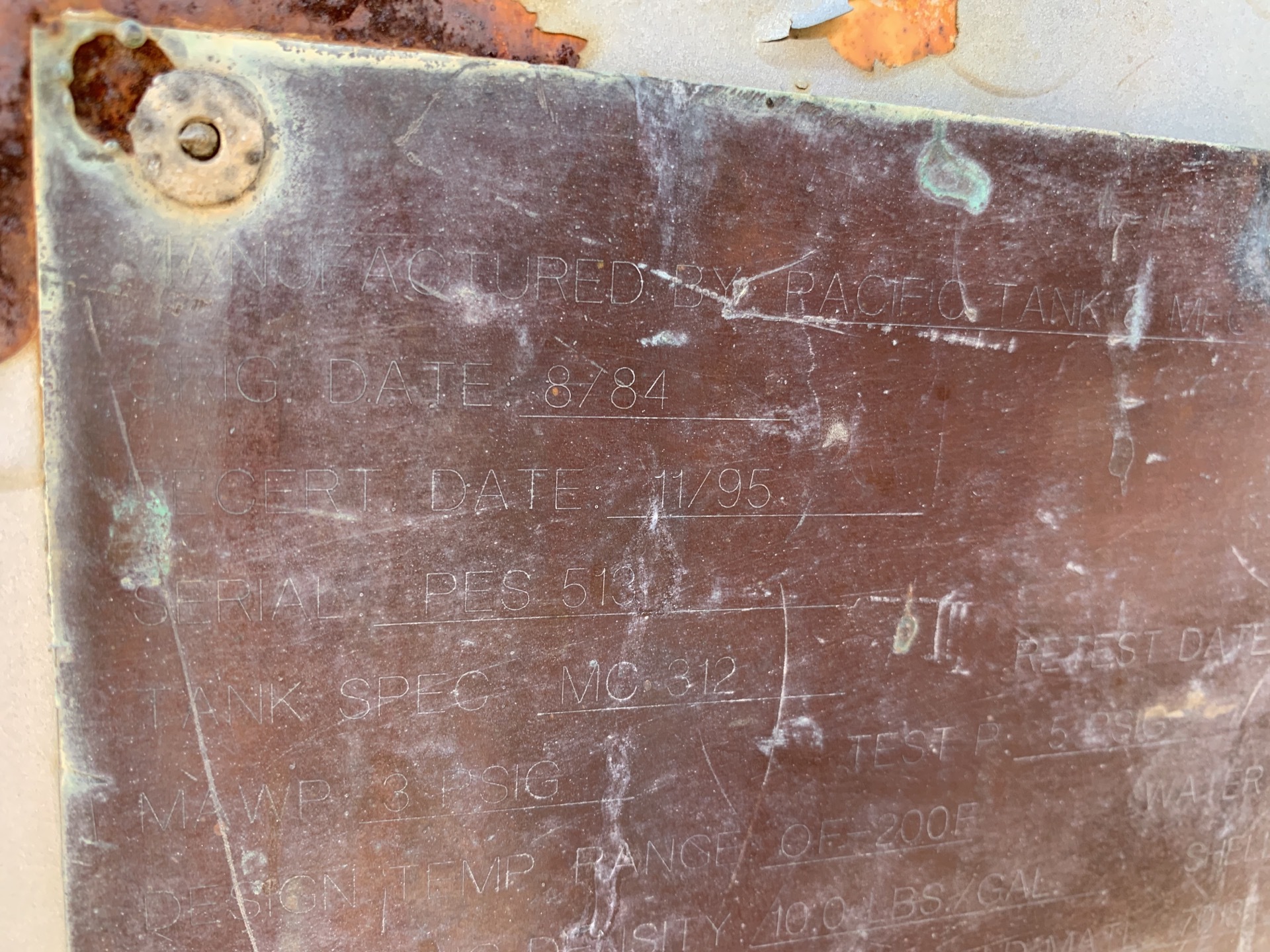

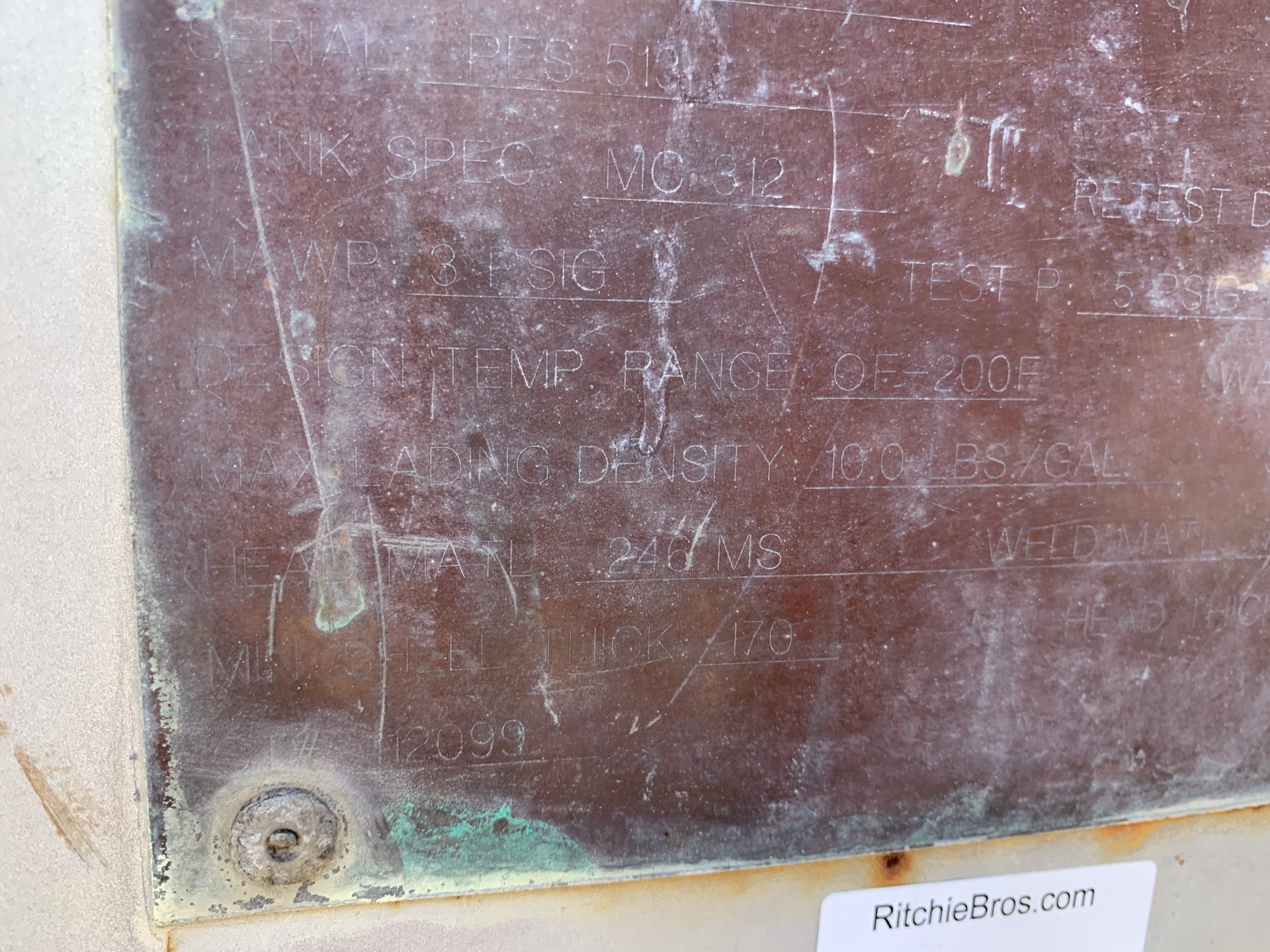

Identification Plate Images
Key Information
- Pic Number
- 792
- Specification
- 312
- Serial Number
- PES 513
- Manufacturer
- Pacific Tank
- MFG Year
- 1984
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 3.0 psi
- Test Pressure
- 5.0 psi
- Head Material
- MS
- Shell Material
- MS
- Weld Material
- 7018
- Total Volume
- 22712 L
- Max Density
- 1.2 kg/L
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.246 | N/A |
| Shell | 0.25 | 0.17 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 22712 | - |
