412 - 1Z925152681258115

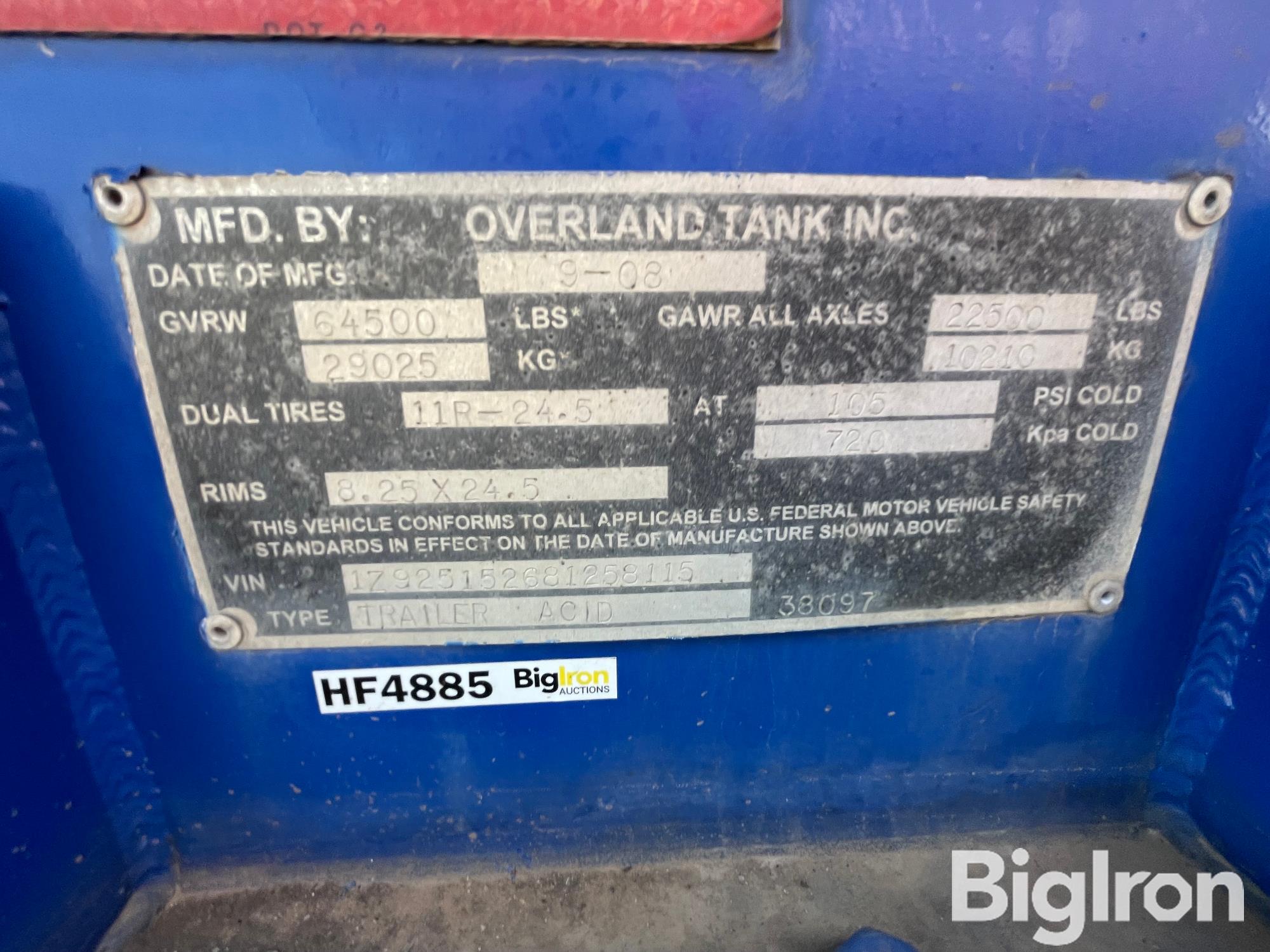

Identification Plate Images
Key Information
- Pic Number
- 799
- Specification
- 412
- Serial Number
- 1Z925152681258115
- Manufacturer
- Overland Tank Inc
- MFG Year
- 2008
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 2
Technical Specifications
- MAWP
- 5.0 psi
- Test Pressure
- 8.0 psi
- Temperature Range
- 0 to 250F
- Head Material
- SA36
- Shell Material
- SA36
- Weld Material
- L-61
- Total Volume
- 18927 L
- Max Payload
- 22680 kg
- Max Density
- 1.2 kg/L
- GVWR
- 64500 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.25 | 0.129 |
| Top Shell | 0.25 | 0.1 |
| Side Shell | 0.25 | 0.1 |
| Bottom Shell | 0.25 | 0.1 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 7571 | - |
| 2 | 11356 | - |
