306 - L1-10538

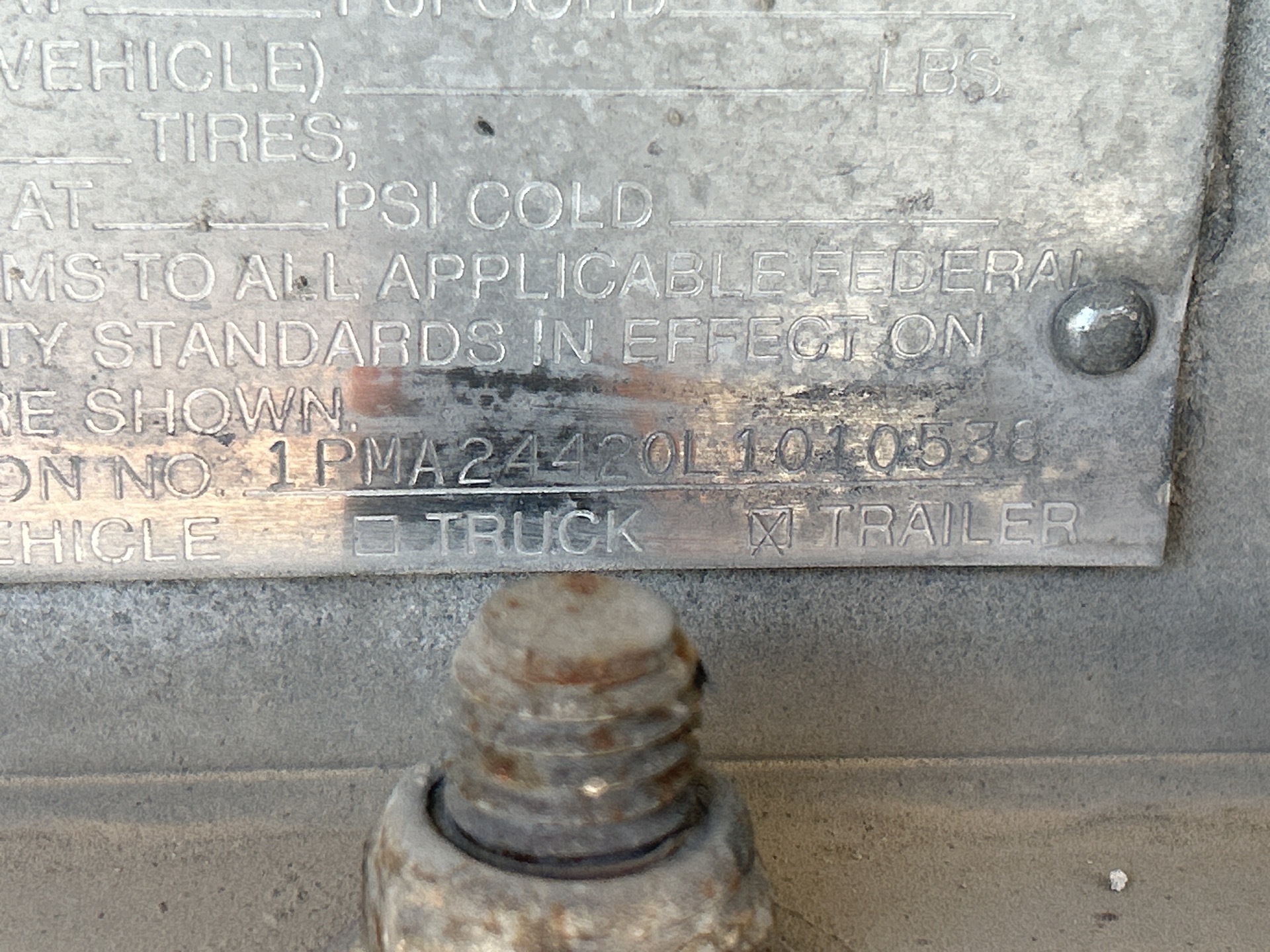

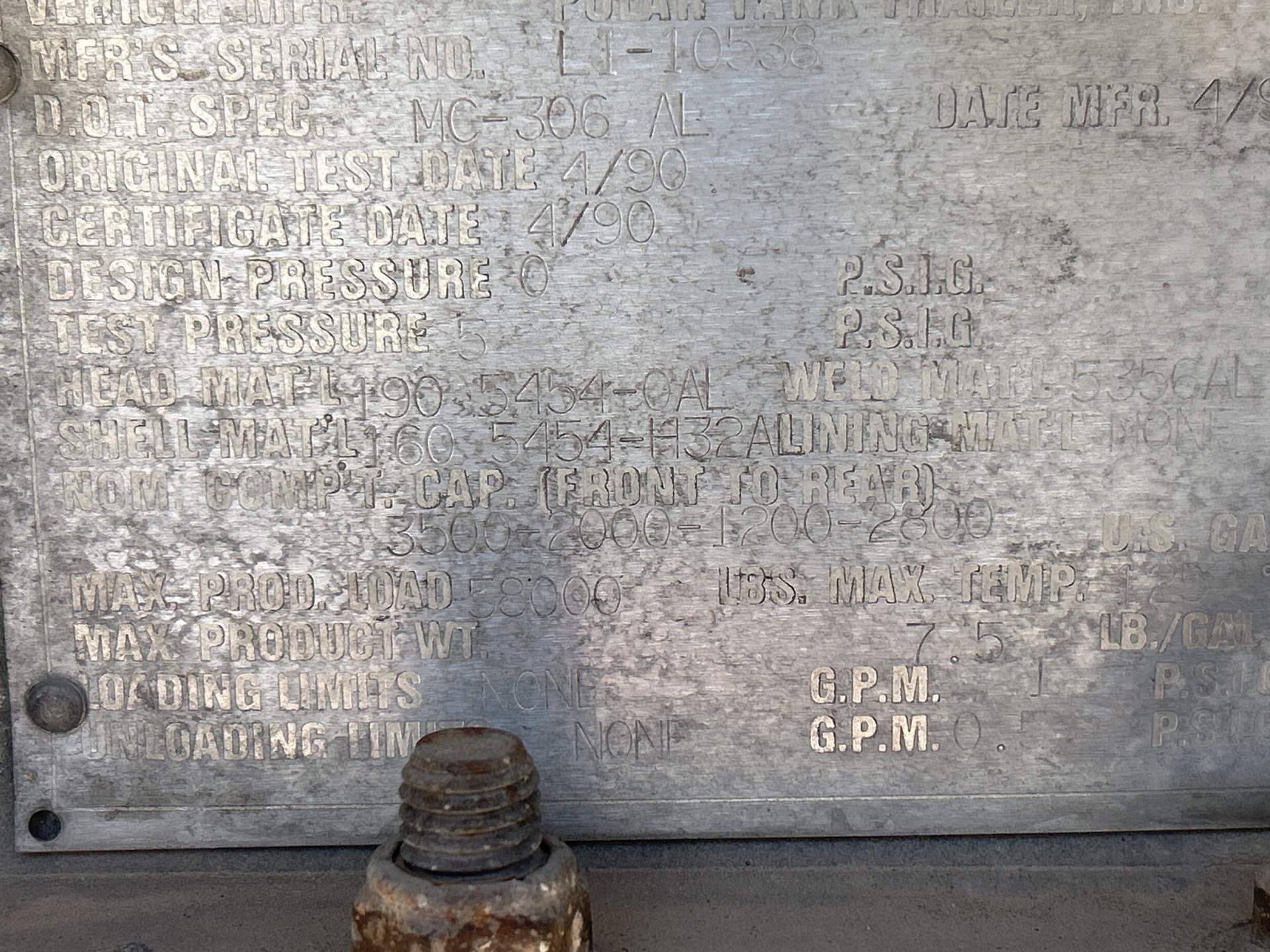

Identification Plate Images
Key Information
- Pic Number
- 805
- Specification
- 306
- Serial Number
- L1-10538
- Manufacturer
- Polar Tank
- MFG Year
- 1990
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 4
Technical Specifications
- Test Pressure
- 5.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 35961 L
- Max Payload
- 26308 kg
- Max Density
- 0.9 kg/L
- GVWR
- 68000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | - | 0.19 |
| Shell | - | 0.16 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 13249 | - |
| 2 | 7571 | - |
| 3 | 4542 | - |
| 4 | 10599 | - |
