407 - R-4728

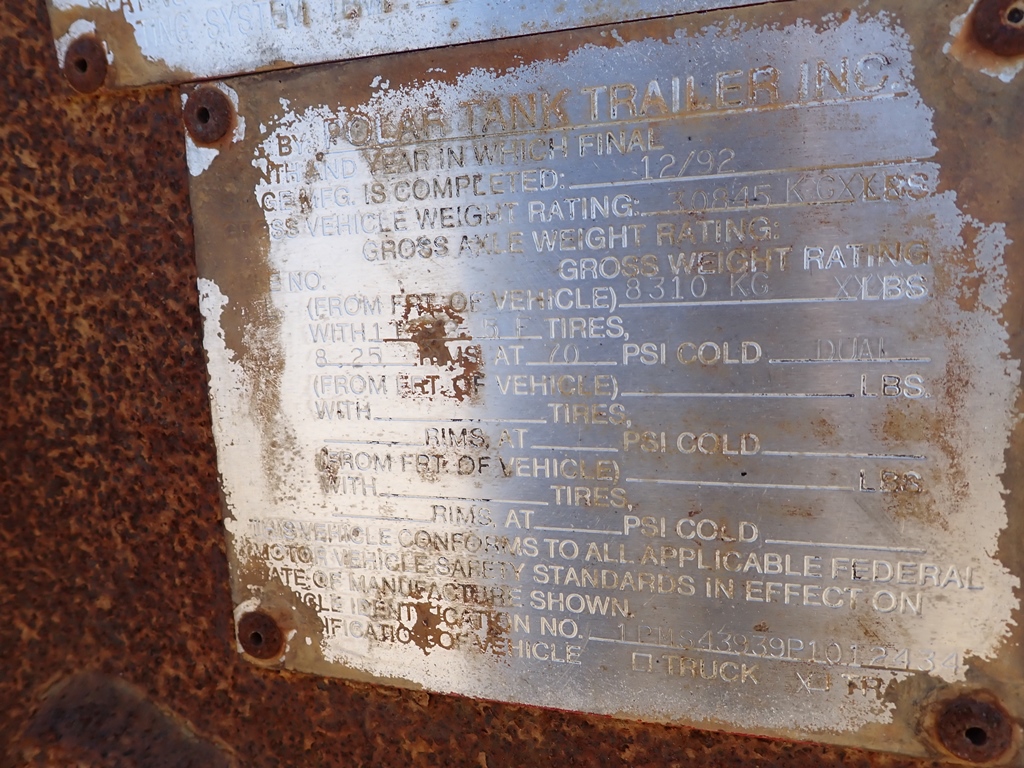

Identification Plate Images
Key Information
- Pic Number
- 810
- Specification
- 407
- Serial Number
- R-4728
- Manufacturer
- Polar Tank
- MFG Year
- 2005
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 35.0 psi
- Test Pressure
- 53.0 psi
- Temperature Range
- -20F to 125F
- Head Material
- T316SS
- Shell Material
- T316SS
- Weld Material
- T316L SS
- Total Volume
- 12870 L
- Max Payload
- 26308 kg
- Max Density
- 1.92 kg/L
- GVWR
- 68000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.25 | 0.148 |
| Top Shell | 0.1874 | 0.115 |
| Side Shell | 0.1874 | 0.115 |
| Bottom Shell | 0.1874 | 0.115 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 12870 | 39.7 |
