407 - CF42490

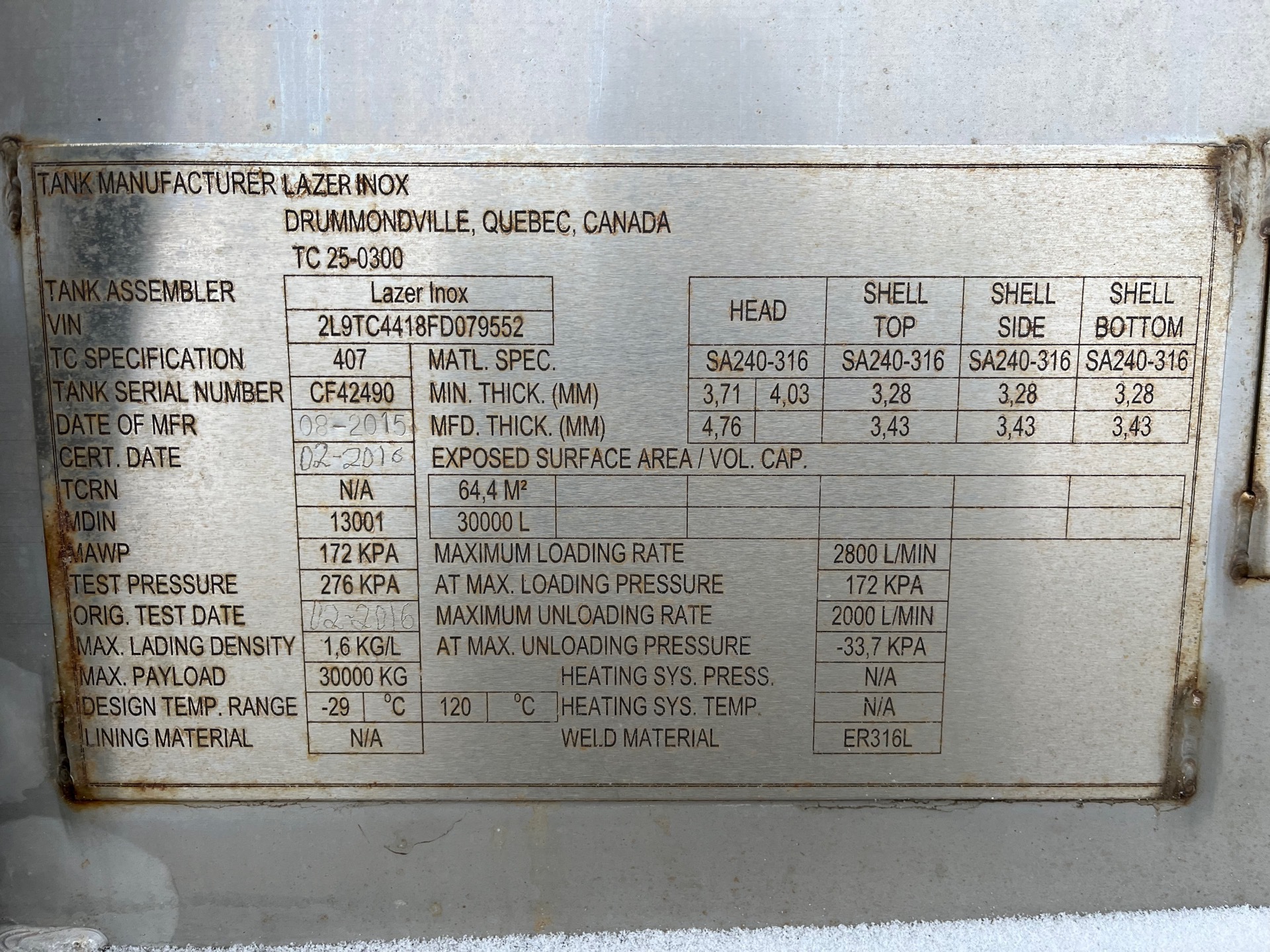

Identification Plate Images
Key Information
- Pic Number
- 855
- Specification
- 407
- Serial Number
- CF42490
- Manufacturer
- Lazer Inox
- MFG Year
- 2015
- Tank Configuration
- Quad Axle Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 40.0 psi
- Temperature Range
- -29C to 120C
- Head Material
- SA240-316
- Shell Material
- SA240-316
- Weld Material
- ER316L
- Total Volume
- 30000 L
- Max Payload
- 30000 kg
- Max Density
- 1.6 kg/L
- GVWR
- 68343 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.187 | 0.146 |
| Top Shell | 0.135 | 0.129 |
| Side Shell | 0.135 | 0.129 |
| Bottom Shell | 0.135 | 0.129 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 30000 | 64.4 |
