407 - 10101

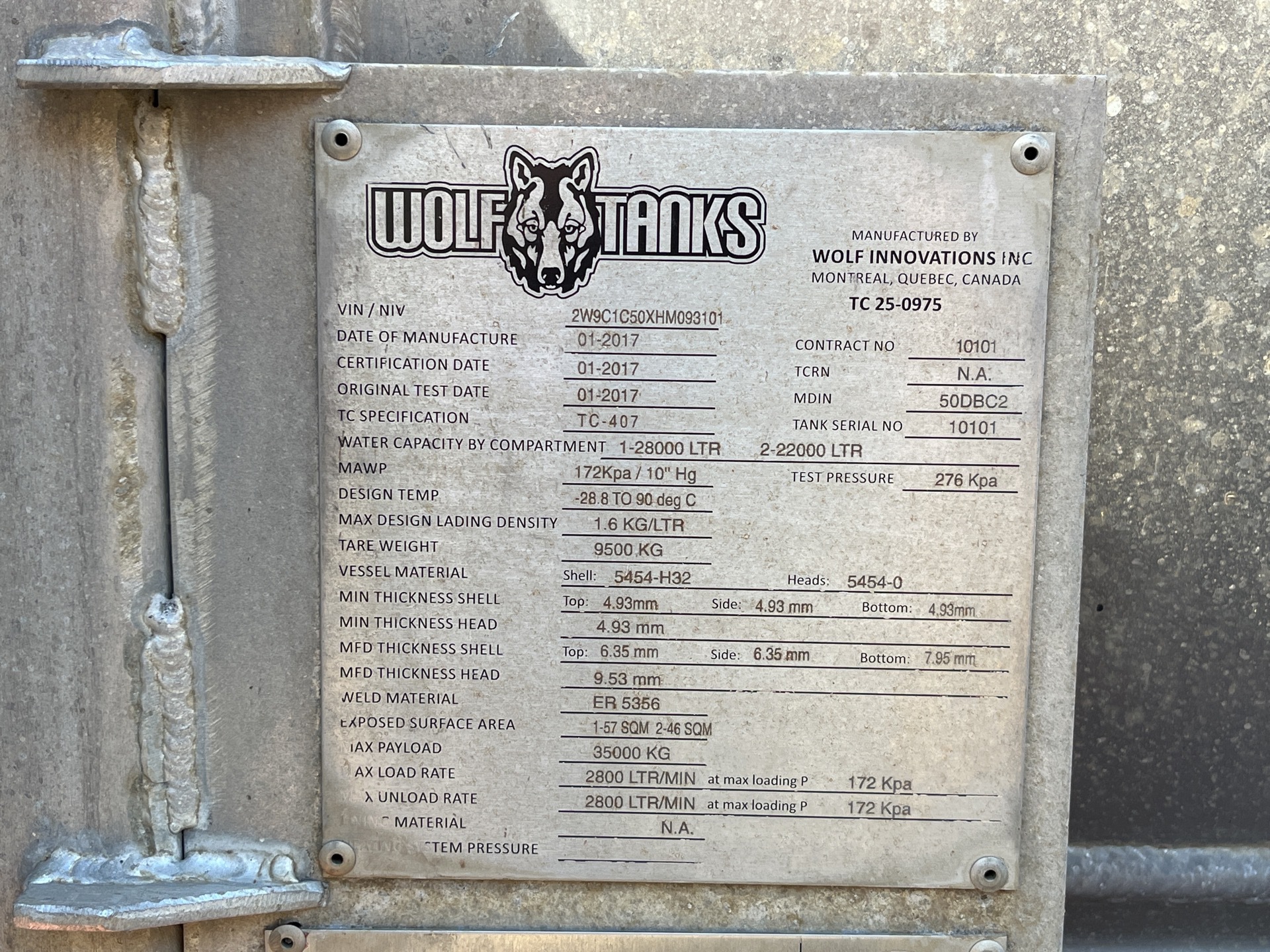

Identification Plate Images
Key Information
- Pic Number
- 863
- Specification
- 407
- Serial Number
- 10101
- Manufacturer
- Wolf Innovations
- MFG Year
- 2017
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 2
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 40.0 psi
- Temperature Range
- -28.8 to 90C
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 50000 L
- Max Payload
- 35000 kg
- Max Density
- 1.6 kg/L
- GVWR
- 105822 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.38 | 0.19 |
| Top Shell | 0.25 | 0.19 |
| Side Shell | 0.25 | 0.19 |
| Bottom Shell | 0.31 | 0.19 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 28000 | 57 |
| 2 | 22000 | 46 |
