406 Crude - 04-7170

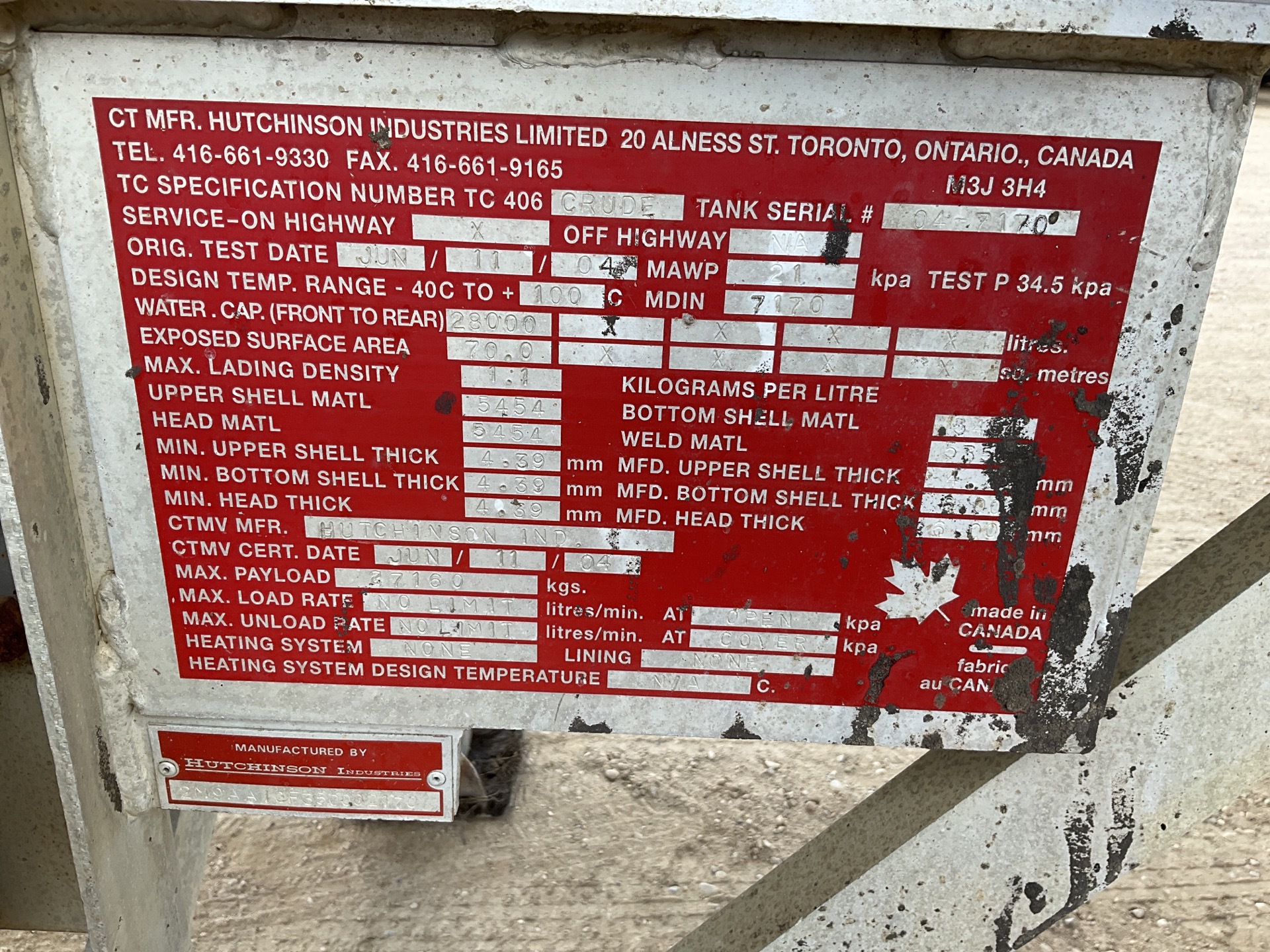

Identification Plate Images
Key Information
- Pic Number
- 878
- Specification
- 406 Crude
- Serial Number
- 04-7170
- Manufacturer
- Hutchinson
- MFG Year
- 2004
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 3.0 psi
- Test Pressure
- 5.0 psi
- Head Material
- 5454
- Shell Material
- 5454
- Weld Material
- 5356
- Total Volume
- 28000 L
- Max Payload
- 27160 kg
- Max Density
- 1.1 kg/L
- GVWR
- 78705 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.24 | 0.17 |
| Top Shell | 0.19 | 0.17 |
| Bottom Shell | 0.24 | 0.17 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 28000 | 70 |
