406 Crude - 4CAT2061M52161074

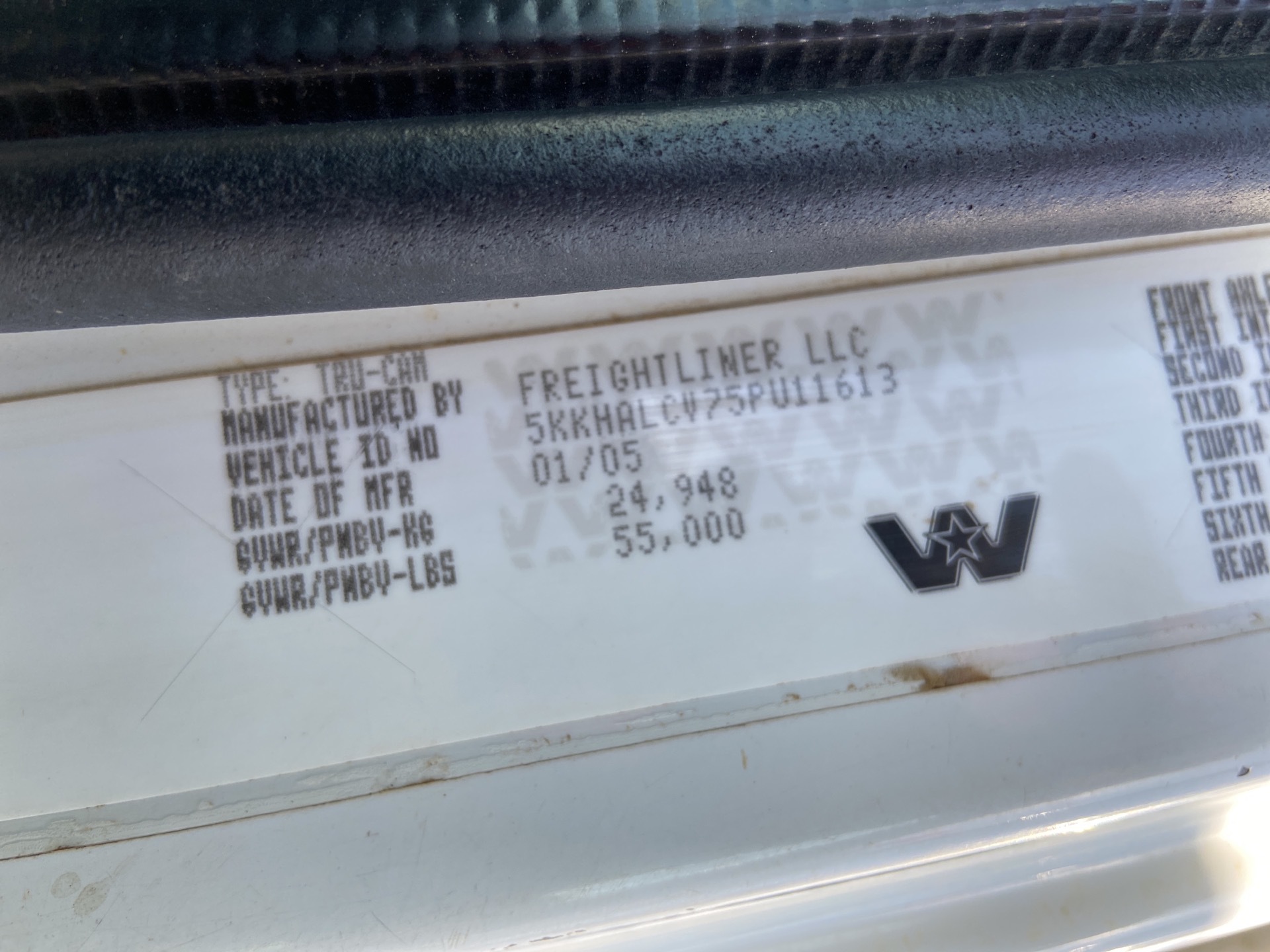

Identification Plate Images
Key Information
- Pic Number
- 880
- Specification
- 406 Crude
- Serial Number
- 4CAT2061M52161074
- Manufacturer
- Hamms
- MFG Year
- 2005
- Tank Configuration
- Tandem Axle Tank Truck
- # of Compartments
- 1
Technical Specifications
- MAWP
- 3.0 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -29C to 38C
- Head Material
- A1011
- Shell Material
- A36/A1011
- Weld Material
- E70S-6
- Total Volume
- 16670 L
- Max Payload
- 14386 kg
- Max Density
- 0.86 kg/L
- GVWR
- 55001 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.13 | 0.11 |
| Top Shell | 0.13 | 0.11 |
| Side Shell | 0.13 | 0.11 |
| Bottom Shell | 0.19 | 0.11 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 16670 | 41.2 |
