406 Crude - 5HTAB4037D7J76939

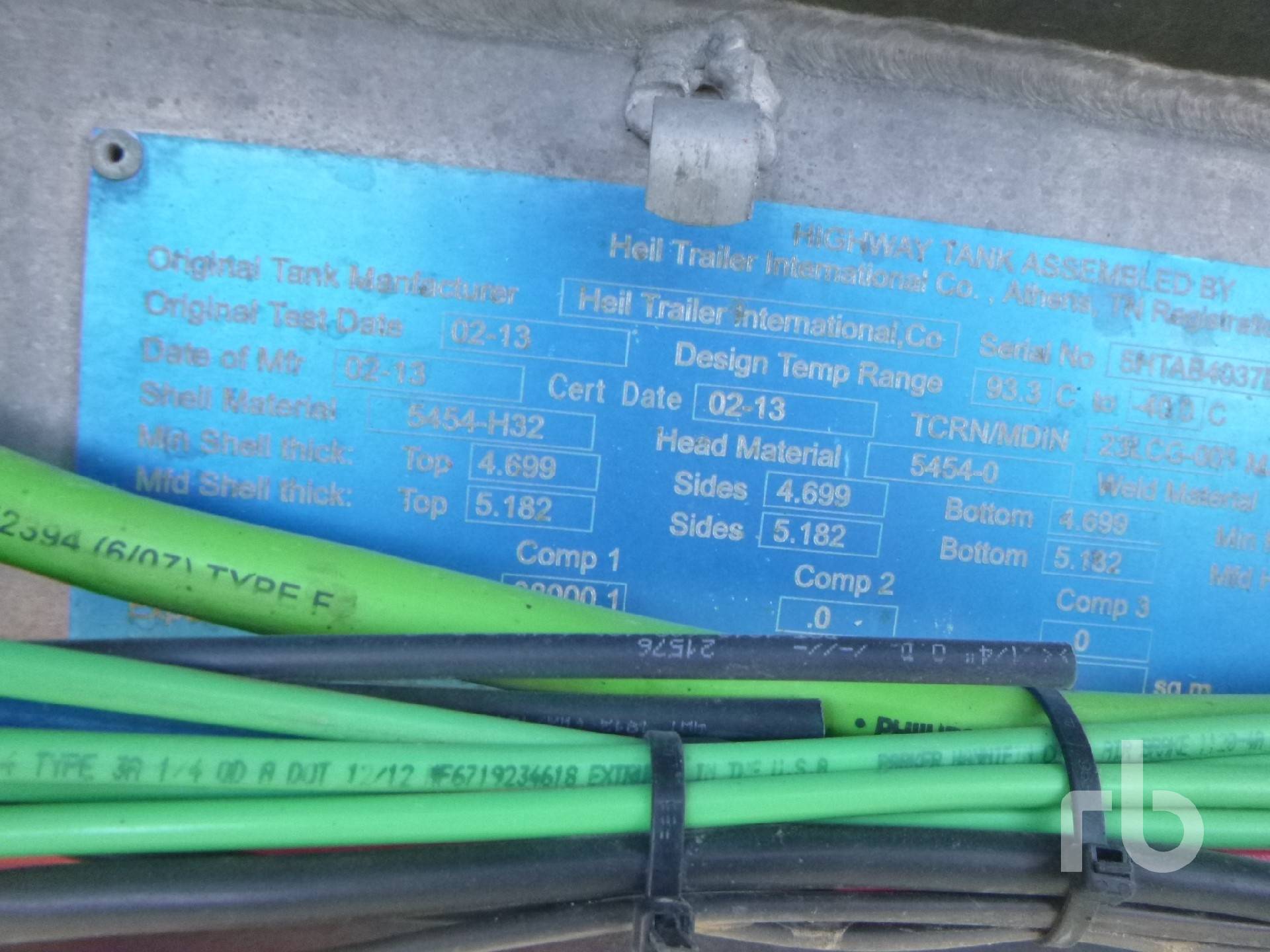

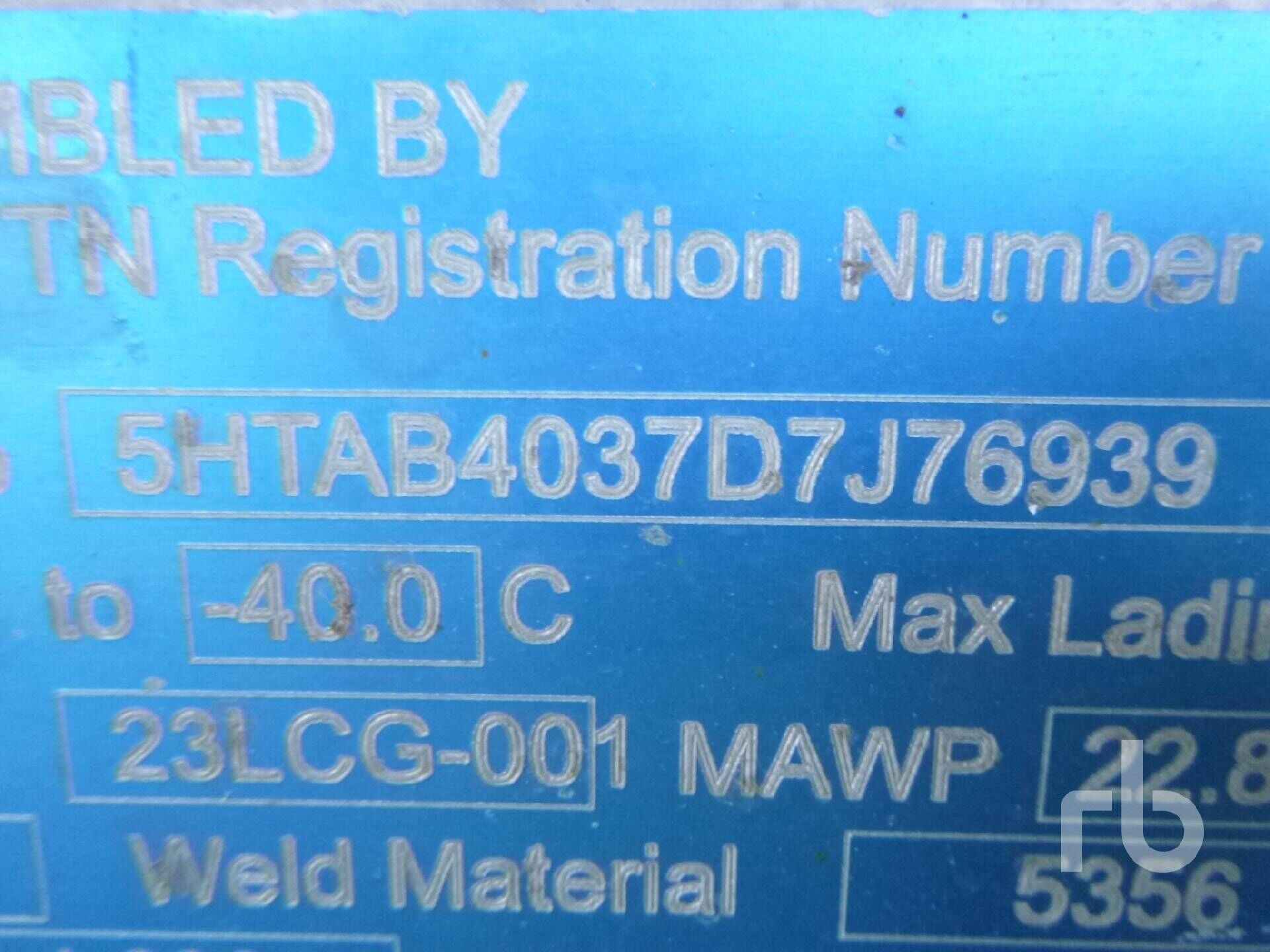

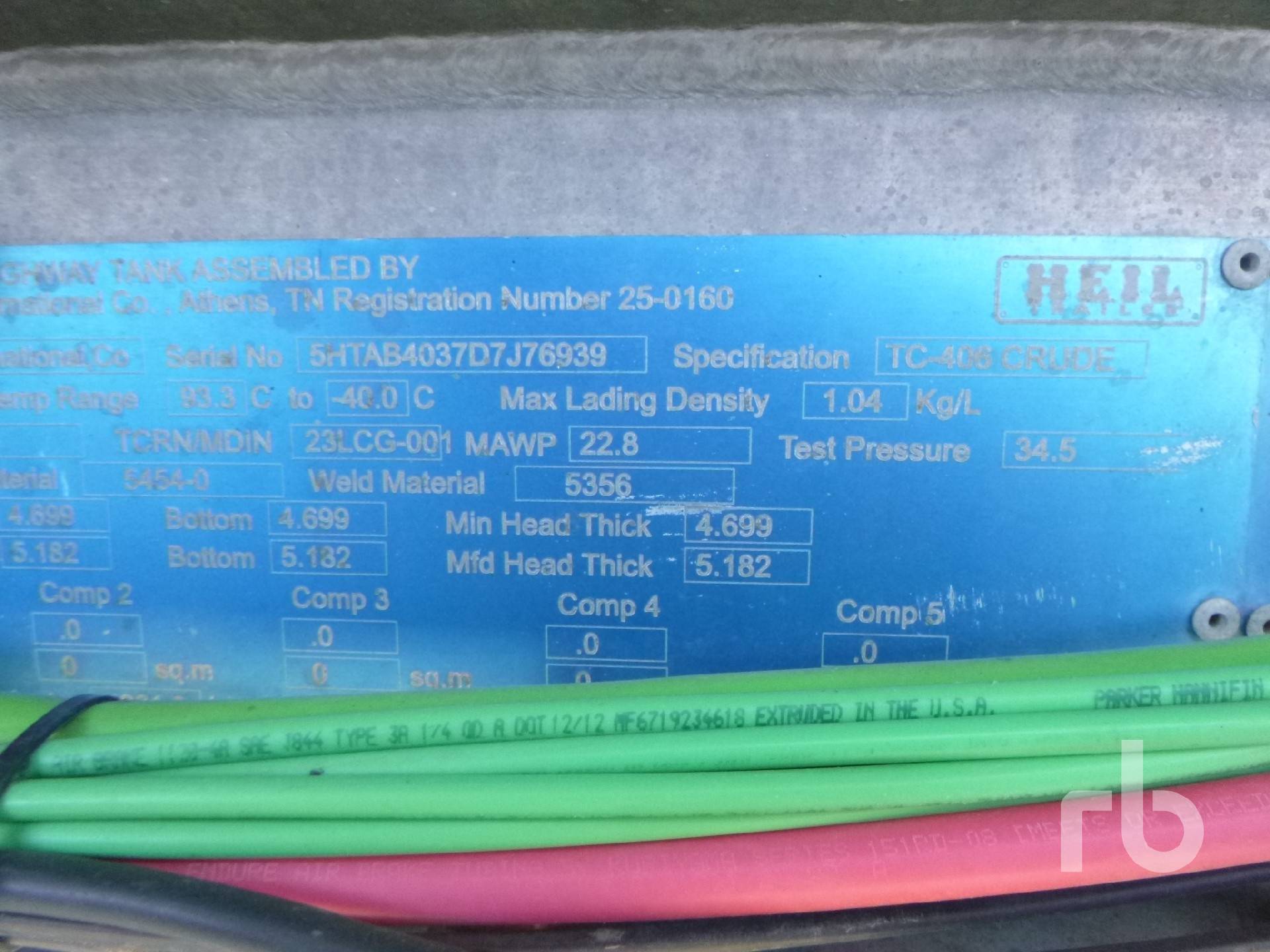

Identification Plate Images
Key Information
- Pic Number
- 905
- Specification
- 406 Crude
- Serial Number
- 5HTAB4037D7J76939
- Manufacturer
- Heil
- MFG Year
- 2013
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -40 to 93.3C
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 38000 L
- Max Density
- 1.04 kg/L
- GVWR
- 83001 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.2 | 0.19 |
| Top Shell | 0.2 | 0.19 |
| Side Shell | 0.2 | 0.19 |
| Bottom Shell | 0.2 | 0.19 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 38000 | - |
