406 - 10BEA92Z77F0B7738

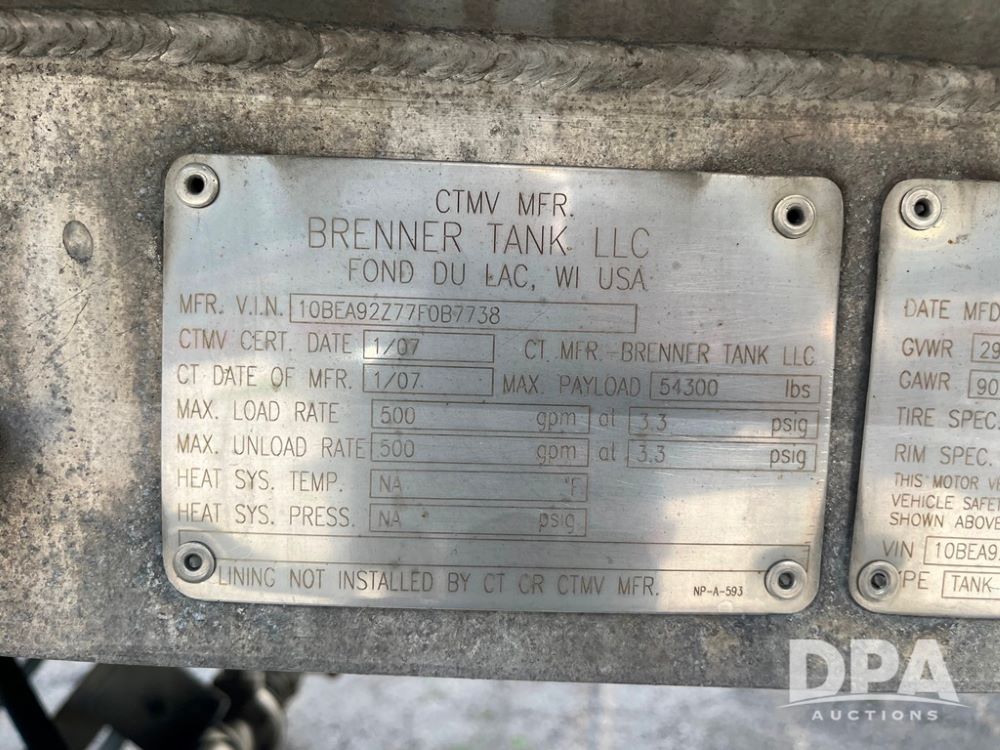

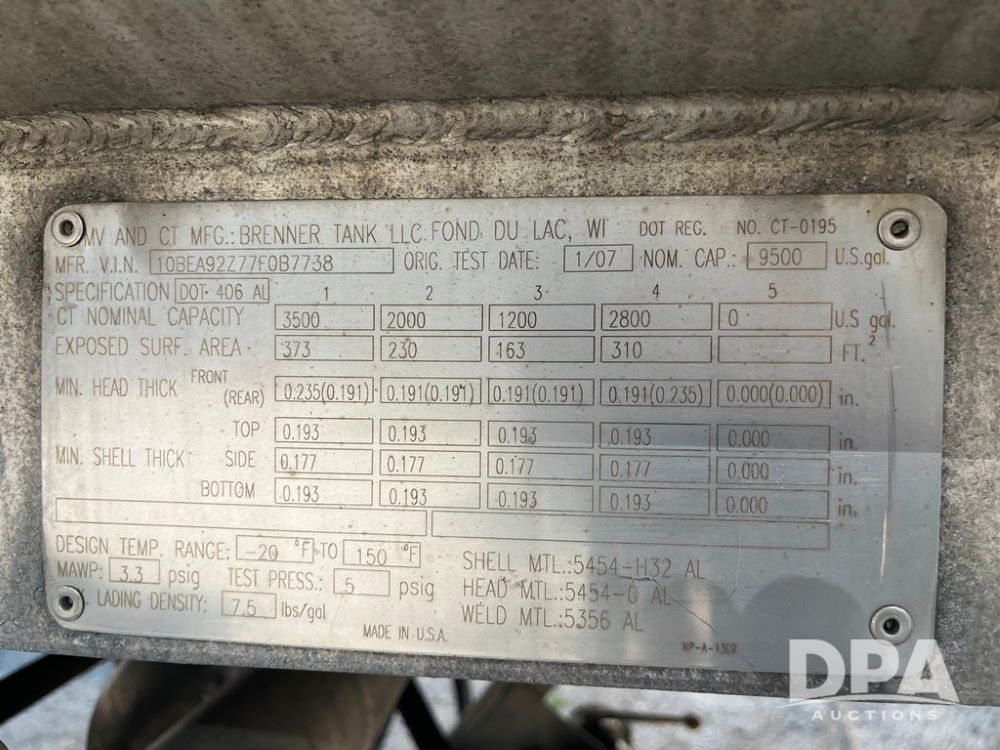

Identification Plate Images
Key Information
- Pic Number
- 935
- Specification
- 406
- Serial Number
- 10BEA92Z77F0B7738
- Manufacturer
- Brenner
- MFG Year
- 2007
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 4
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -20F to 150F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Max Payload
- 24630 kg
- Max Density
- 0.9 kg/L
- GVWR
- 65000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | - | 0.235 |
| Top Shell | - | 0.193 |
| Side Shell | - | 0.177 |
| Bottom Shell | - | 0.193 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 13249 | 34.7 |
| 2 | 7571 | 21.4 |
| 3 | 4542 | 15.1 |
| 4 | 10599 | 28.8 |
