406 - 08Y2002031

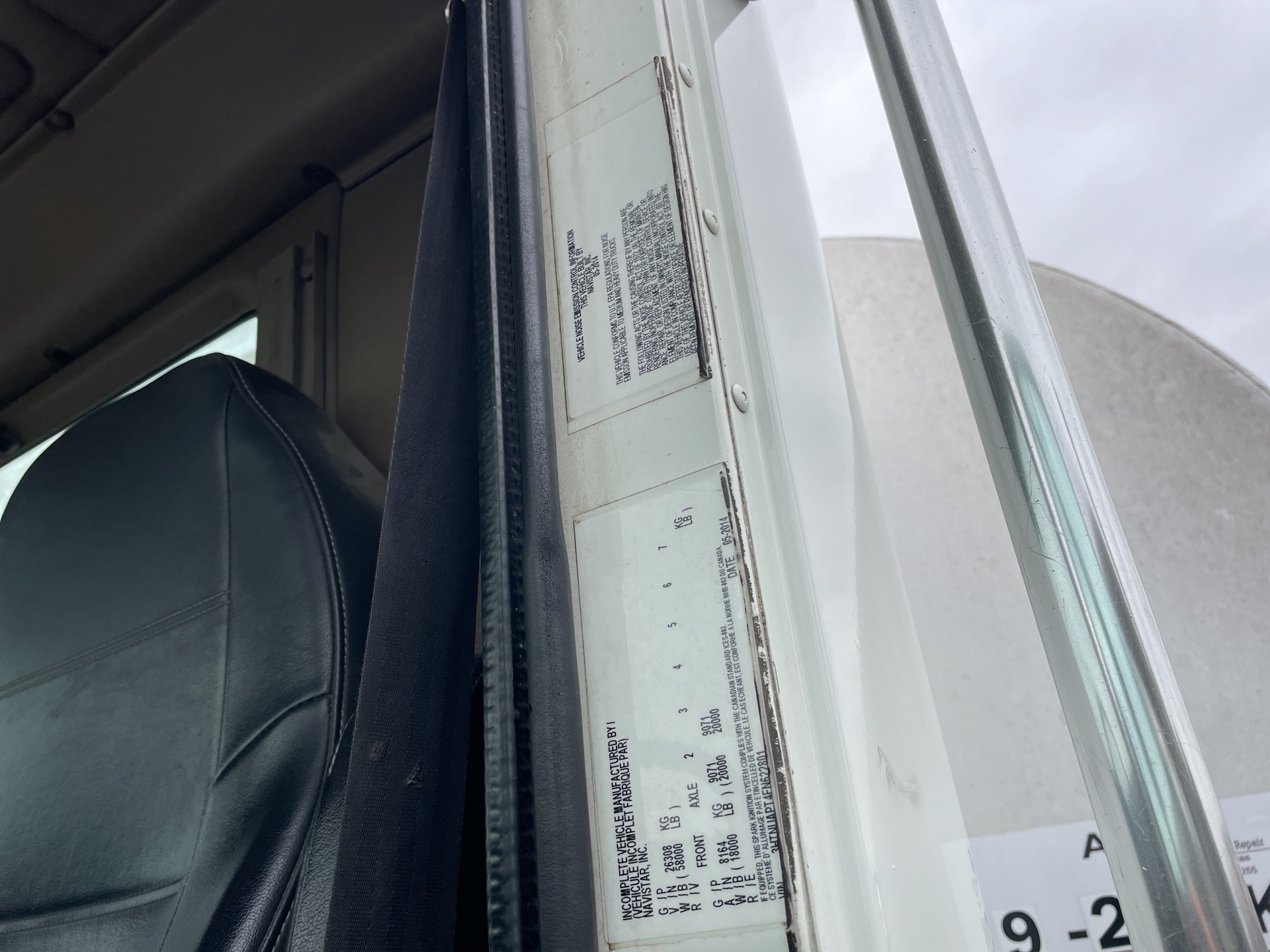

Identification Plate Images
Key Information
- Pic Number
- 936
- Specification
- 406
- Serial Number
- 08Y2002031
- Manufacturer
- Youngs Tank
- MFG Year
- 2000
- Tank Configuration
- Tandem Axle Tank Truck
- # of Compartments
- 4
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -20F to 160F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Max Payload
- 13608 kg
- Max Density
- 0.9 kg/L
- GVWR
- 58000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.225 | 0.188 |
| Top Shell | 0.19 | 0.172 |
| Side Shell | 0.19 | 0.172 |
| Bottom Shell | 0.25 | 0.172 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 7609 | 18.7 |
| 2 | 5678 | 12.2 |
| 3 | 3785 | 8.1 |
| 4 | 1893 | 7.6 |
