406 - E5-12954

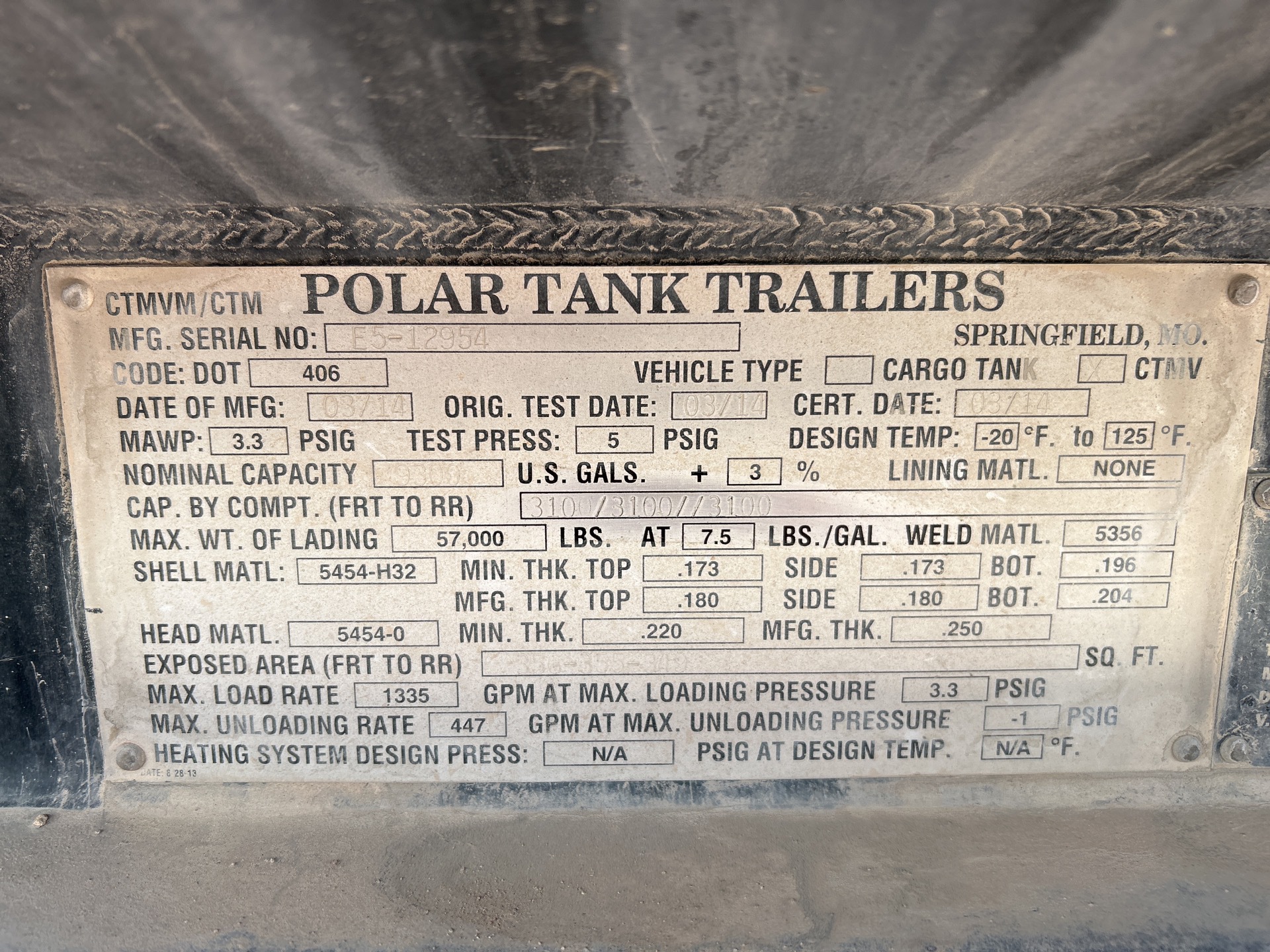

Identification Plate Images
Key Information
- Pic Number
- 937
- Specification
- 406
- Serial Number
- E5-12954
- Manufacturer
- Polar Tank
- MFG Year
- 2014
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 3
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -20F to 125F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Max Payload
- 25855 kg
- Max Density
- 0.9 kg/L
- GVWR
- 66000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.25 | 0.22 |
| Top Shell | 0.18 | 0.173 |
| Side Shell | 0.18 | 0.173 |
| Bottom Shell | 0.204 | 0.196 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 11735 | 33.1 |
| 2 | 11735 | 33 |
| 3 | 11735 | 32.4 |
