406 - E5-12814

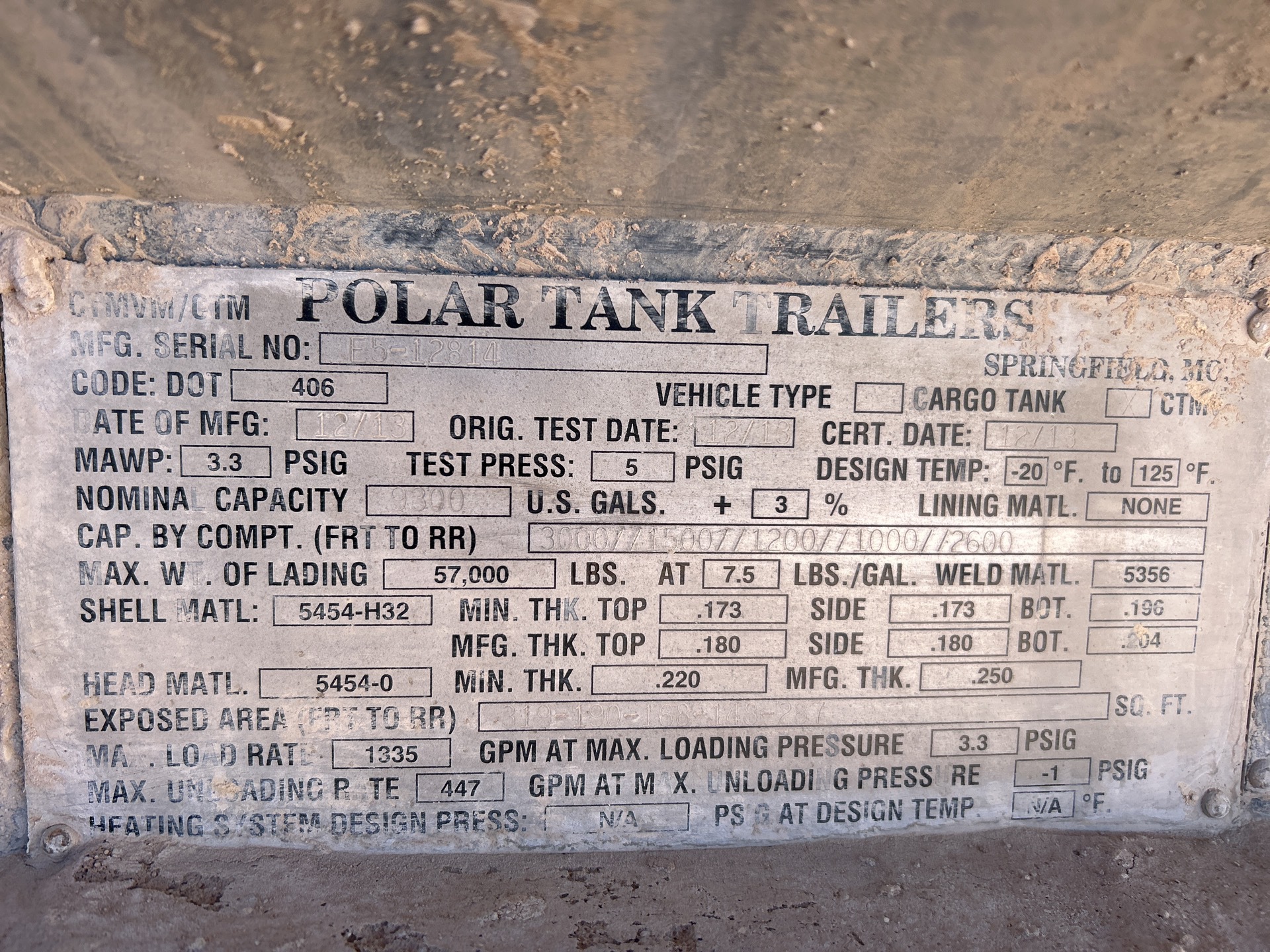

Identification Plate Images
Key Information
- Pic Number
- 938
- Specification
- 406
- Serial Number
- E5-12814
- Manufacturer
- Polar Tank
- MFG Year
- 2013
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 5
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -20F to 125F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Max Payload
- 25855 kg
- Max Density
- 0.9 kg/L
- GVWR
- 66000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.25 | 0.22 |
| Top Shell | 0.18 | 0.173 |
| Side Shell | 0.18 | 0.173 |
| Bottom Shell | 0.204 | 0.196 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 11356 | 29.6 |
| 2 | 5678 | 17.7 |
| 3 | 4542 | 15.6 |
| 4 | 3785 | 13.7 |
| 5 | 9842 | 26.7 |
