407 - 72329

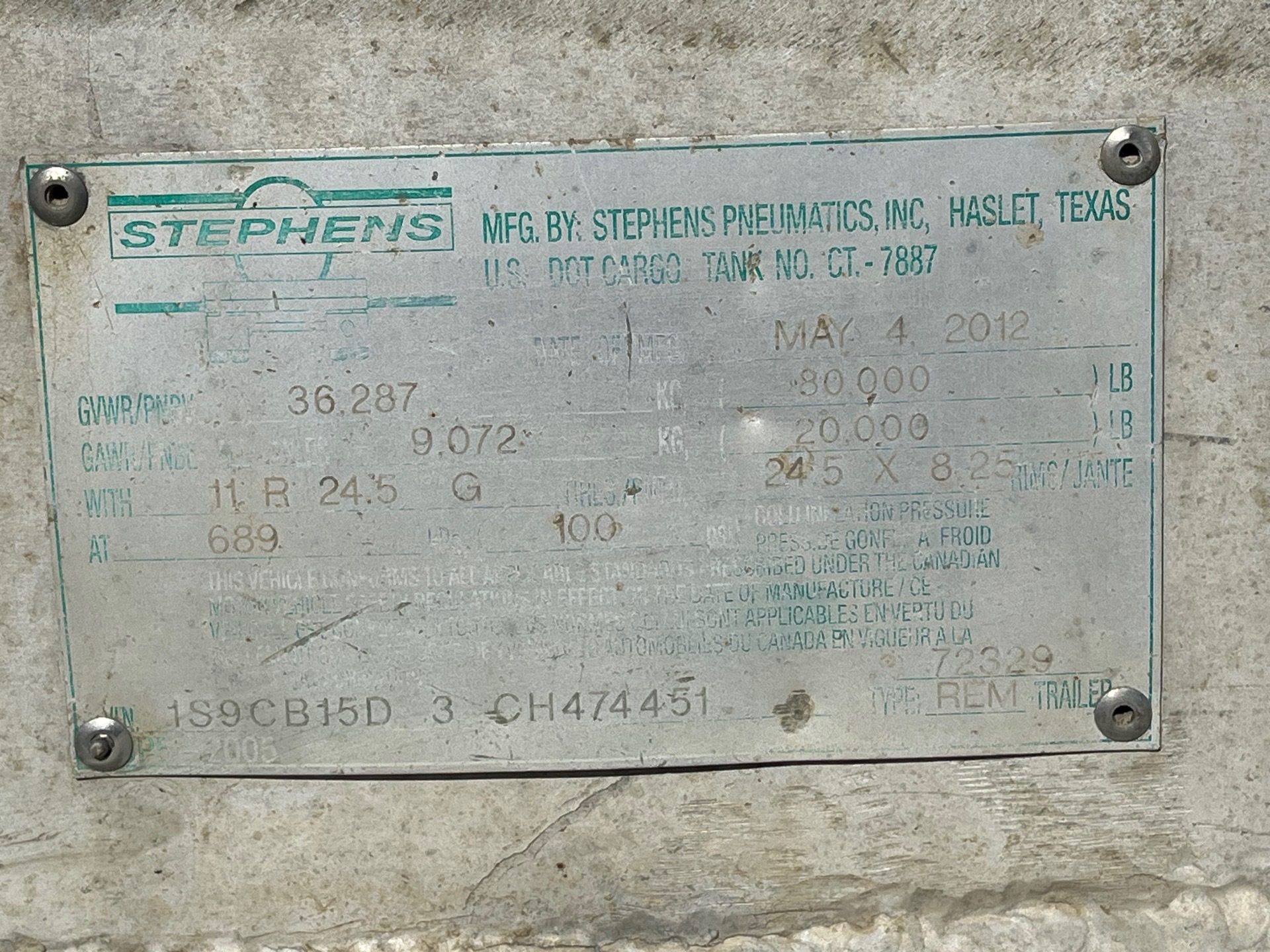

Identification Plate Images
Key Information
- Pic Number
- 939
- Specification
- 407
- Serial Number
- 72329
- Manufacturer
- Stephens Pneumatics
- MFG Year
- 2012
- Tank Configuration
- Quad Axle Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 40.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Max Payload
- 29484 kg
- Max Density
- 0.85 kg/L
- GVWR
- 80000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.313 | 0.27 |
| Top Shell | 0.25 | 0.205 |
| Side Shell | 0.25 | 0.205 |
| Bottom Shell | 0.25 | 0.205 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 31797 | 68.4 |
