406 - 5HTAB442/9/17H63983

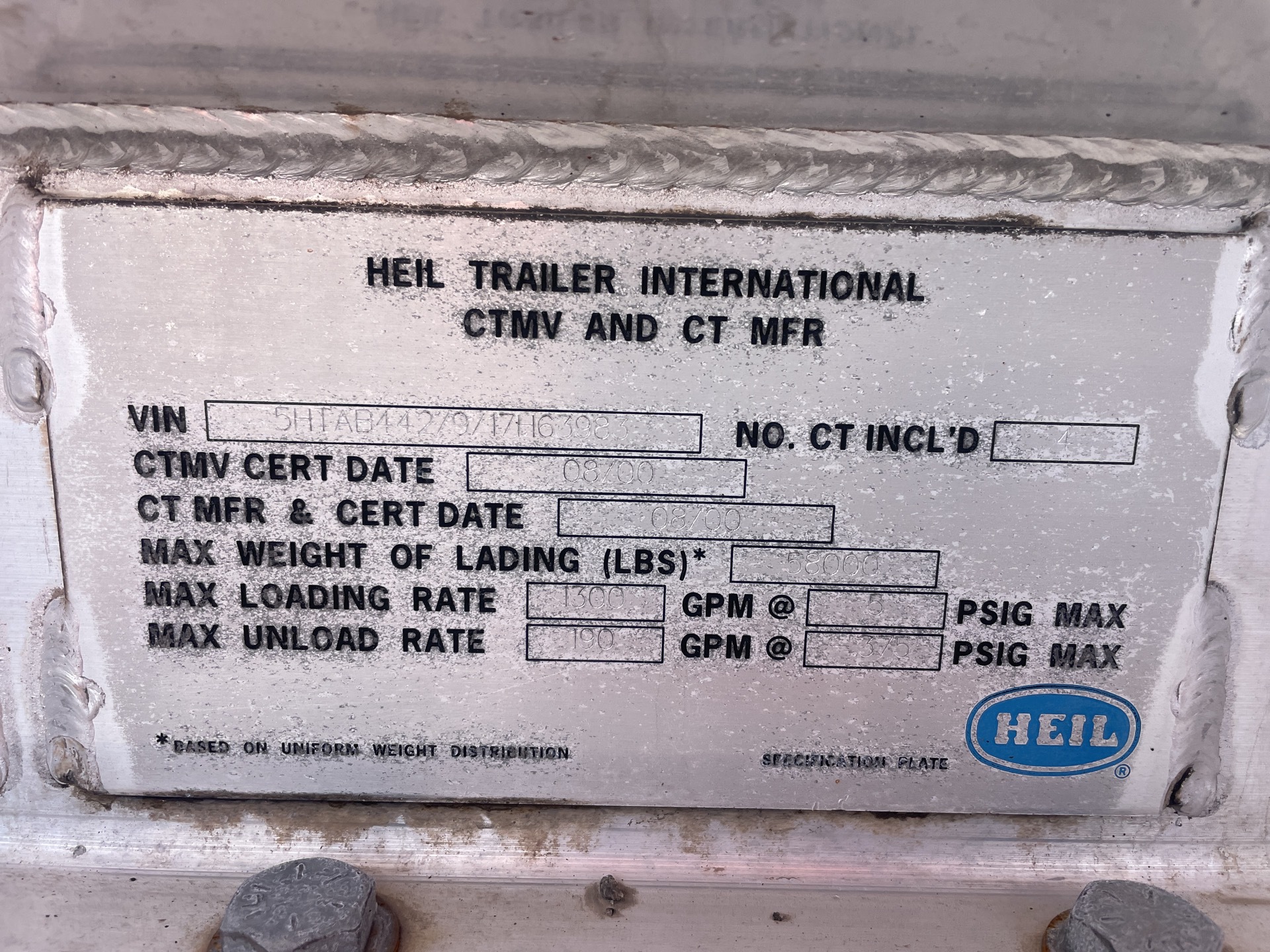

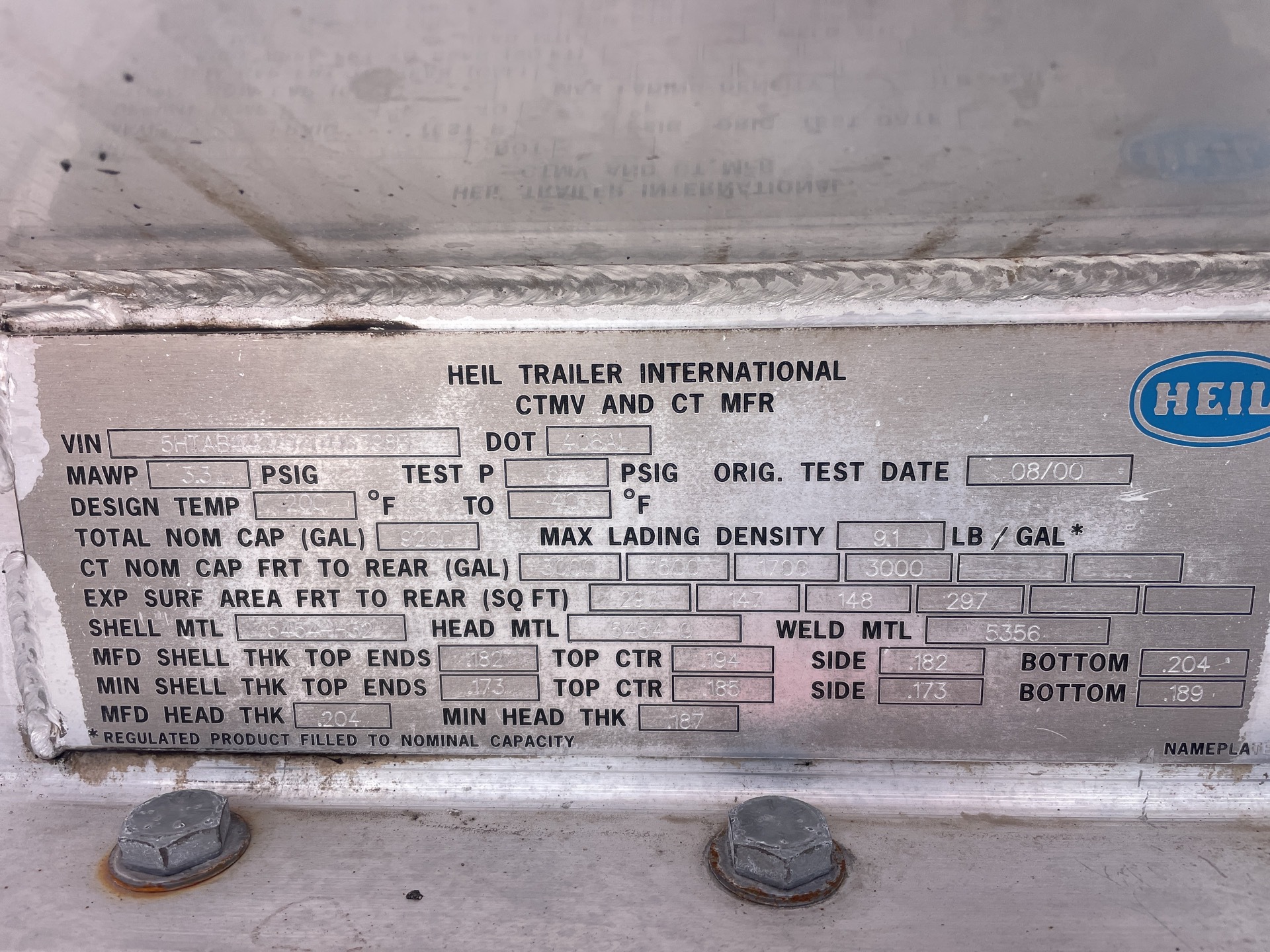

Identification Plate Images
Key Information
- Pic Number
- 949
- Specification
- 406
- Serial Number
- 5HTAB442/9/17H63983
- Manufacturer
- Heil
- MFG Year
- 2000
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 4
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Max Payload
- 26308 kg
- Max Density
- 1.09 kg/L
- GVWR
- 68000 lbs
Component Thickness Details
| Component | Manufactured Thickness (inches) | Minimum Thickness (inches) |
|---|---|---|
| Head | 0.204 | 0.187 |
| Top Shell | 0.182 | 0.173 |
| Side Shell | 0.182 | 0.173 |
| Bottom Shell | 0.204 | 0.189 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (sq.m) |
|---|---|---|
| 1 | 11356 | 27.6 |
| 2 | 5678 | 13.7 |
| 3 | 6435 | 13.7 |
| 4 | 11356 | 27.6 |
