Metal ID Plate
407 - 14594 - Tremcar

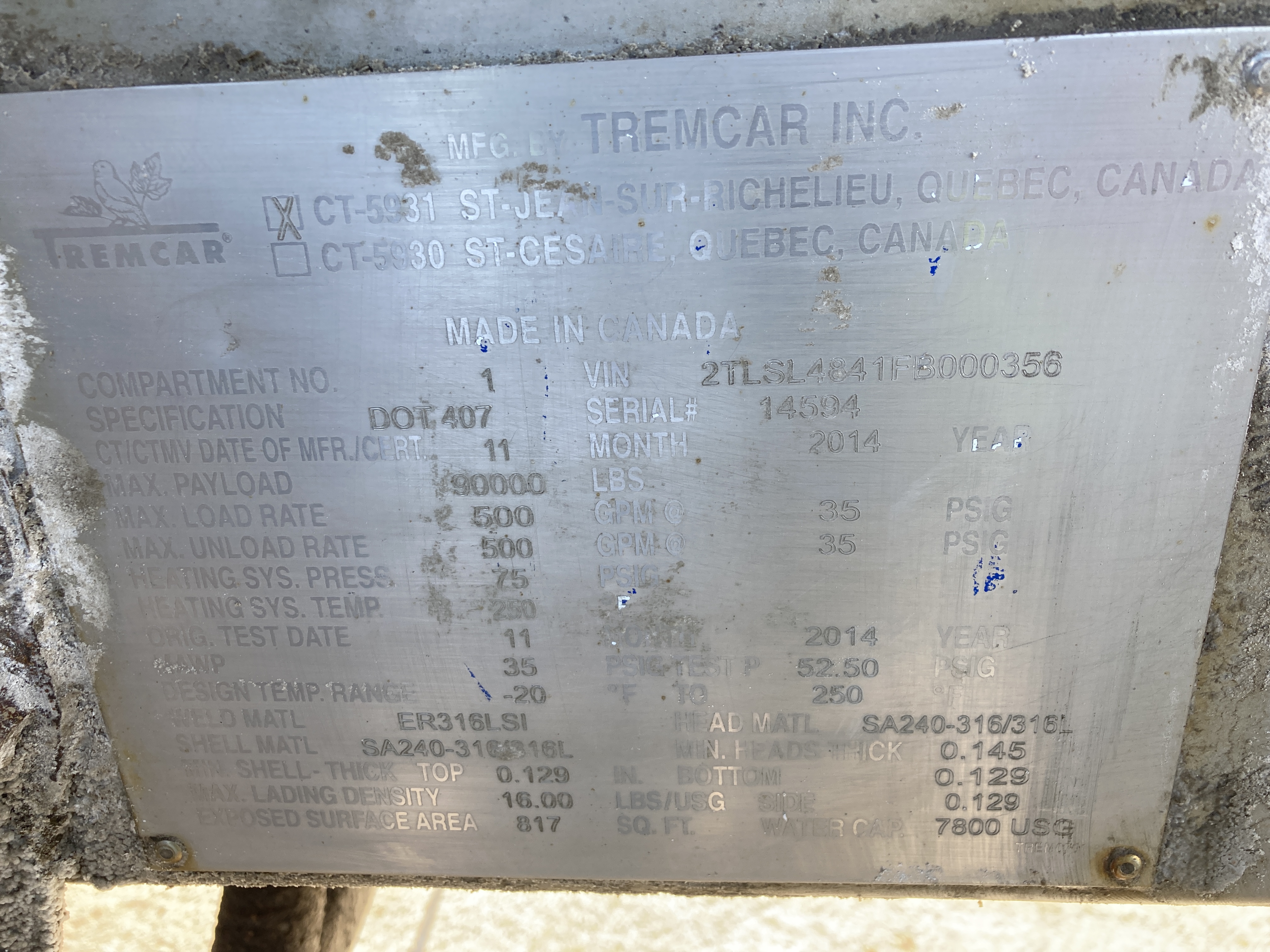

Identification Plate Images
Key Information
Technical Specifications
- MAWP
- 35.0 psi
- Test Pressure
- 52.5 psi
- Temperature Range
- -29 to 121
- Head Material
- SA-240 316/316L
- Shell Material
- SA-240 316/316L
- Weld Material
- ER316LSI
- Total Volume
- 29525 L
- Max Payload
- 40824 kg
- Max Density
- 1.92 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | - | 0.145 |
| Top Shell | - | 0.129 |
| Side Shell | - | 0.129 |
| Bottom Shell | - | 0.129 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 29525 | 76.0 |
