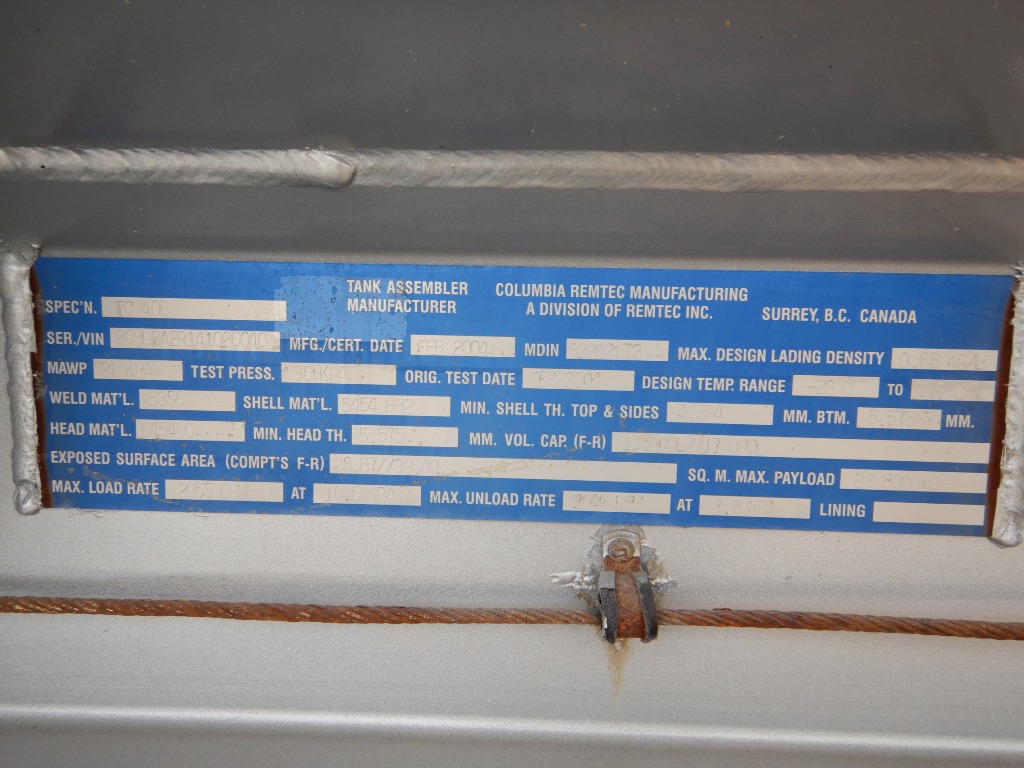

Metal ID Plate
406 - 209LBA2R141026040 - Columbia Remtec
Identification Plate Images
Key Information
- Pic Number
- 129
- Specification
- 406
- Serial Number
- 209LBA2R141026040
- Manufacturer
- Columbia Remtec
- Assembler
- Columbia Remtec
- MFG Year
- 2004
Technical Specifications
- MAWP
- 3.0 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -28 to 71
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 28500 L
- Max Payload
- 23800 kg
- Max Density
- 0.85 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | - | 0.2194882 |
| Top Shell | - | 0.1729921 |
| Side Shell | - | 0.1729921 |
| Bottom Shell | - | 0.2194882 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 11500 | 28.9 |
| 2 | 17000 | 39.5 |
