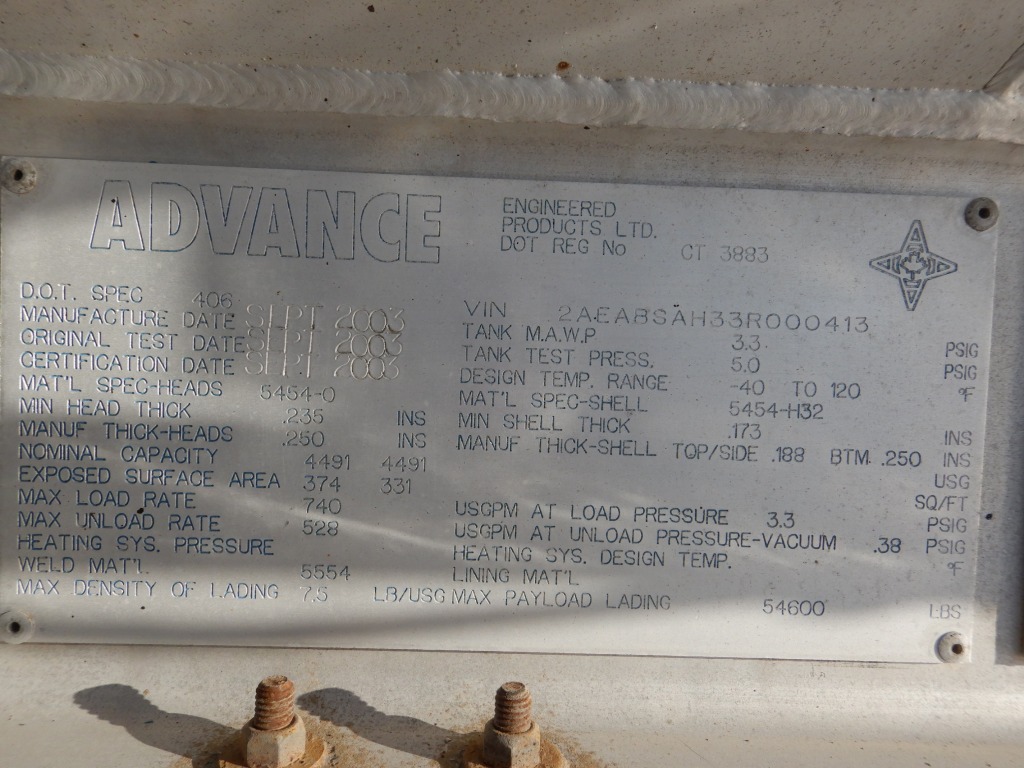

Metal ID Plate
406 - 2AEABSAH33R000413 - Advance
Identification Plate Images
Key Information
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -40 to 120F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5554
- Total Volume
- 34000 L
- Max Payload
- 24766 kg
- Max Density
- 0.90 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.25 | 0.235 |
| Top Shell | 0.188 | 0.173 |
| Side Shell | 0.188 | 0.173 |
| Bottom Shell | 0.25 | 0.173 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 17000 | 34.7 |
| 2 | 17000 | 30.8 |
