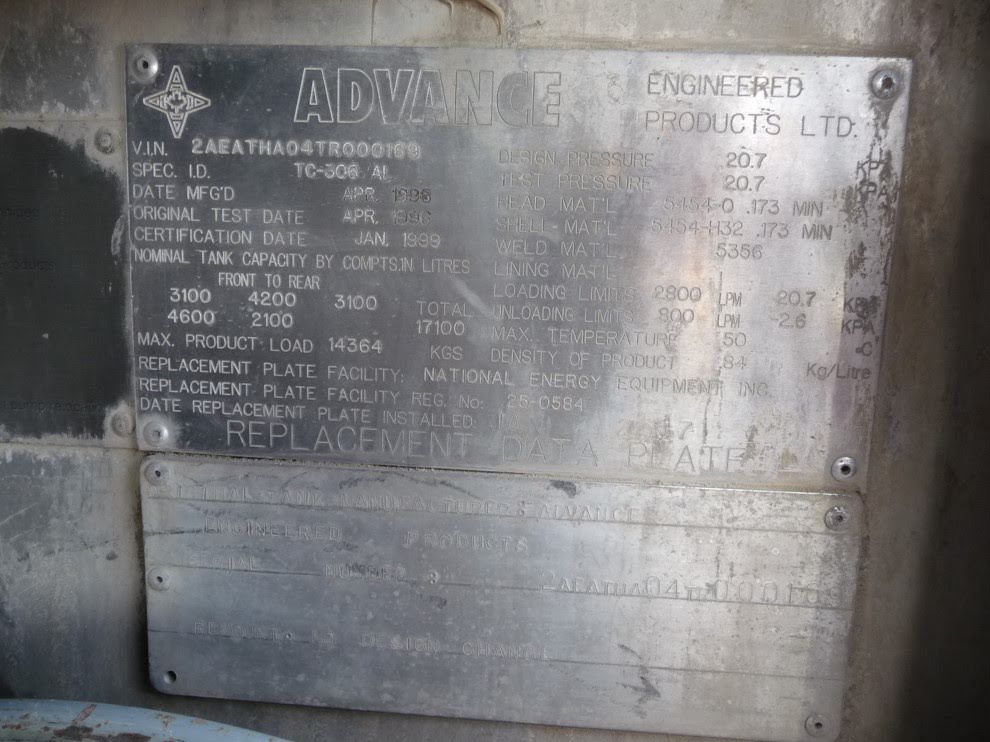

Metal ID Plate
306 - 2AEATHA04TR000169 - Advance
Identification Plate Images
Key Information
Technical Specifications
- Design Pressure
- 3.0 psi
- Test Pressure
- 3.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 17100 L
- Max Payload
- 31667 kg
- Max Density
- 0.84 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | - | 0.173 |
| Shell | - | 0.173 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 3100 | - |
| 2 | 4200 | - |
| 3 | 3100 | - |
| 4 | 4600 | - |
| 5 | 2100 | - |
