Metal ID Plate
406 - 8TT025904 - LBT

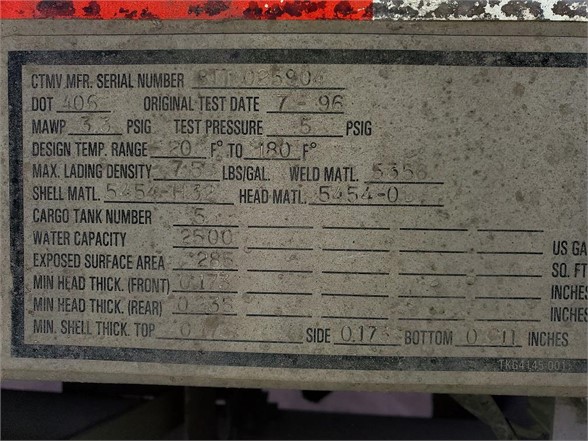

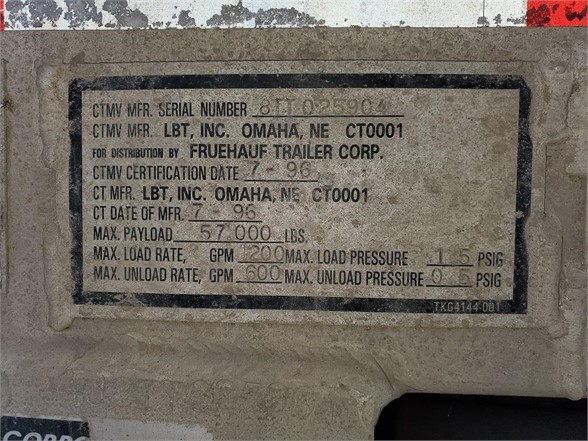

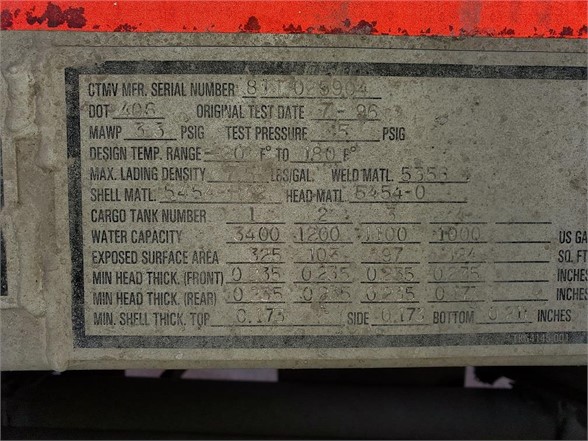

Identification Plate Images
Key Information
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -20 to 180F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 34826 L
- Max Payload
- 25855 kg
- Max Density
- 0.90 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | - | 0.235 |
| Top Shell | - | 0.173 |
| Side Shell | - | 0.173 |
| Bottom Shell | - | 0.211 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 12870 | 30.2 |
| 2 | 4542 | - |
| 3 | 4164 | - |
| 4 | 3785 | - |
| 5 | 9464 | 26.5 |
