Metal ID Plate
406 - 5HTAB442717V7H60873 - Heil

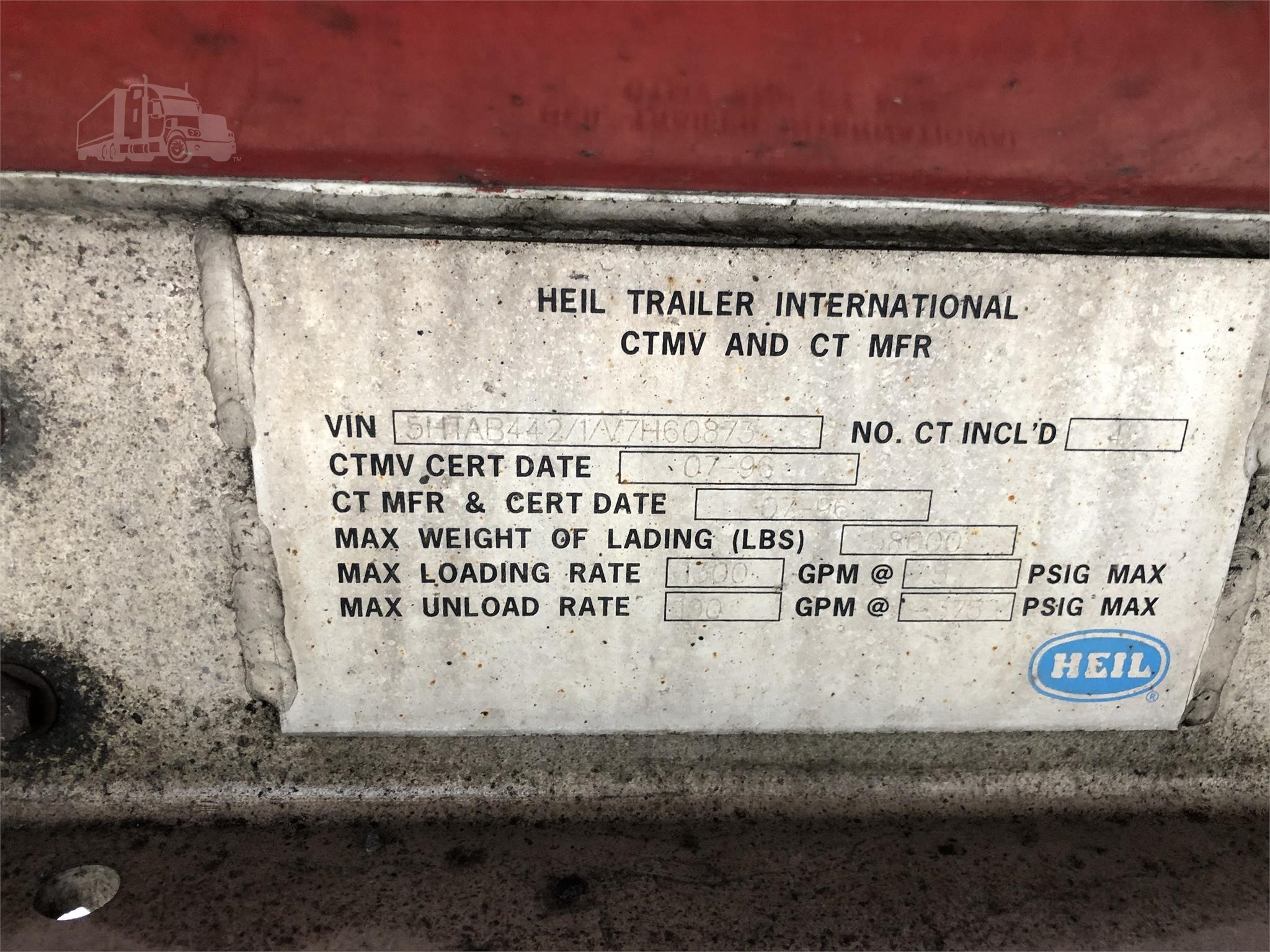

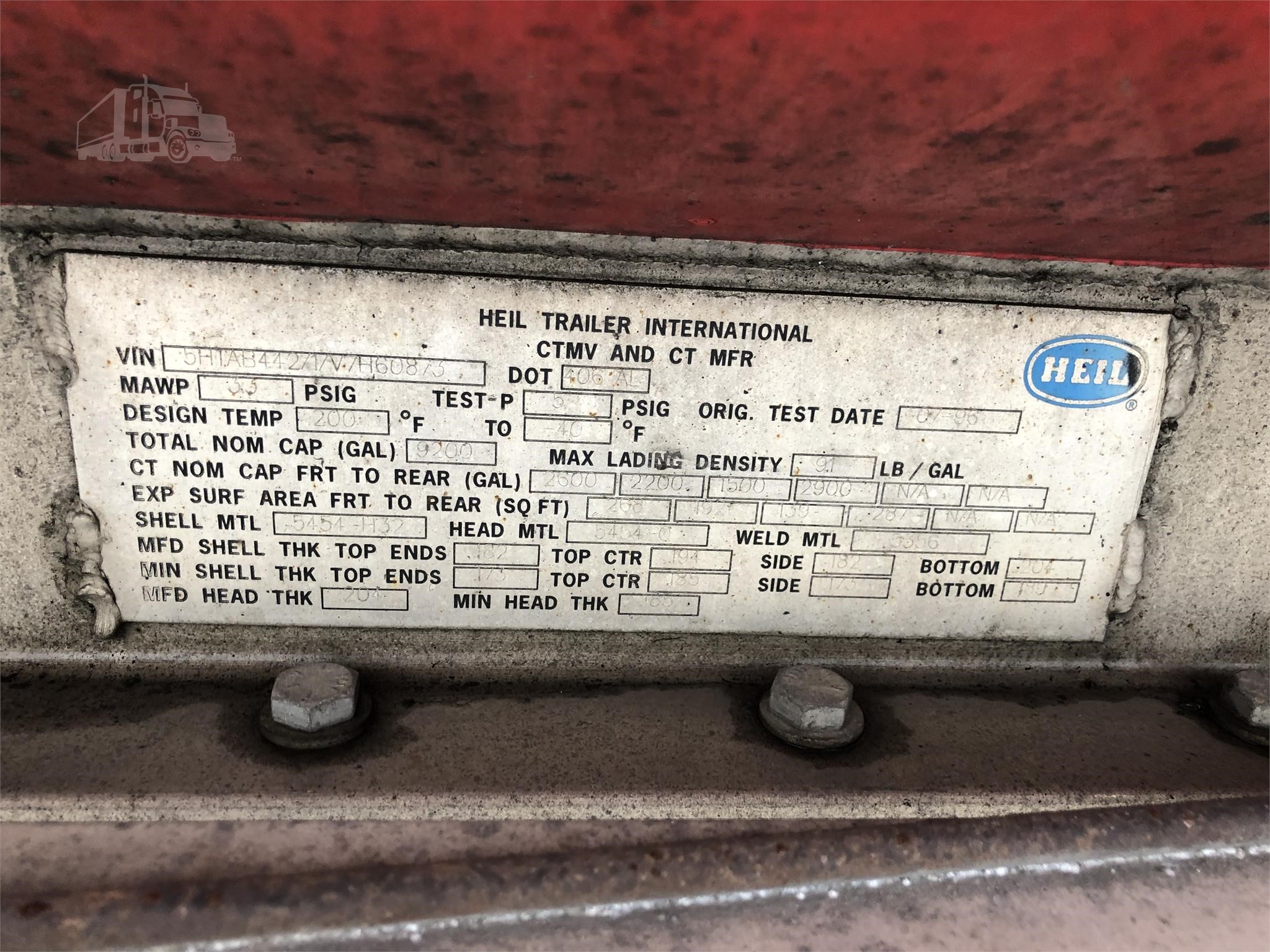

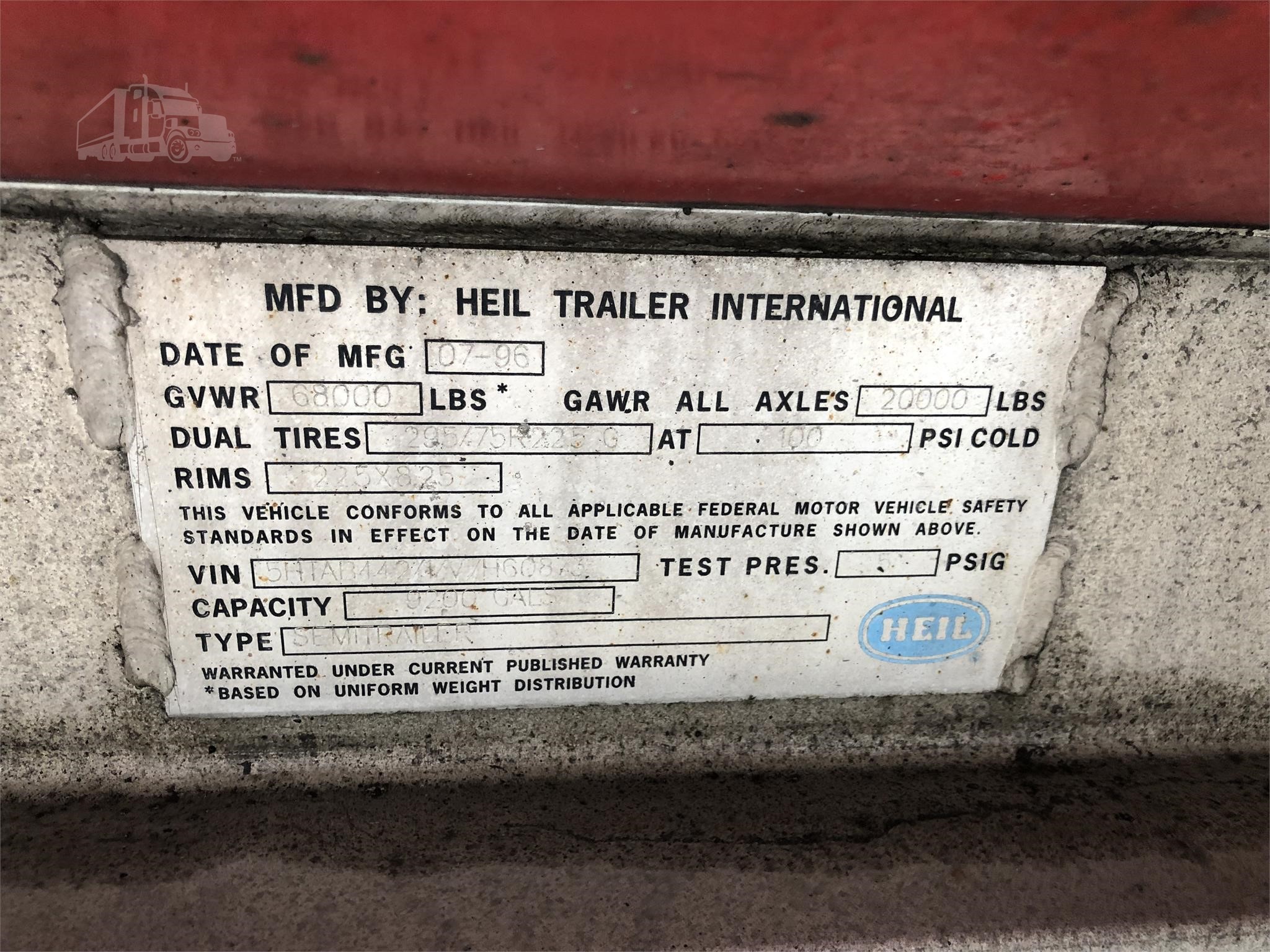

Identification Plate Images
Key Information
- Pic Number
- 190
- Specification
- 406
- Serial Number
- 5HTAB442717V7H60873
- Manufacturer
- Heil
- Assembler
- Heil Trailer
- MFG Year
- 1996
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -40 to 200F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 34826 L
- Max Payload
- 26308 kg
- Max Density
- 1.09 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.204 | 0.185 |
| Side Shell | 0.185 | 0.173 |
| Bottom Shell | 0.204 | 0.189 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 9842 | 24.9 |
| 2 | 8328 | 17.7 |
| 3 | 5678 | 12.9 |
| 4 | 10978 | 26.7 |
