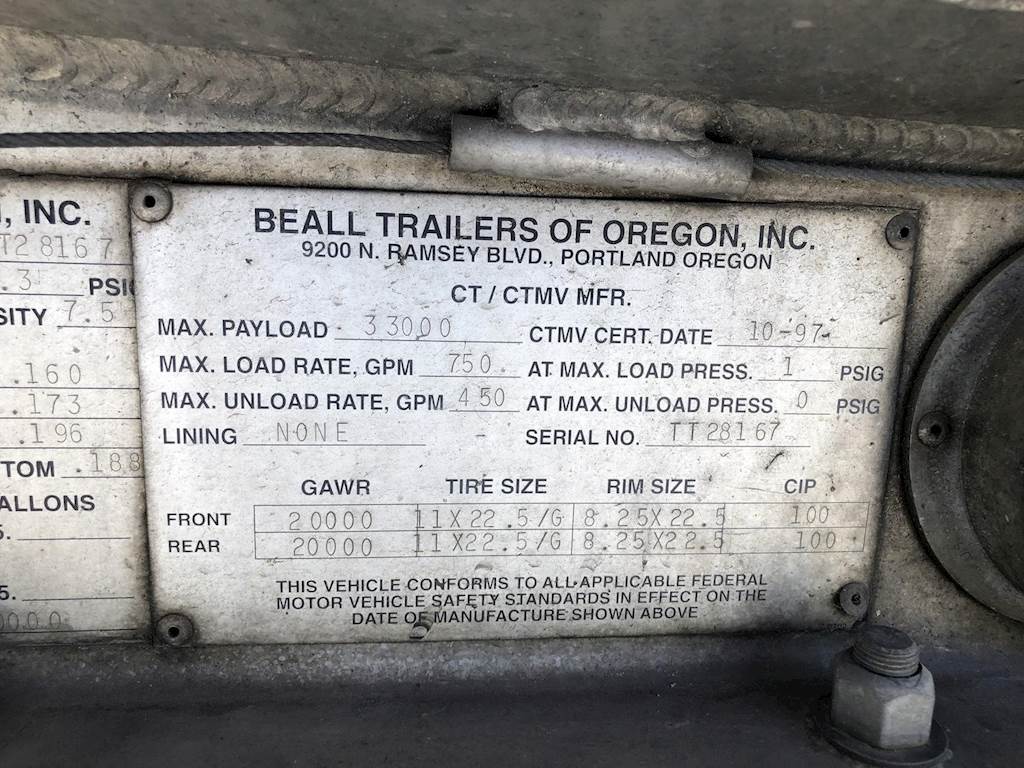

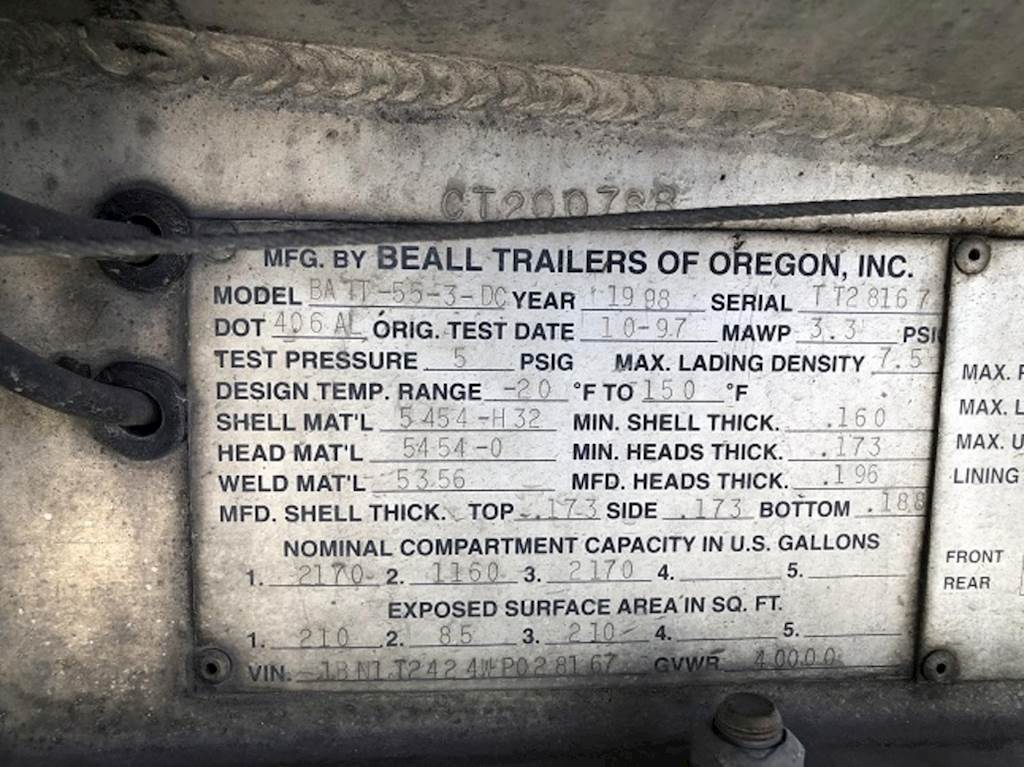

Metal ID Plate
406 - TT28167 - Beall
Identification Plate Images
Key Information
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -20 to 150F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 20820 L
- Max Payload
- 14969 kg
- Max Density
- 0.90 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.196 | 0.173 |
| Top Shell | 0.173 | 0.16 |
| Side Shell | 0.173 | 0.16 |
| Bottom Shell | 0.188 | 0.16 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 8214 | 19.5 |
| 2 | 4391 | 7.9 |
| 3 | 8214 | 19.5 |
