Metal ID Plate
406 - 5HTAB4322X7H63463 - Heil

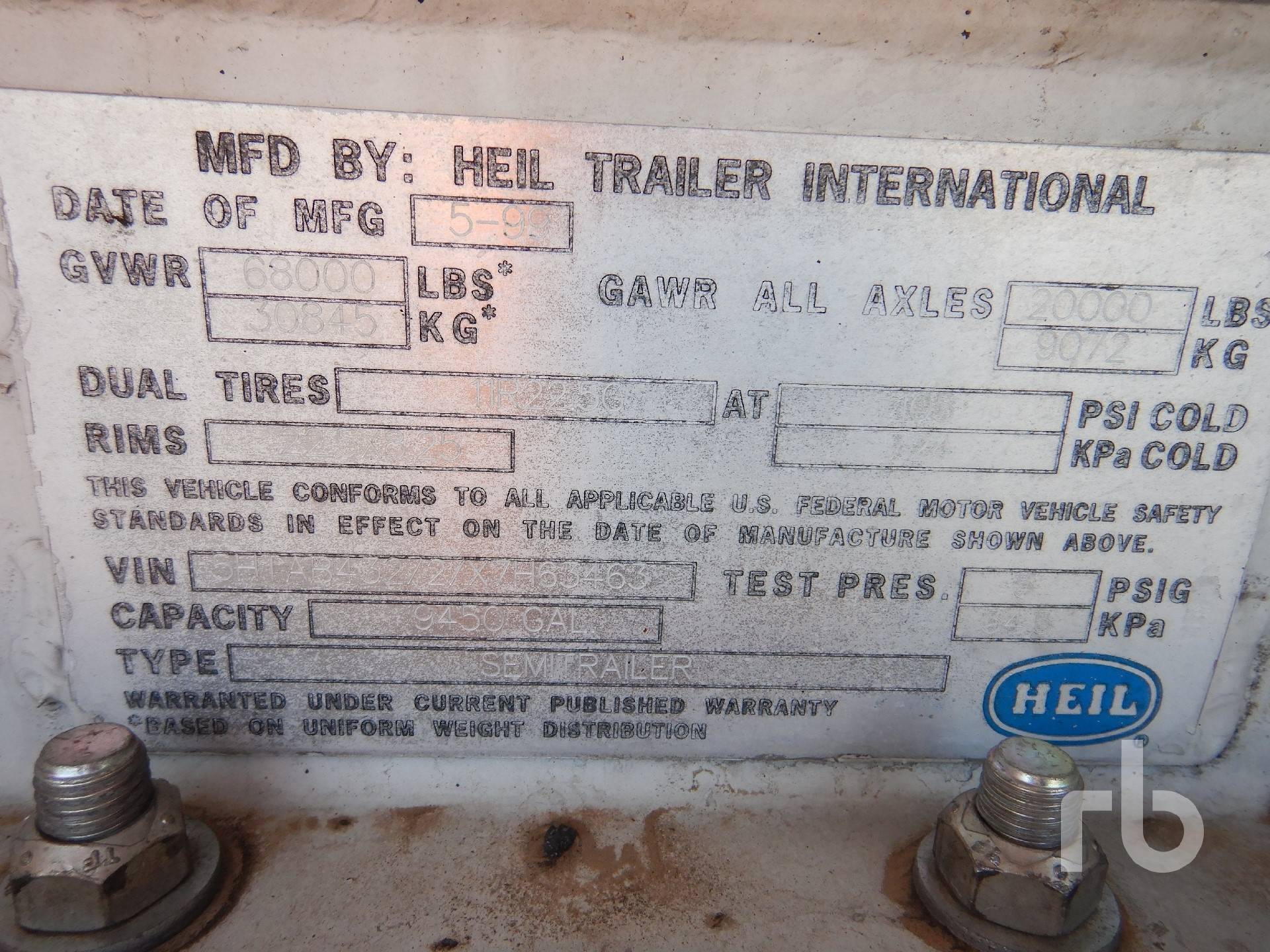

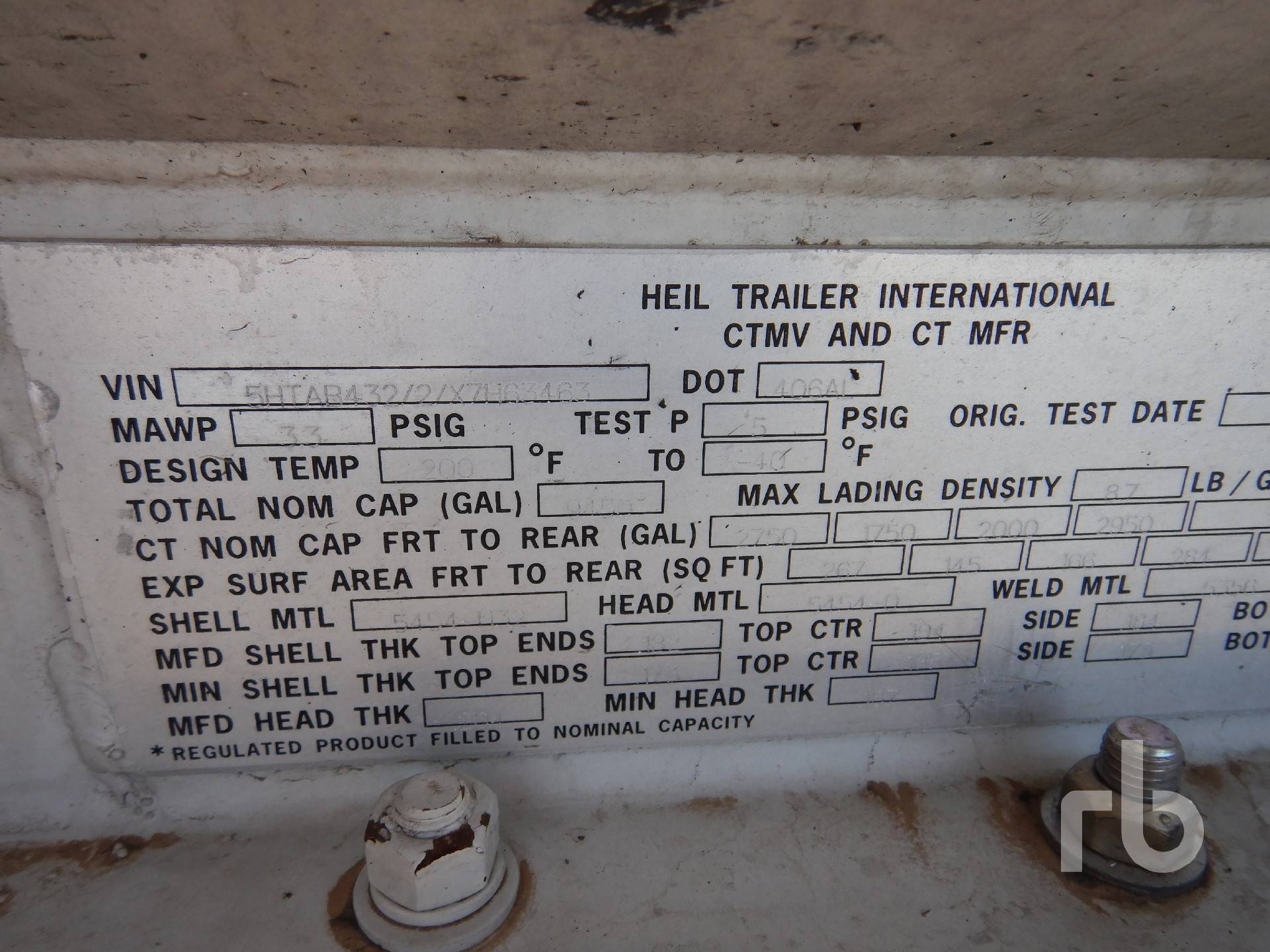

Identification Plate Images
Key Information
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- 200F to -40F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 35772 L
- Max Density
- 1.04 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 10410 | 24.8 |
| 2 | 6624 | 13.5 |
| 3 | 7571 | 15.4 |
| 4 | 11167 | 26.4 |
