Metal ID Plate
406 - 5HTAB452707X7H62258 - Heil

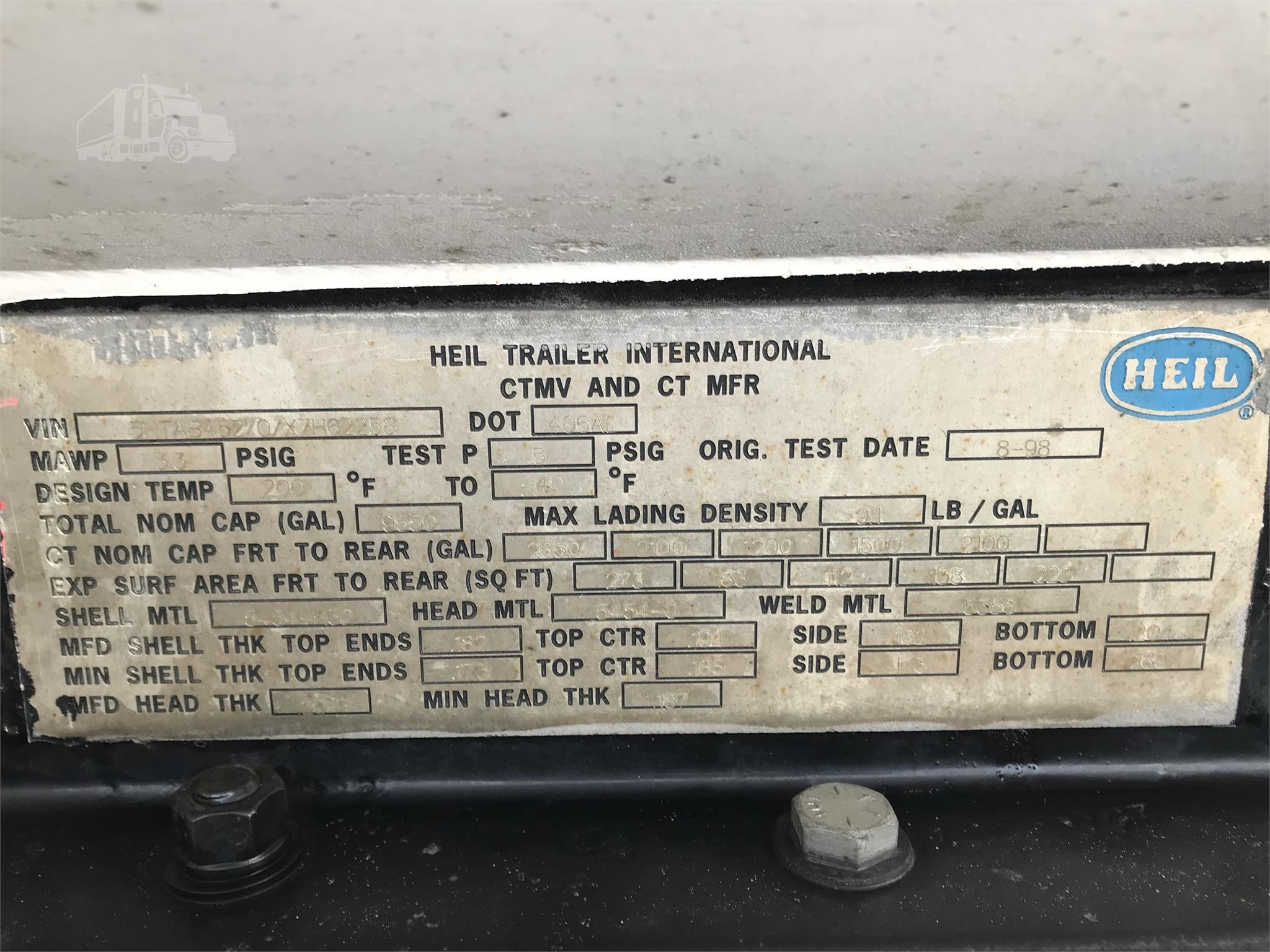

Identification Plate Images
Key Information
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- 200F to -40F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 36908 L
- Max Density
- 1.09 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.204 | 0.187 |
| Top Shell | 0.182 | 0.173 |
| Side Shell | 0.182 | 0.173 |
| Bottom Shell | 0.204 | 0.189 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 10788 | 25.4 |
| 2 | 7949 | 17.0 |
| 3 | 4542 | 10.4 |
| 4 | 5678 | 12.8 |
| 5 | 7949 | 20.7 |
