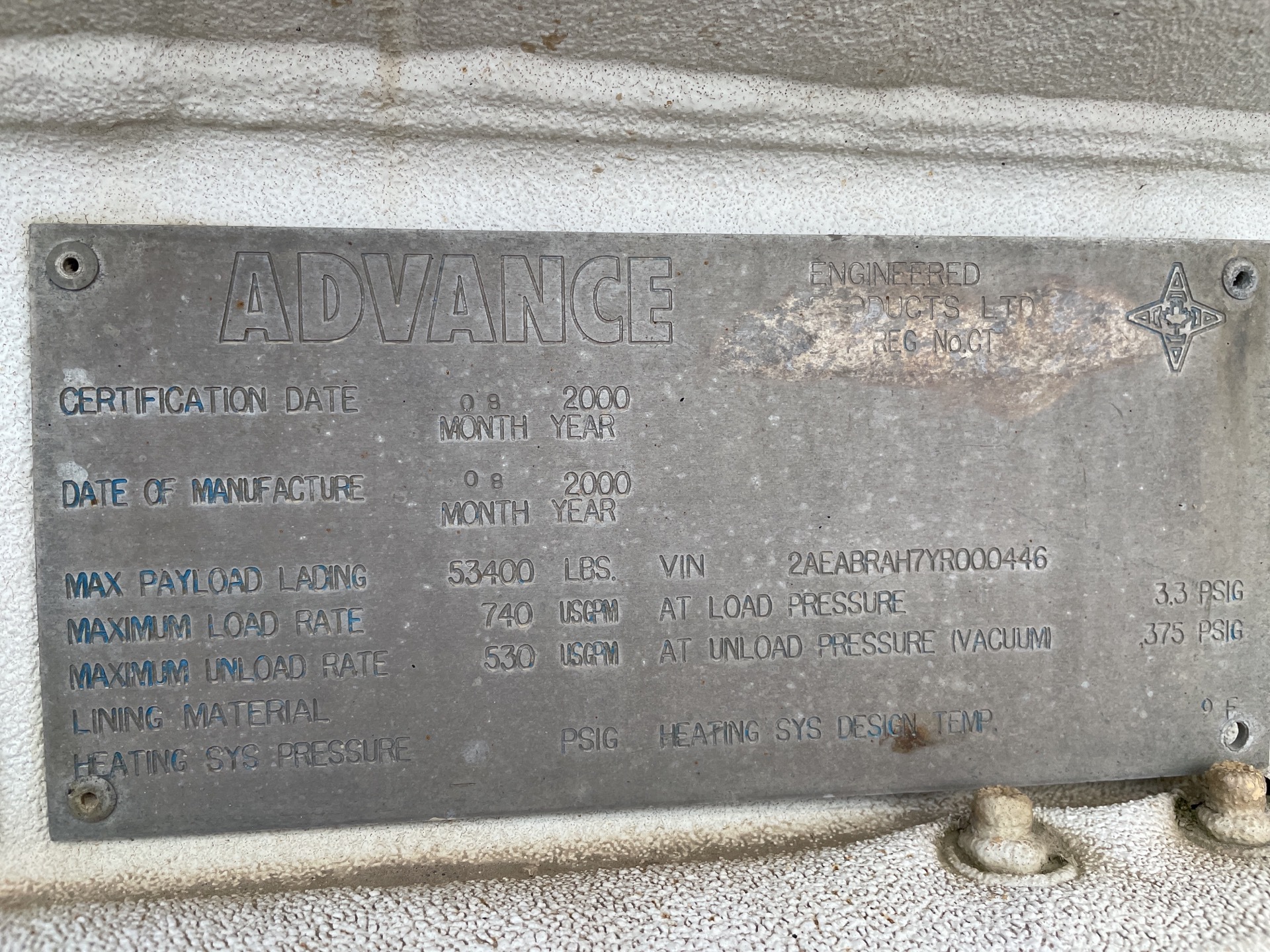

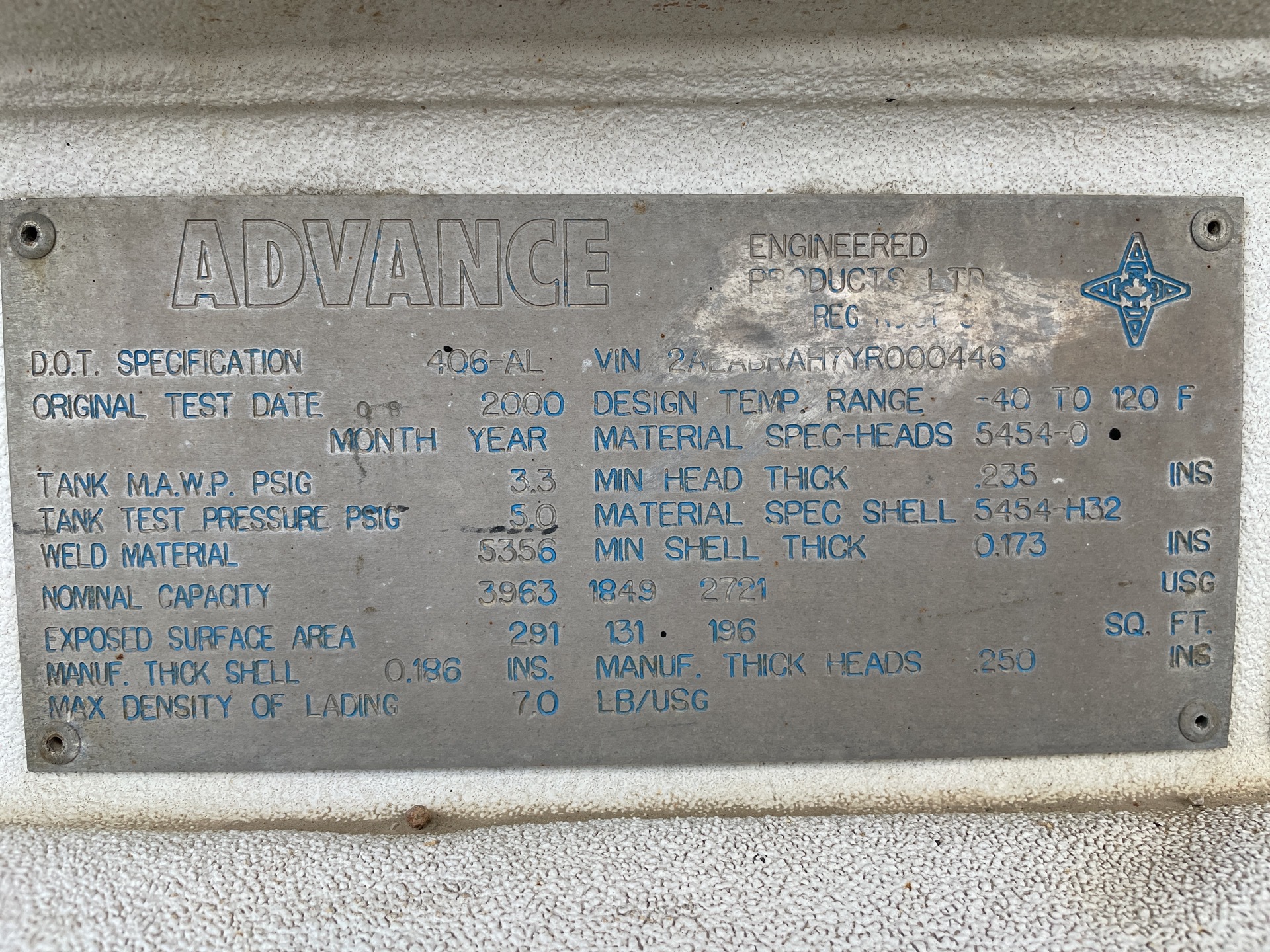

Metal ID Plate
406 - 2AEABRAH7YR000446 - Advance
Identification Plate Images
Key Information
Technical Specifications
- Temperature Range
- -40 to 120F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 32301 L
- Max Payload
- 24222 kg
- Max Density
- 0.84 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | - | 0.235 |
| Shell | - | 0.173 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 15002 | 27.0 |
| 2 | 6999 | 12.2 |
| 3 | 10300 | 18.2 |
