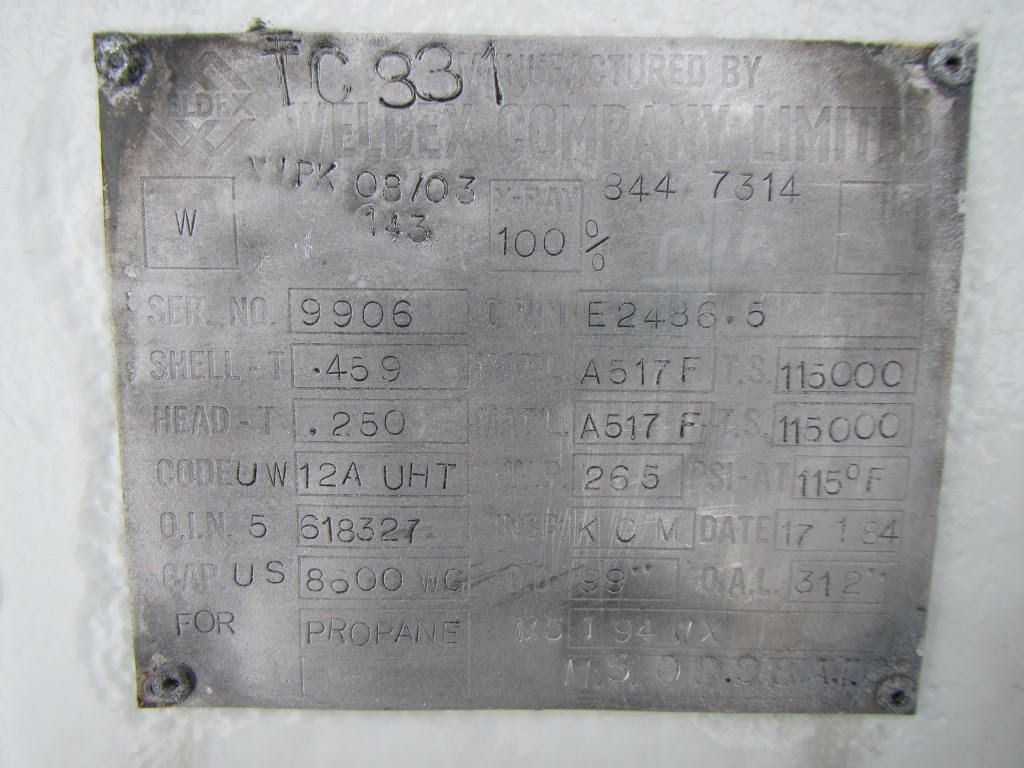

Metal ID Plate
331 - 9906 - Weldex
Identification Plate Images
Key Information
- Pic Number
- 248
- Specification
- 331
- Serial Number
- 9906
- Manufacturer
- Weldex
- MFG Year
- 1984
- CRN
- E2486.5
- Tank Configuration
- B Train - Rear Unit
- # of Compartments
- 1
Technical Specifications
- MAWP
- 265 psi
- Design Pressure
- 265 psi
- Head Material
- SA 517F
- Shell Material
- SA 517F
- Total Volume
- 32555 L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | - | 0.25 |
| Shell | - | 0.459 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 32555 | - |
