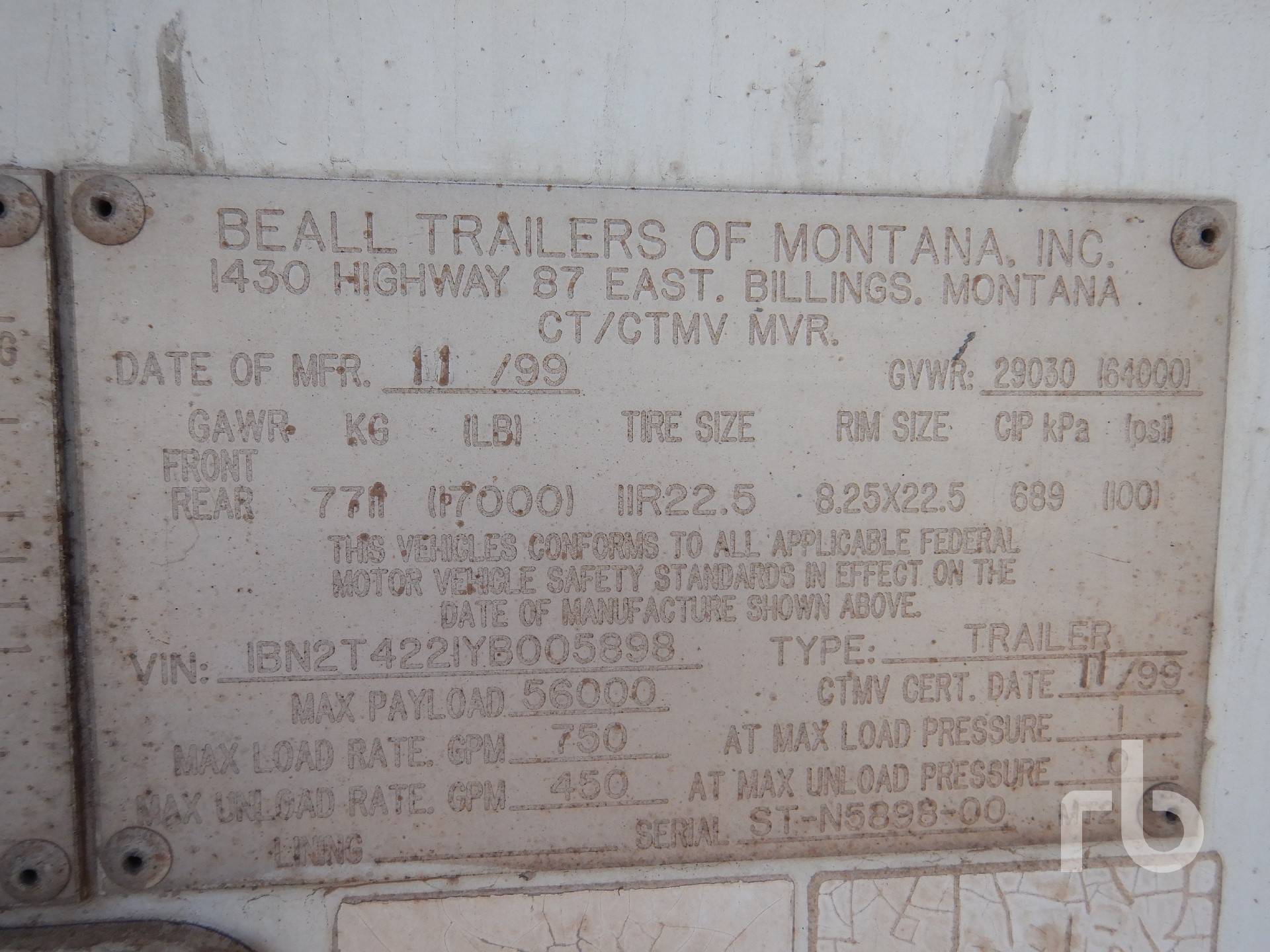

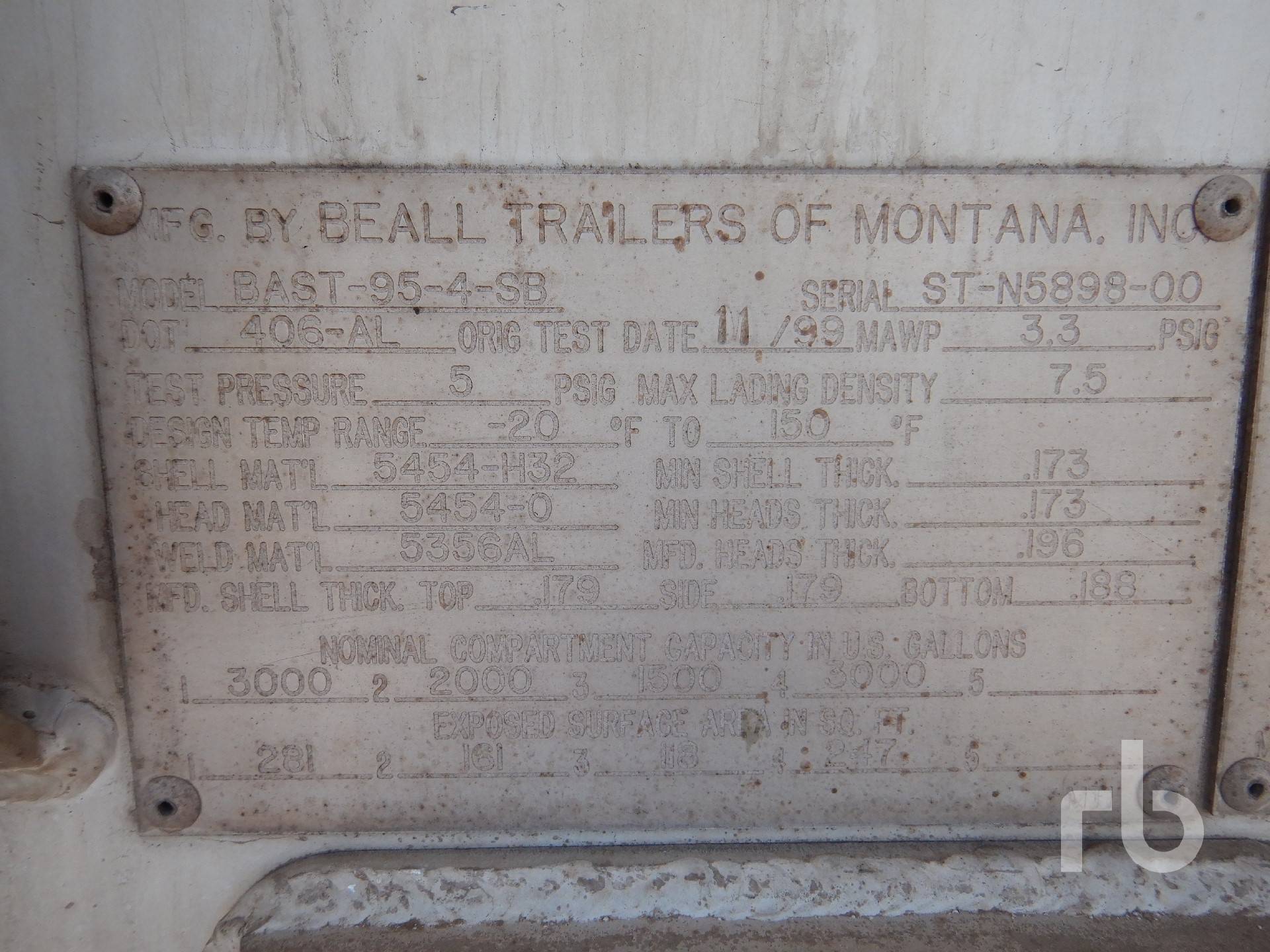

Metal ID Plate
406 - ST-N5898-00 - Beall
Identification Plate Images
Key Information
- Pic Number
- 308
- Specification
- 406
- Serial Number
- ST-N5898-00
- Manufacturer
- Beall
- MFG Year
- 1999
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 4
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -20 to 150F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 35961 L
- Max Payload
- 25401 kg
- Max Density
- 0.90 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | - | 0.173 |
| Top Shell | 0.179 | N/A |
| Side Shell | 0.179 | N/A |
| Bottom Shell | 0.188 | N/A |
| Shell | 0.196 | 0.173 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 11356 | 26.1 |
| 2 | 7571 | 15.0 |
| 3 | 5678 | 11.0 |
| 4 | 11356 | 22.9 |
