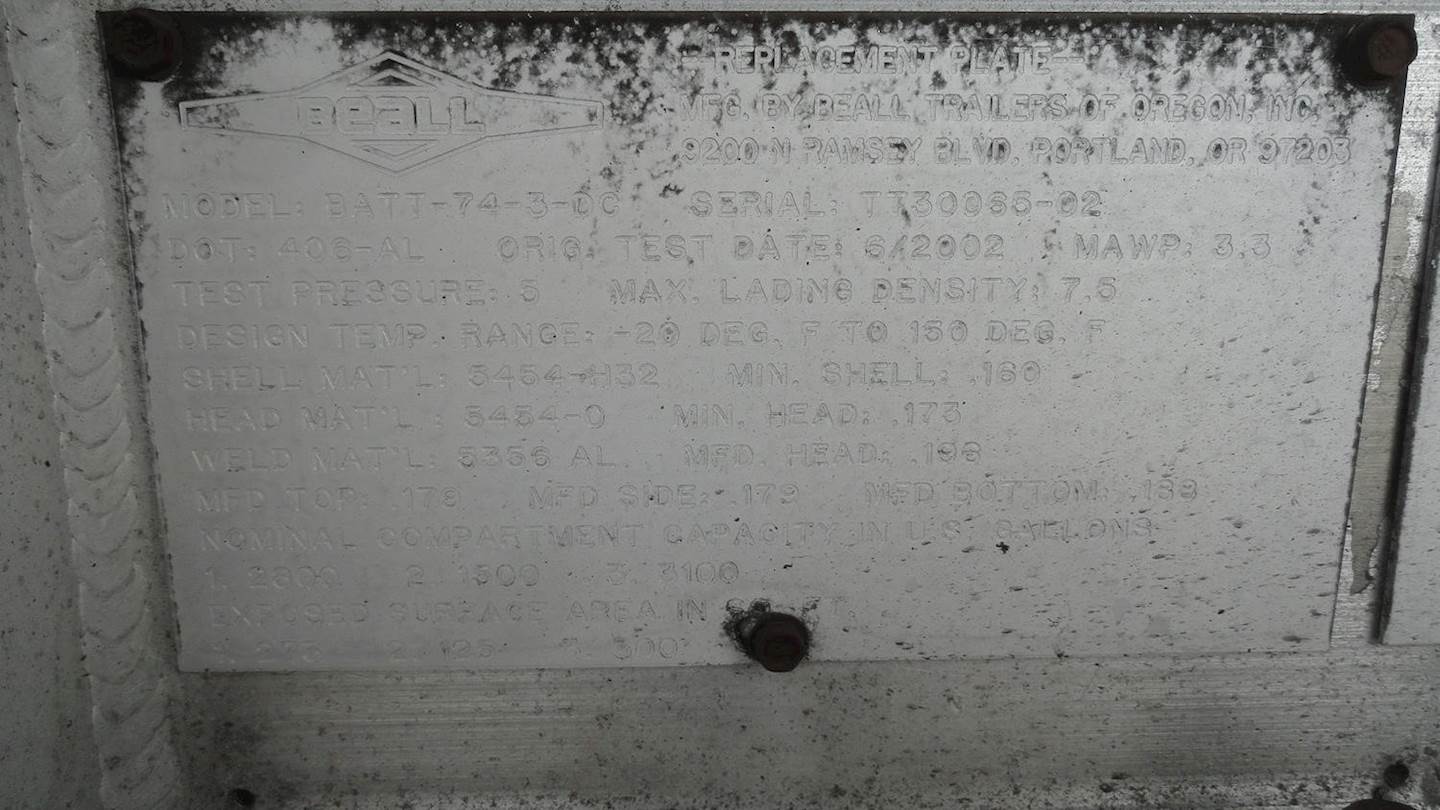

Metal ID Plate
406 - TT30065-02 - Beall
Identification Plate Images
Key Information
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -29 to 65.6
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 28012 L
- Max Density
- 0.90 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.196 | 0.173 |
| Top Shell | 0.179 | N/A |
| Side Shell | 0.179 | N/A |
| Bottom Shell | 0.188 | N/A |
| Shell | - | 0.16 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 10599 | 25.6 |
| 2 | 5678 | 11.6 |
| 3 | 11735 | 27.9 |
