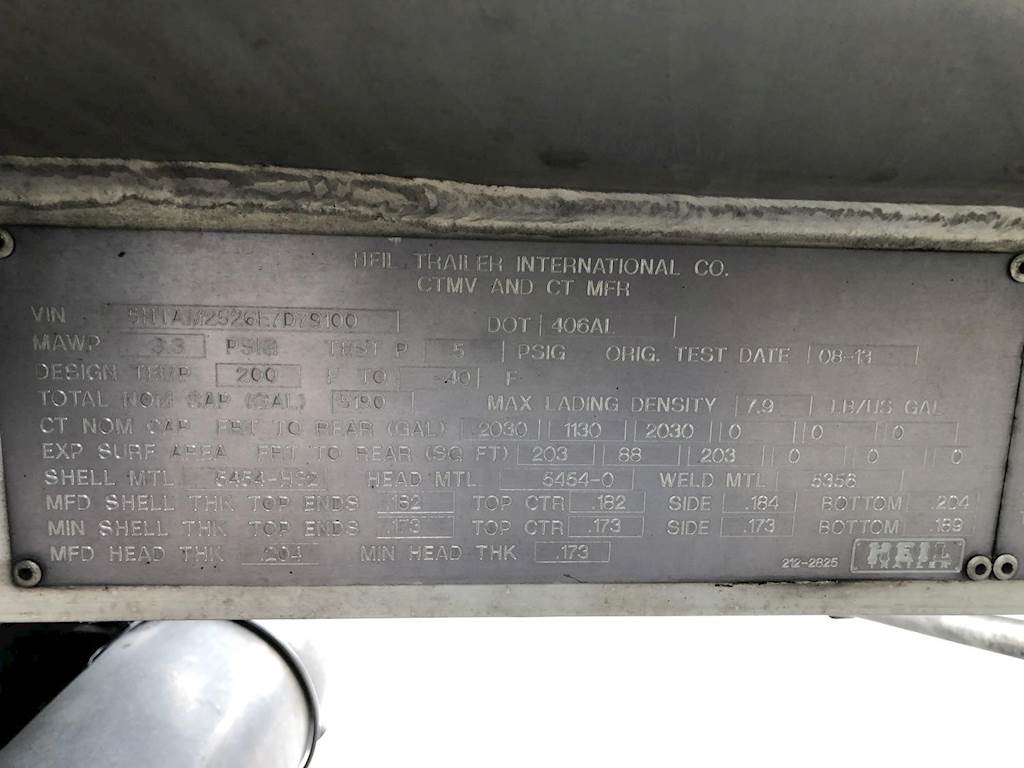

Metal ID Plate
406 - - Heil
Identification Plate Images
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 19646 L
- Max Density
- 0.95 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.204 | 0.173 |
| Side Shell | 0.184 | 0.173 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 7684 | 18.9 |
| 2 | 4278 | 8.2 |
| 3 | 7684 | 18.9 |
