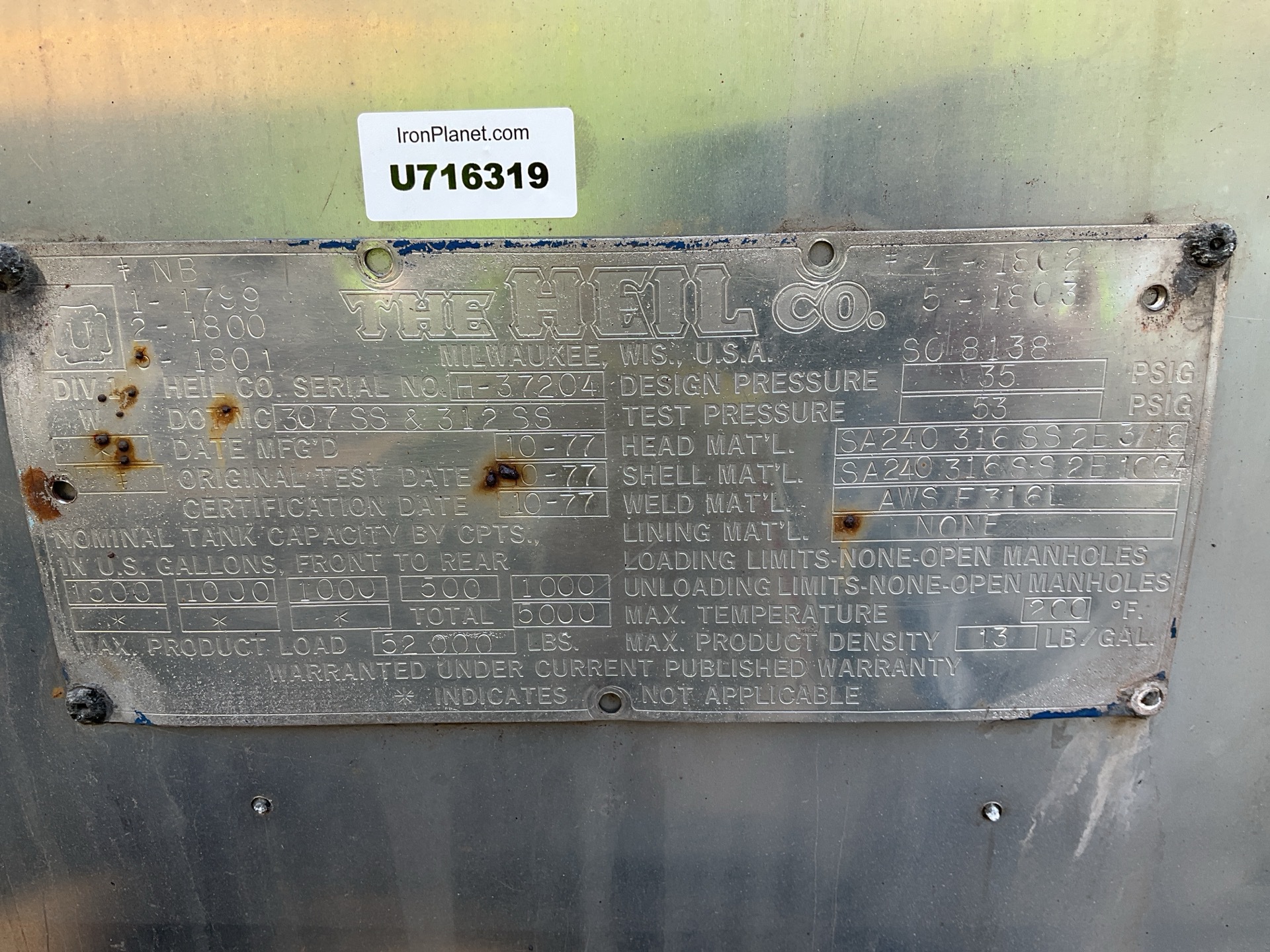

Metal ID Plate
307 - H-37204 - Heil
Identification Plate Images
Key Information
- Pic Number
- 681
- Specification
- 307
- Serial Number
- H-37204
- Manufacturer
- Heil
- MFG Year
- 1977
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 5
Technical Specifications
- Design Pressure
- 35.0 psi
- Test Pressure
- 53.0 psi
- Head Material
- SA-240 316
- Shell Material
- SA-240 316
- Weld Material
- AWS E316L
- Total Volume
- 18927 L
- Max Payload
- 23587 kg
- Max Density
- 1.56 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 5678 | - |
| 2 | 3785 | - |
| 3 | 3785 | - |
| 4 | 1893 | - |
| 5 | 3785 | - |
