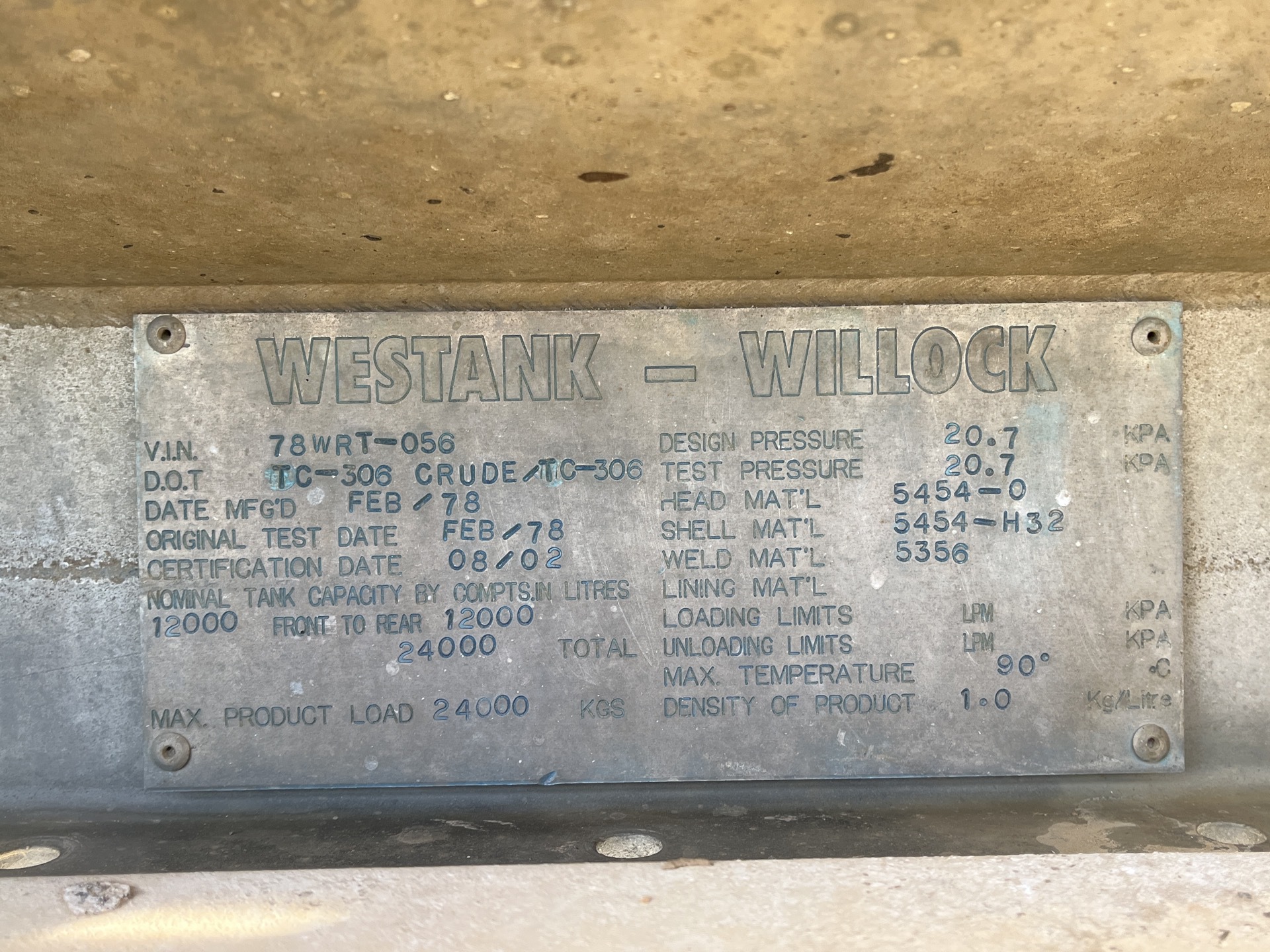

Metal ID Plate
306 Crude - 78WRT-056 - Westank Willock
Identification Plate Images
Key Information
- Pic Number
- 682
- Specification
- 306 Crude
- Serial Number
- 78WRT-056
- Manufacturer
- Westank Willock
- MFG Year
- 2002
- Tank Configuration
- B Train
- # of Compartments
- 2
Technical Specifications
- Design Pressure
- 3.0 psi
- Test Pressure
- 3.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 24000 L
- Max Payload
- 24000 kg
- Max Density
- 1.00 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 12000 | - |
| 2 | 12000 | - |
