Metal ID Plate
306 - N1-11606 - Polar Tank

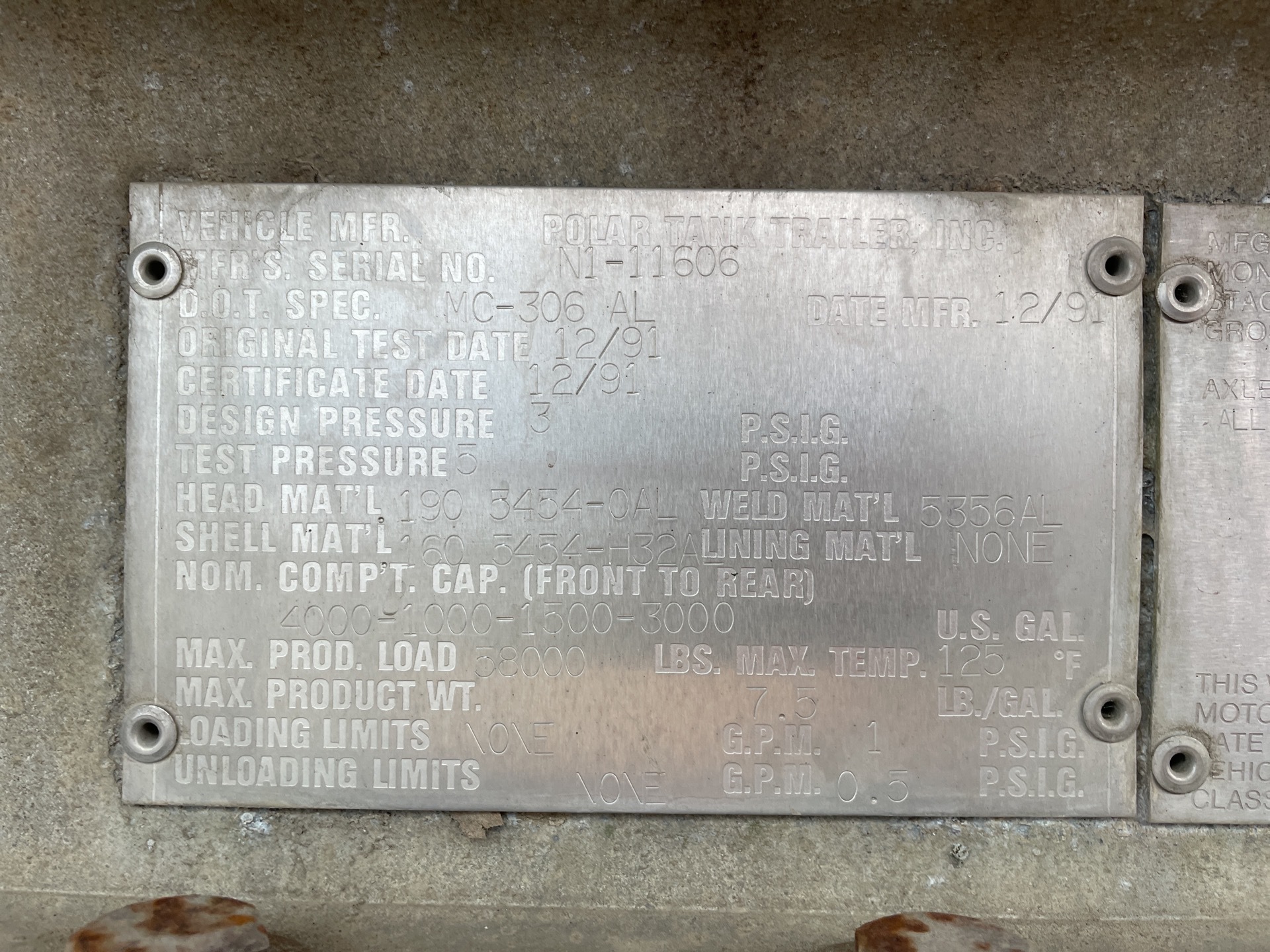

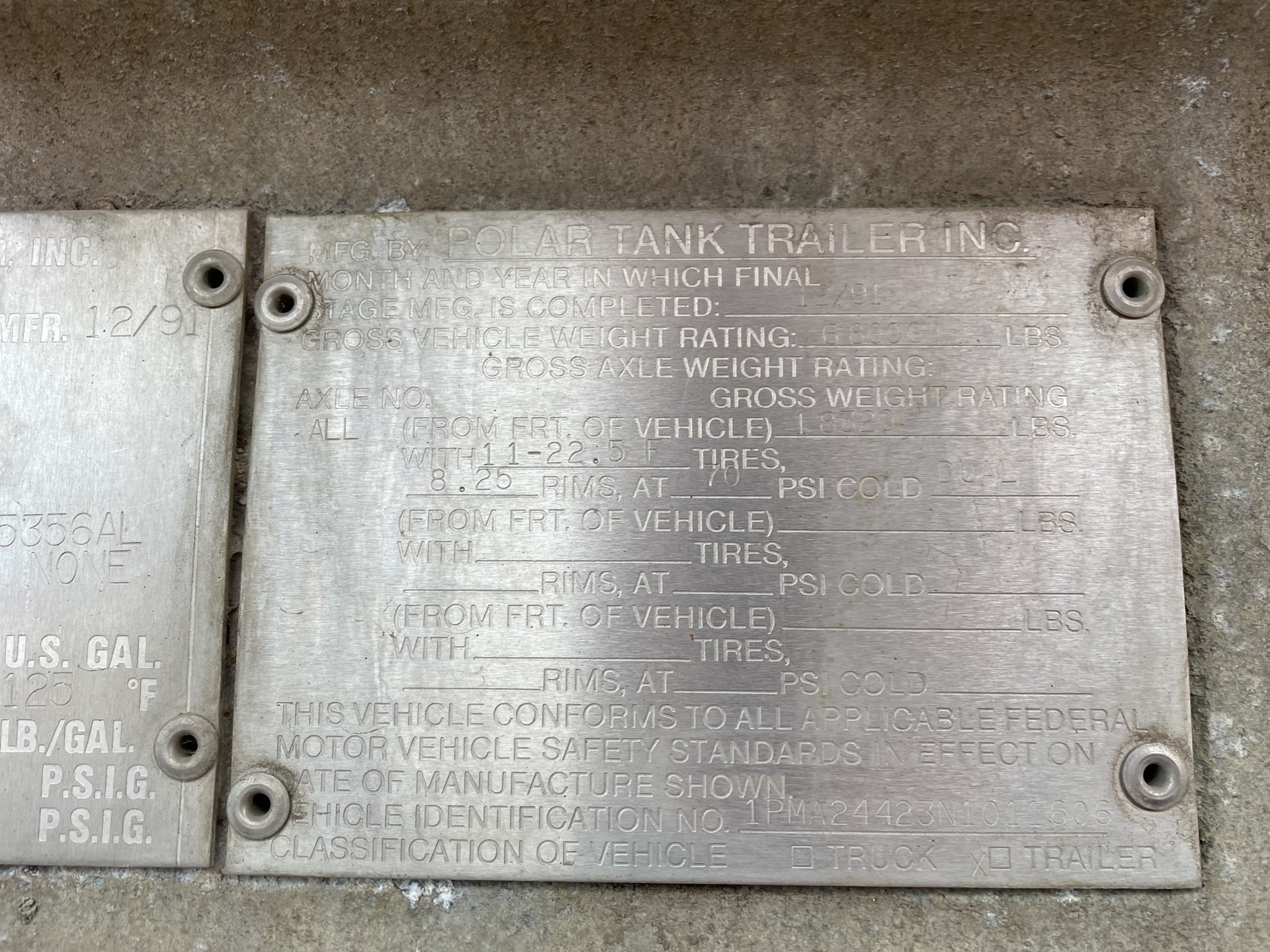

Identification Plate Images
Key Information
- Pic Number
- 719
- Specification
- 306
- Serial Number
- N1-11606
- Manufacturer
- Polar Tank
- MFG Year
- 1991
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 4
Technical Specifications
- Design Pressure
- 3.0 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- Max Temp 125F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 35961 L
- Max Payload
- 26308 kg
- GVWR
- 68000 lbs
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.19 | N/A |
| Shell | 0.16 | N/A |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 15142 | - |
| 2 | 3785 | - |
| 3 | 5678 | - |
| 4 | 11356 | - |
