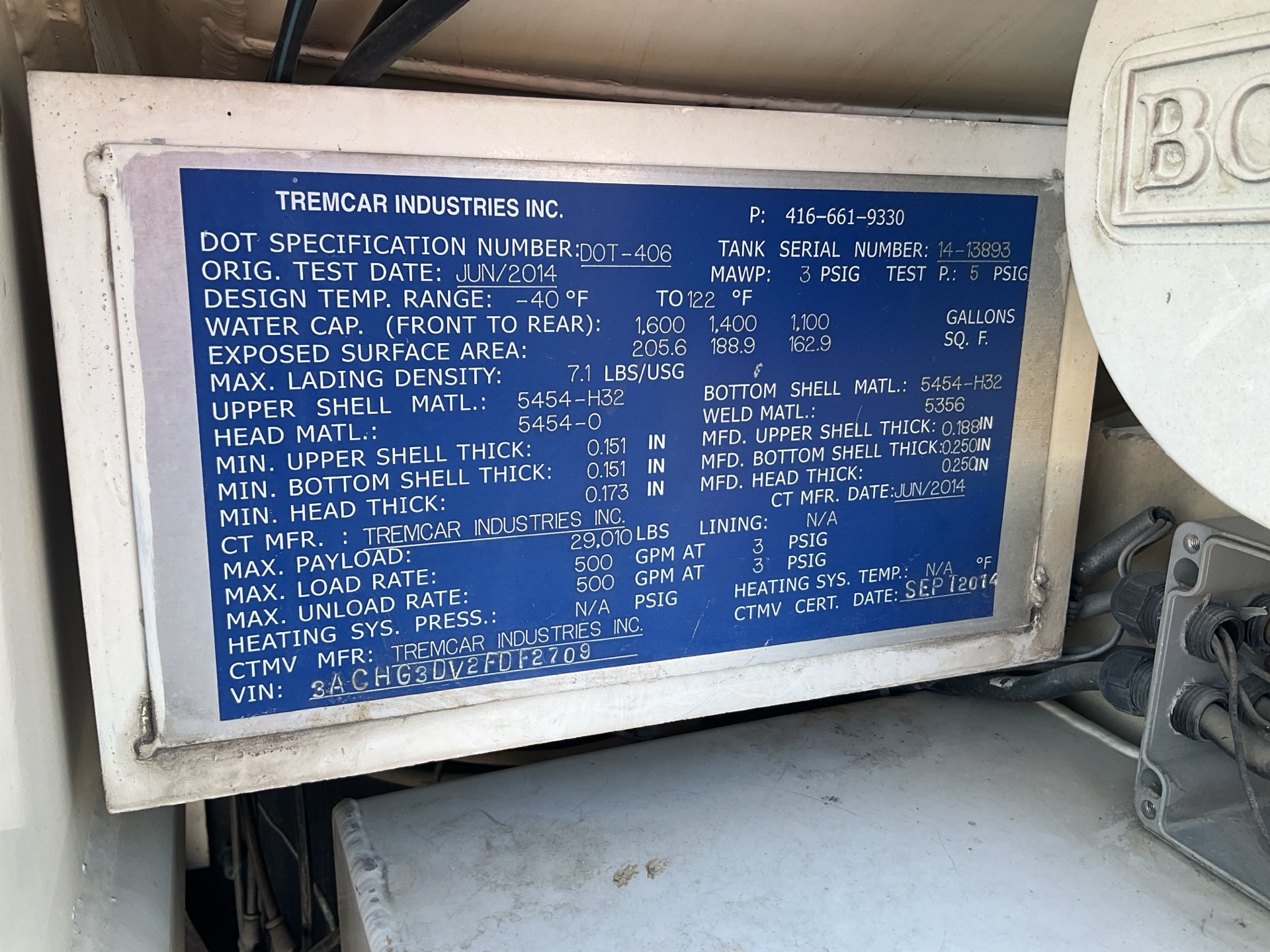

Metal ID Plate
406 - 14-13893 - Tremcar
Identification Plate Images
Key Information
- Pic Number
- 856
- Specification
- 406
- Serial Number
- 14-13893
- Manufacturer
- Tremcar
- Assembler
- Tremcar
- MFG Year
- 2014
- Tank Configuration
- Tandem Axle Tank Truck
- # of Compartments
- 3
Technical Specifications
- MAWP
- 3.0 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -40F to 122F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 15520 L
- Max Payload
- 13159 kg
- Max Density
- 0.85 kg/L
- GVWR
- 56000 lbs
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.25 | 0.173 |
| Top Shell | 0.188 | 0.151 |
| Bottom Shell | 0.25 | 0.151 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 6057 | 19.1 |
| 2 | 5300 | 17.5 |
| 3 | 4164 | 15.1 |
