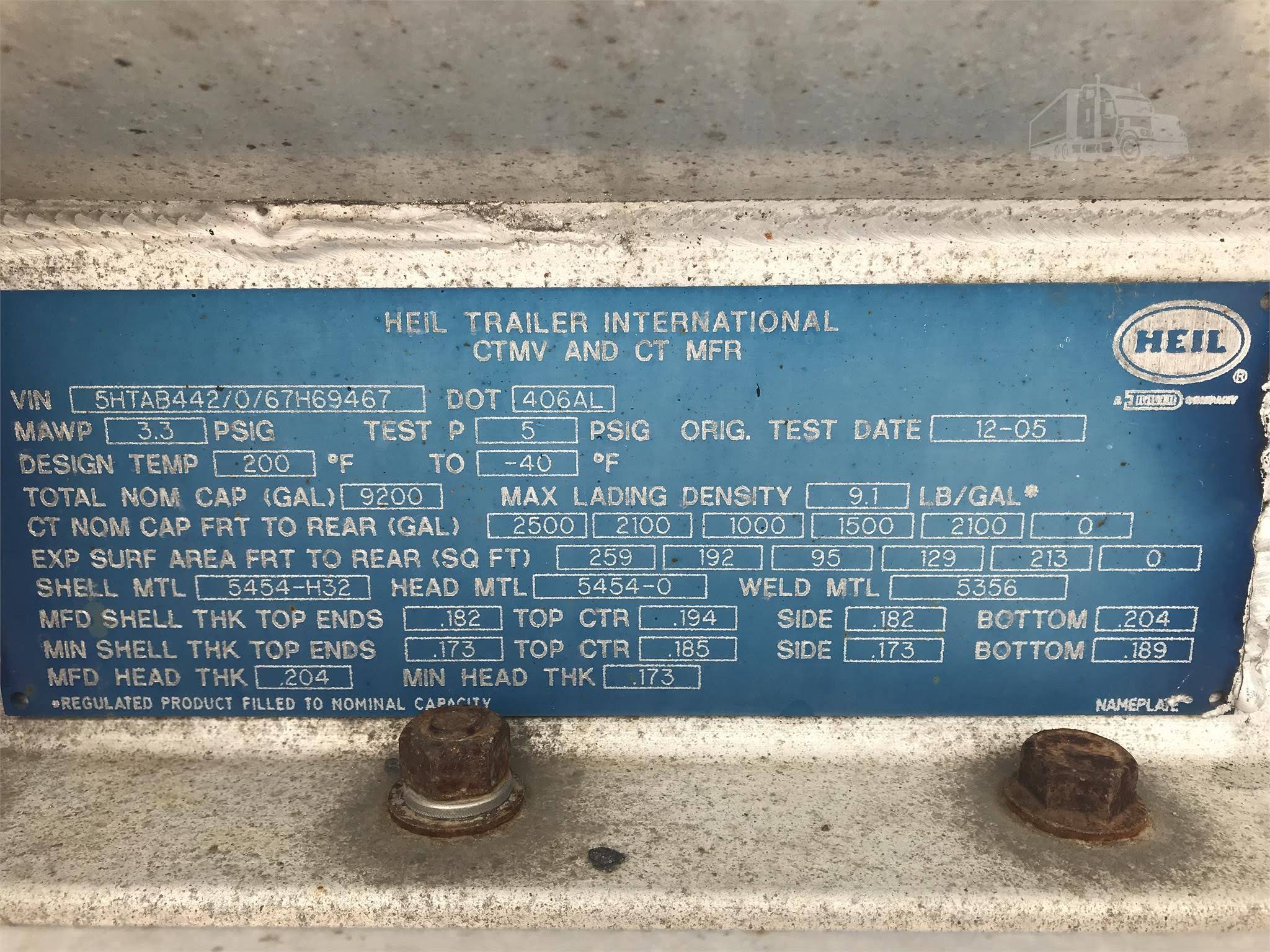

Metal ID Plate
406 - 5HTAB44270767H69467 - Heil
Identification Plate Images
Key Information
- Pic Number
- 9
- Specification
- 406
- Serial Number
- 5HTAB44270767H69467
- Manufacturer
- Heil
- Assembler
- Heil Trailer
- MFG Year
- 2005
- # of Compartments
- 5
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -40 to 93
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 41824 L
- Max Density
- 1.09 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.204 | 0.173 |
| Top Shell | 0.182 | 0.173 |
| Side Shell | 0.182 | 0.173 |
| Bottom Shell | 0.204 | 0.189 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 11365 | 24.1 |
| 2 | 9547 | 17.8 |
| 3 | 4546 | 8.8 |
| 4 | 6819 | 12.0 |
| 5 | 9547 | 19.8 |
