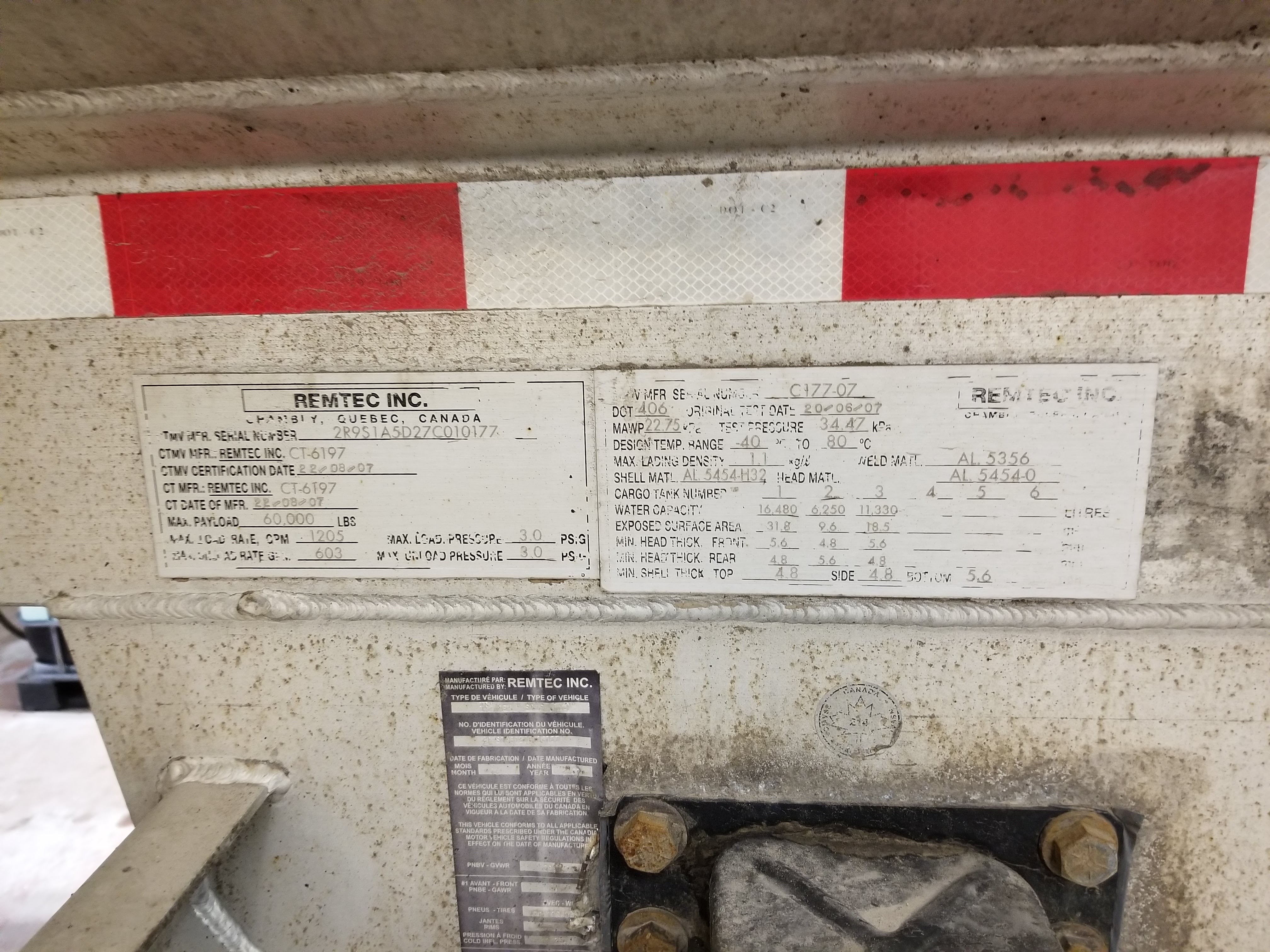

Metal ID Plate
406 - C177-07 - Remtec Inc.
Identification Plate Images
Key Information
- Pic Number
- 90
- Specification
- 406
- Serial Number
- C177-07
- Manufacturer
- Remtec Inc.
- Assembler
- Remtec Inc.
- MFG Year
- 2007
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -40 to 80
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 34060 L
- Max Payload
- 60000 kg
- Max Density
- 1.10 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | - | 0.22 |
| Top Shell | - | 0.188 |
| Side Shell | - | 0.188 |
| Bottom Shell | - | 0.22 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 16480 | 31.8 |
| 2 | 6250 | 9.6 |
| 3 | 11330 | 18.5 |
