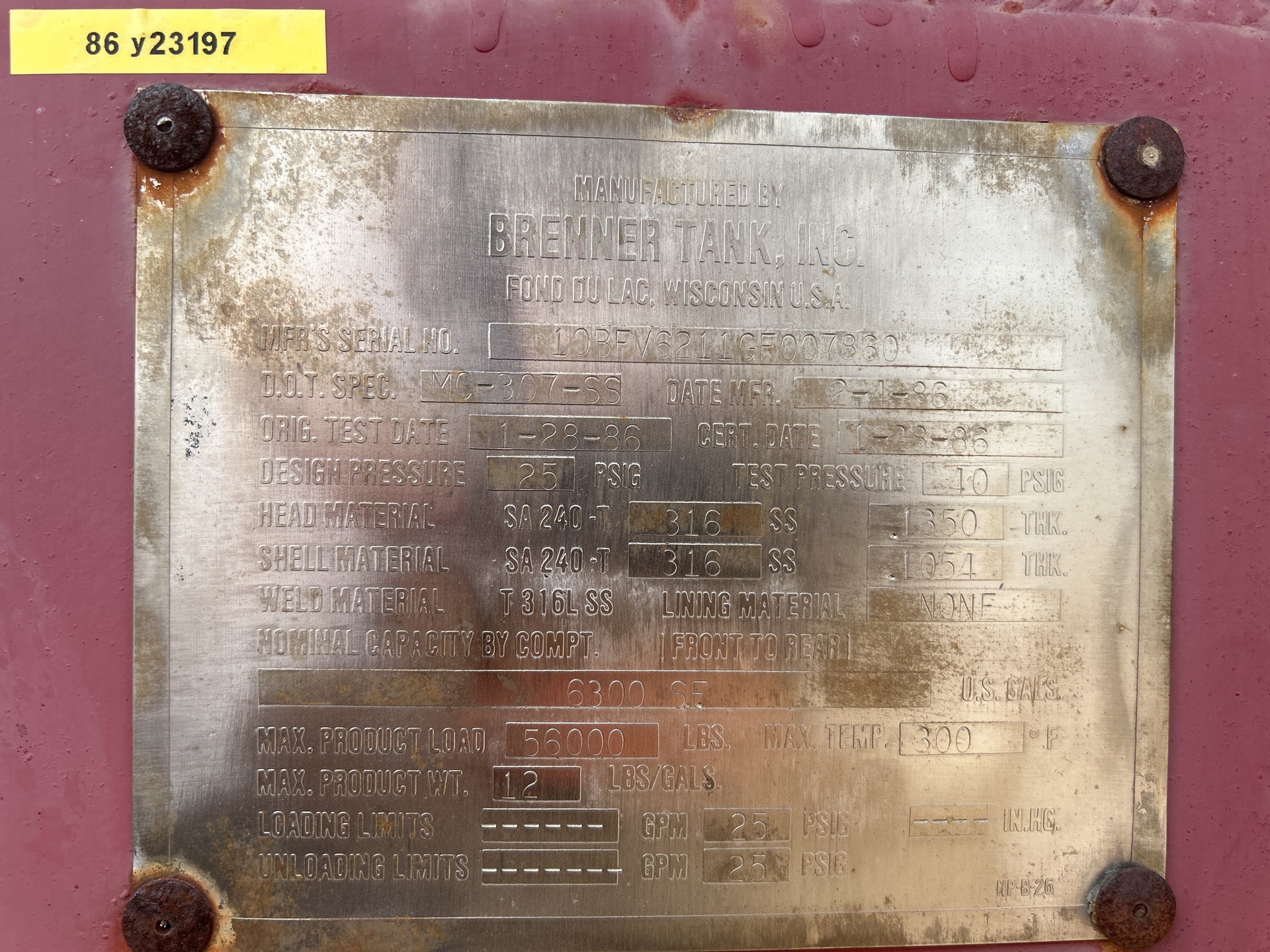

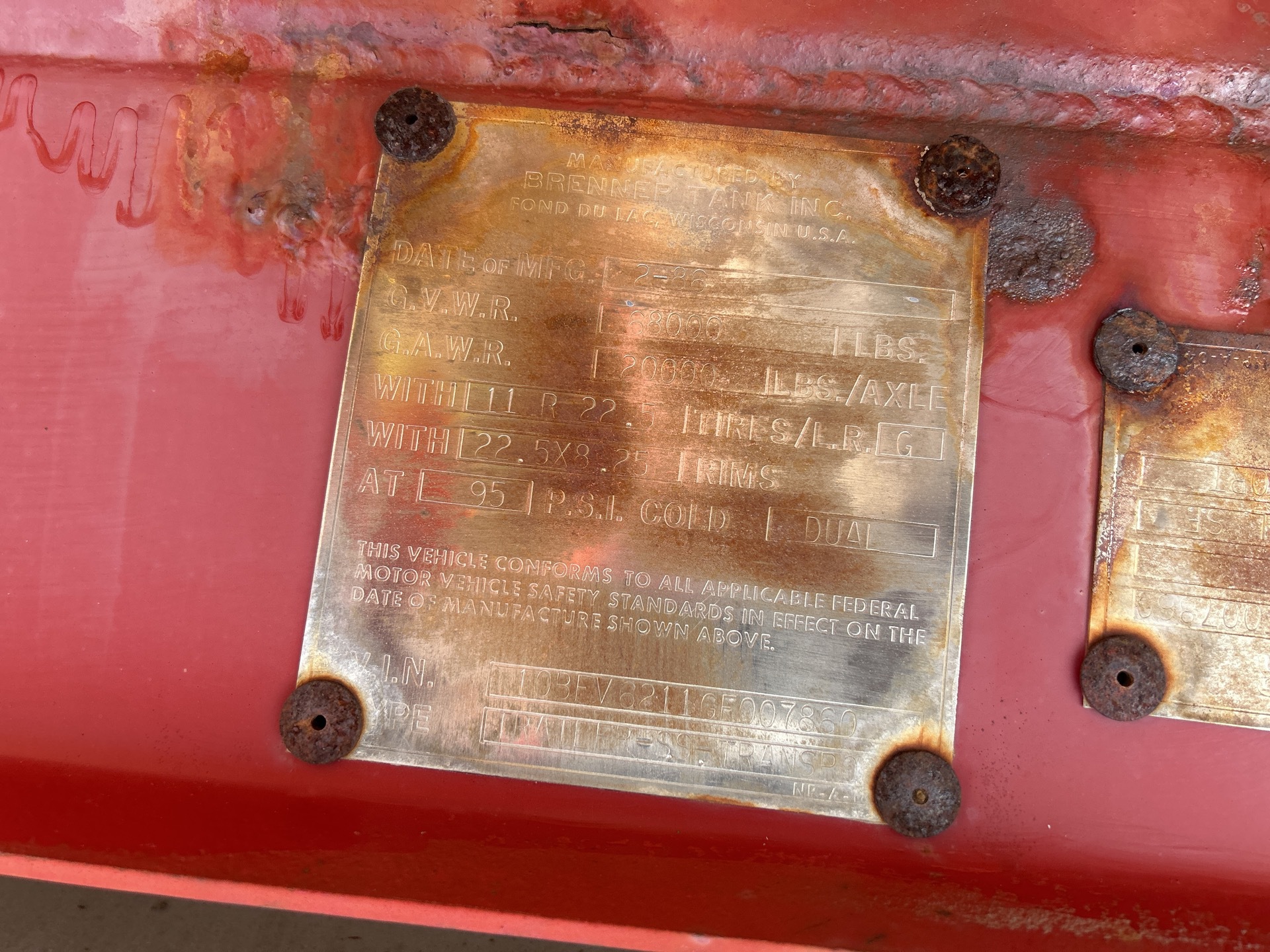

Metal ID Plate
307 - 10BFV6211GF007860 - Brenner
Identification Plate Images
Key Information
- Pic Number
- 932
- Specification
- 307
- Serial Number
- 10BFV6211GF007860
- Manufacturer
- Brenner
- MFG Year
- 1986
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 1
Technical Specifications
- Design Pressure
- 25.0 psi
- Test Pressure
- 40.0 psi
- Temperature Range
- Max Temp 300F
- Head Material
- SA-240 316
- Shell Material
- SA-240 316
- Weld Material
- T316L SS
- Total Volume
- 23848 L
- Max Payload
- 25401 kg
- Max Density
- 1.44 kg/L
- GVWR
- 68000 lbs
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.135 | N/A |
| Shell | 0.1054 | N/A |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 23848 | - |
