Metal ID Plate
306 - 4GL002710 - Fruehauf

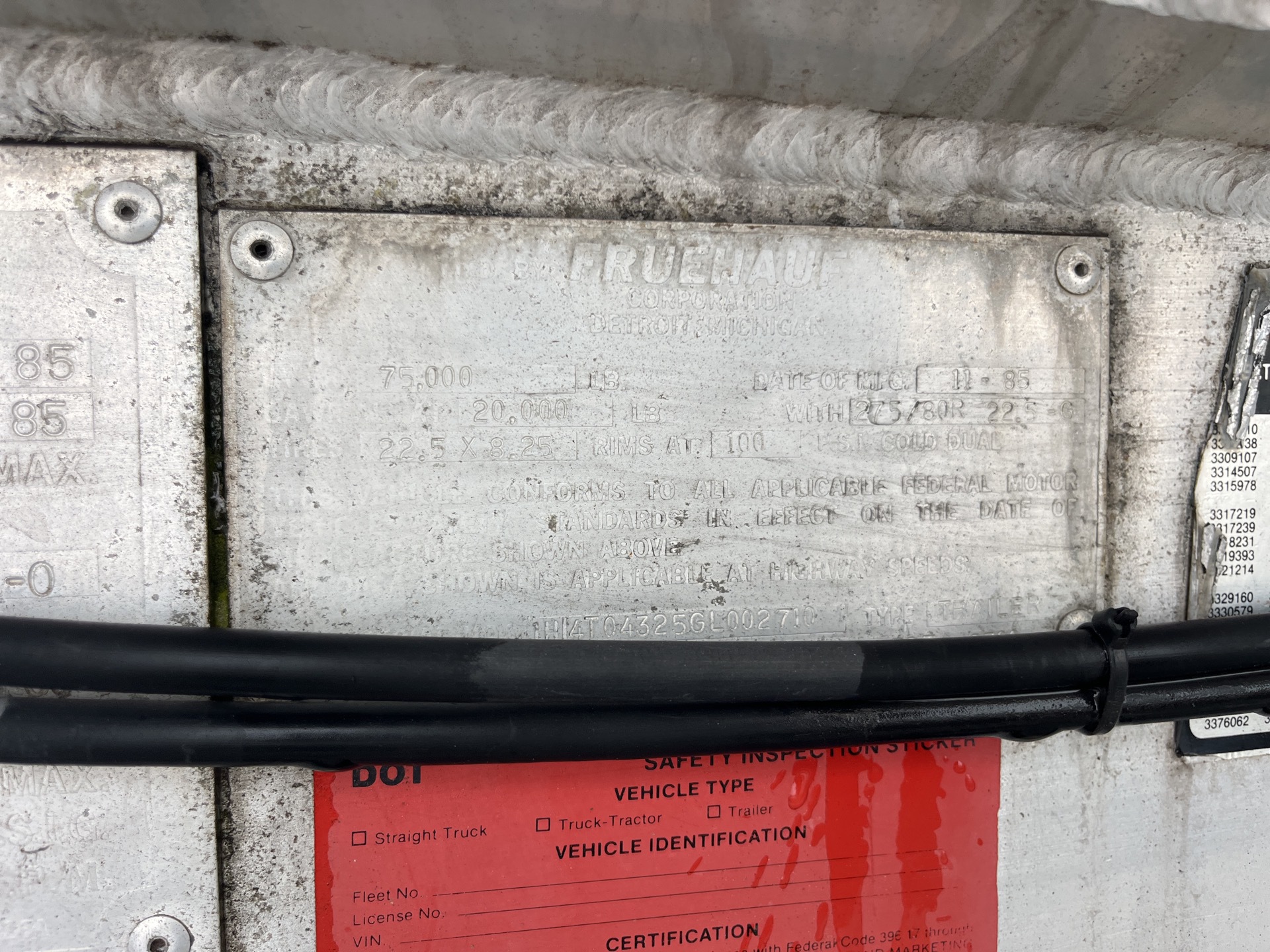

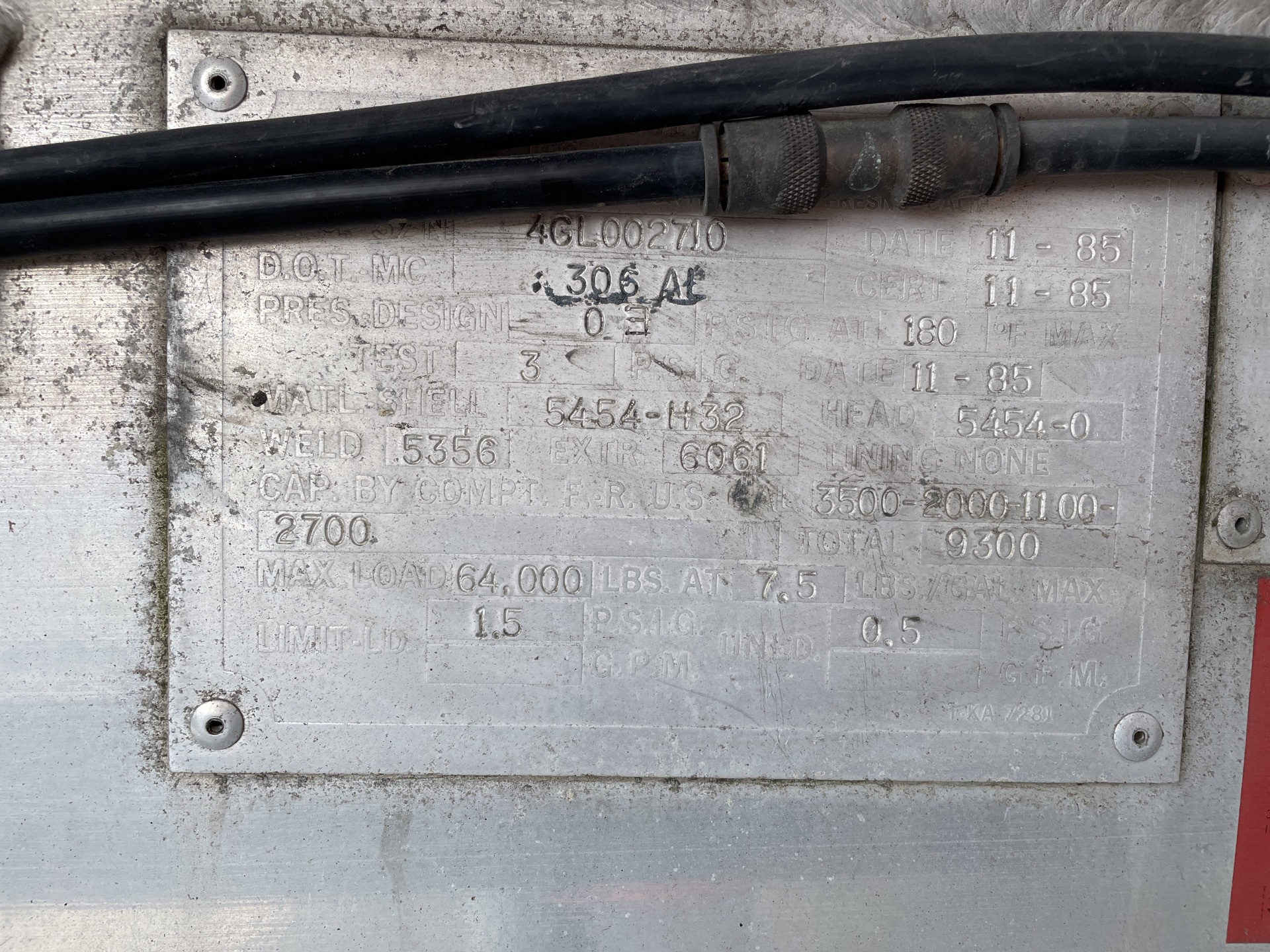

Identification Plate Images
Key Information
- Pic Number
- 933
- Specification
- 306
- Serial Number
- 4GL002710
- Manufacturer
- Fruehauf
- MFG Year
- 1985
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 4
Technical Specifications
- Design Pressure
- 3.0 psi
- Test Pressure
- 3.0 psi
- Temperature Range
- Max Temp 180F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 35204 L
- Max Payload
- 29030 kg
- Max Density
- 0.90 kg/L
- GVWR
- 75000 lbs
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 13249 | - |
| 2 | 7571 | - |
| 3 | 4164 | - |
| 4 | 10221 | - |
