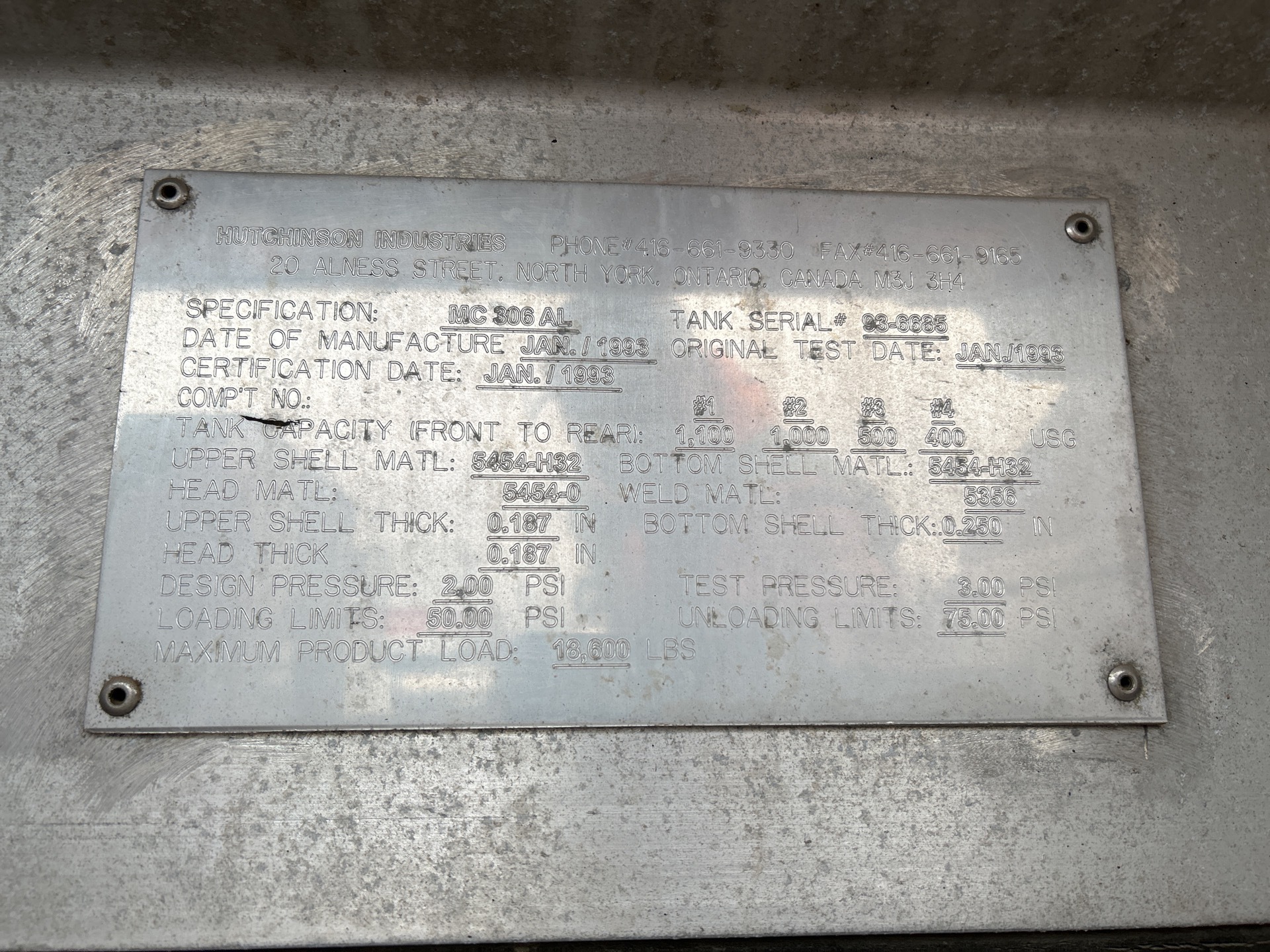

Metal ID Plate
306 - 93-6685 - Hutchinson
Identification Plate Images
Key Information
- Pic Number
- 947
- Specification
- 306
- Serial Number
- 93-6685
- Manufacturer
- Hutchinson
- MFG Year
- 1993
- Tank Configuration
- Single Axle Tank Truck
- # of Compartments
- 4
Technical Specifications
- Design Pressure
- 2.0 psi
- Test Pressure
- 3.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 11356 L
- Max Payload
- 8437 kg
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.187 | N/A |
| Top Shell | 0.187 | N/A |
| Side Shell | 0.187 | N/A |
| Bottom Shell | 0.25 | N/A |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 4164 | - |
| 2 | 3785 | - |
| 3 | 1893 | - |
| 4 | 1514 | - |
