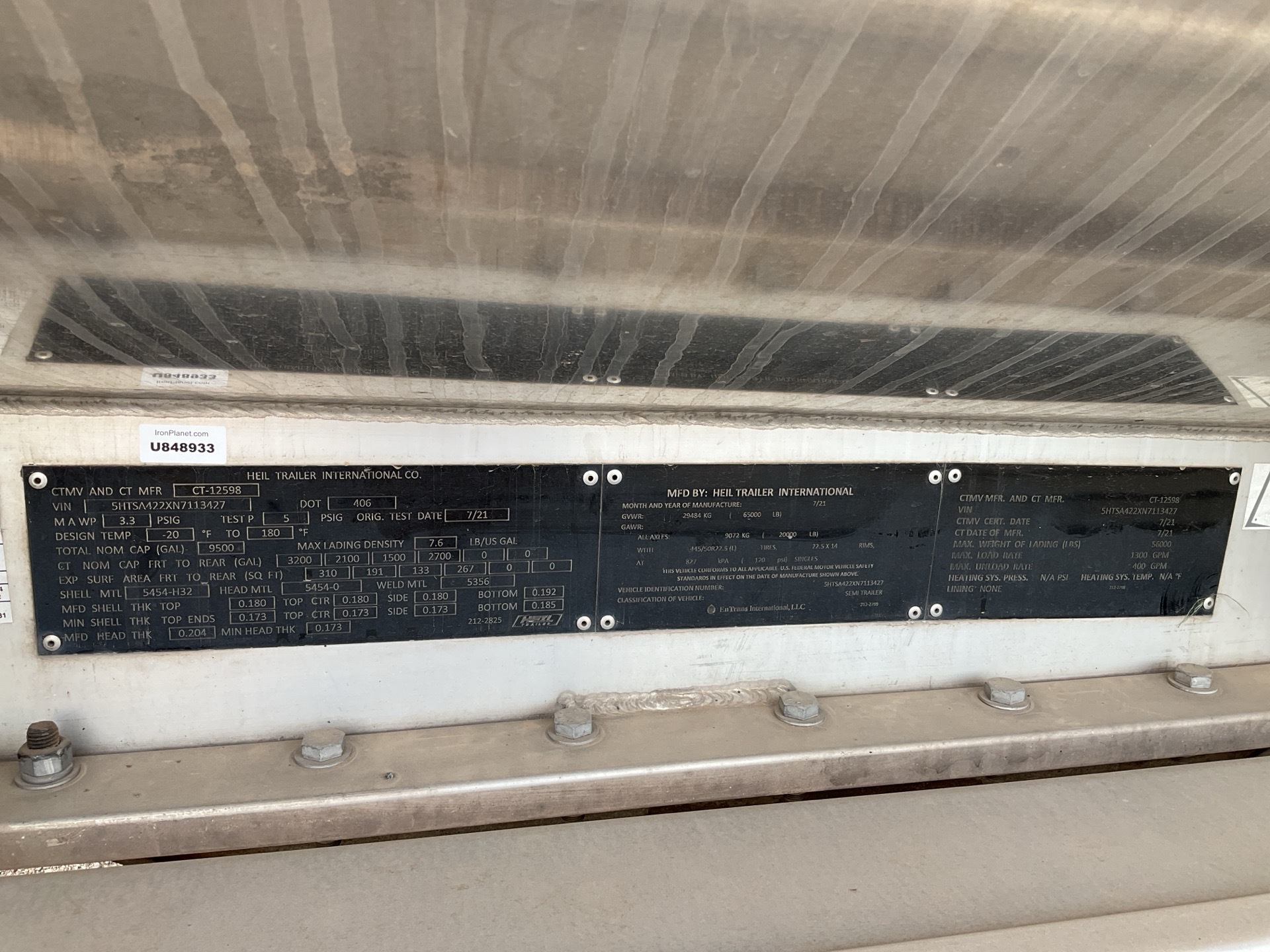

Metal ID Plate
406 - 5HTSA422XN7113427 - Heil
Identification Plate Images
Key Information
- Pic Number
- 955
- Specification
- 406
- Serial Number
- 5HTSA422XN7113427
- Manufacturer
- Heil
- MFG Year
- 2021
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 4
Technical Specifications
- MAWP
- 3.3 psi
- Test Pressure
- 5.0 psi
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 35961 L
- Max Density
- 0.91 kg/L
- GVWR
- 65000 lbs
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.204 | 0.173 |
| Top Shell | 0.18 | 0.173 |
| Side Shell | 0.18 | 0.173 |
| Bottom Shell | 0.192 | 0.185 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 12113 | 28.8 |
| 2 | 7949 | 17.7 |
| 3 | 5678 | 12.4 |
| 4 | 10221 | 24.8 |
