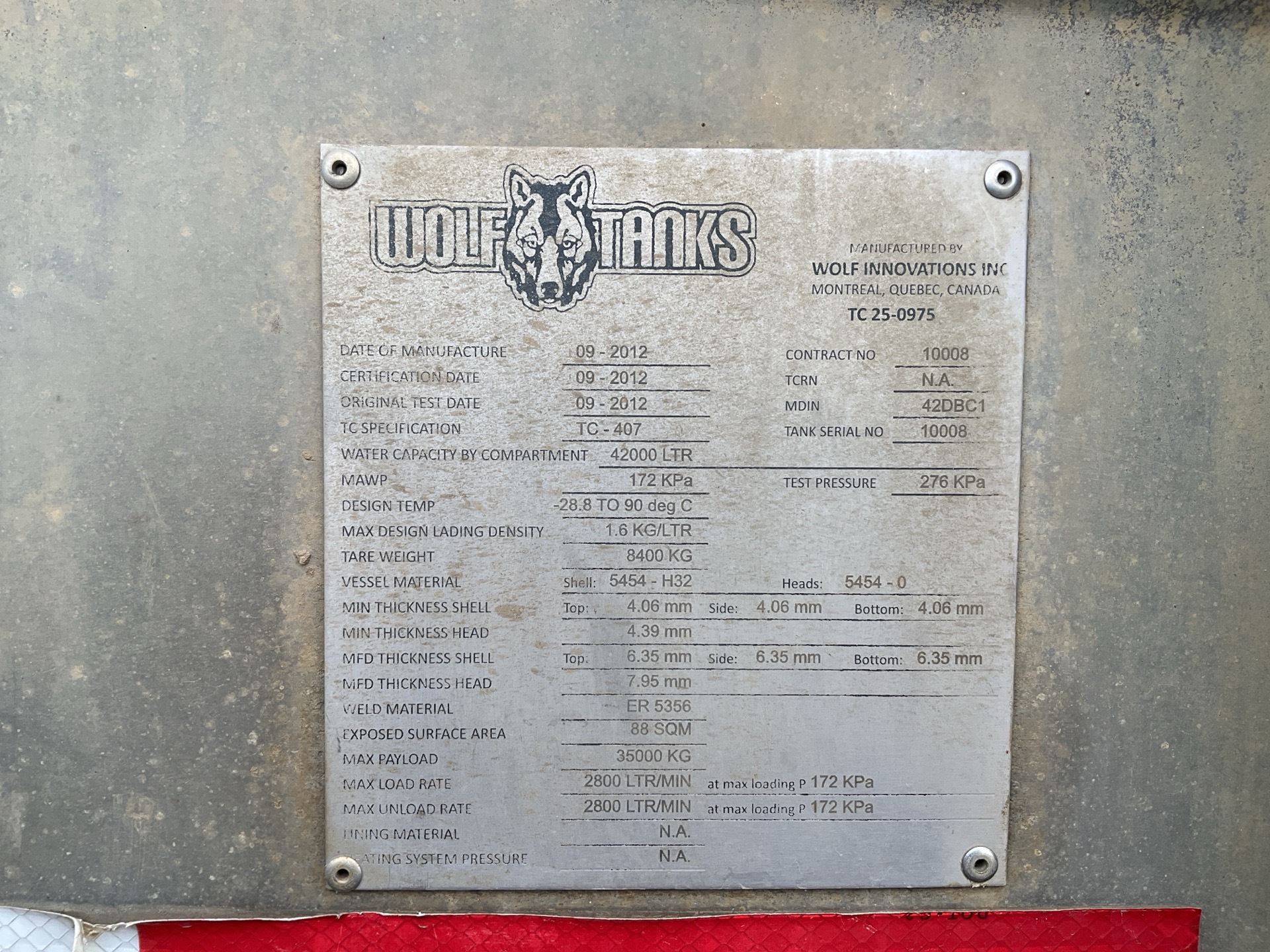

Metal ID Plate
407 - 10008 - Wolf Innovations
Identification Plate Images
Key Information
- Pic Number
- 969
- Specification
- 407
- Serial Number
- 10008
- Manufacturer
- Wolf Innovations
- MFG Year
- 2012
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 40.0 psi
- Temperature Range
- -28.8 to 90 C
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 42000 L
- Max Payload
- 35000 kg
- Max Density
- 1.60 kg/L
- GVWR
- 95681 lbs
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.31 | 0.17 |
| Top Shell | 0.25 | 0.16 |
| Side Shell | 0.25 | 0.16 |
| Bottom Shell | 0.25 | 0.16 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 42000 | 88.0 |
