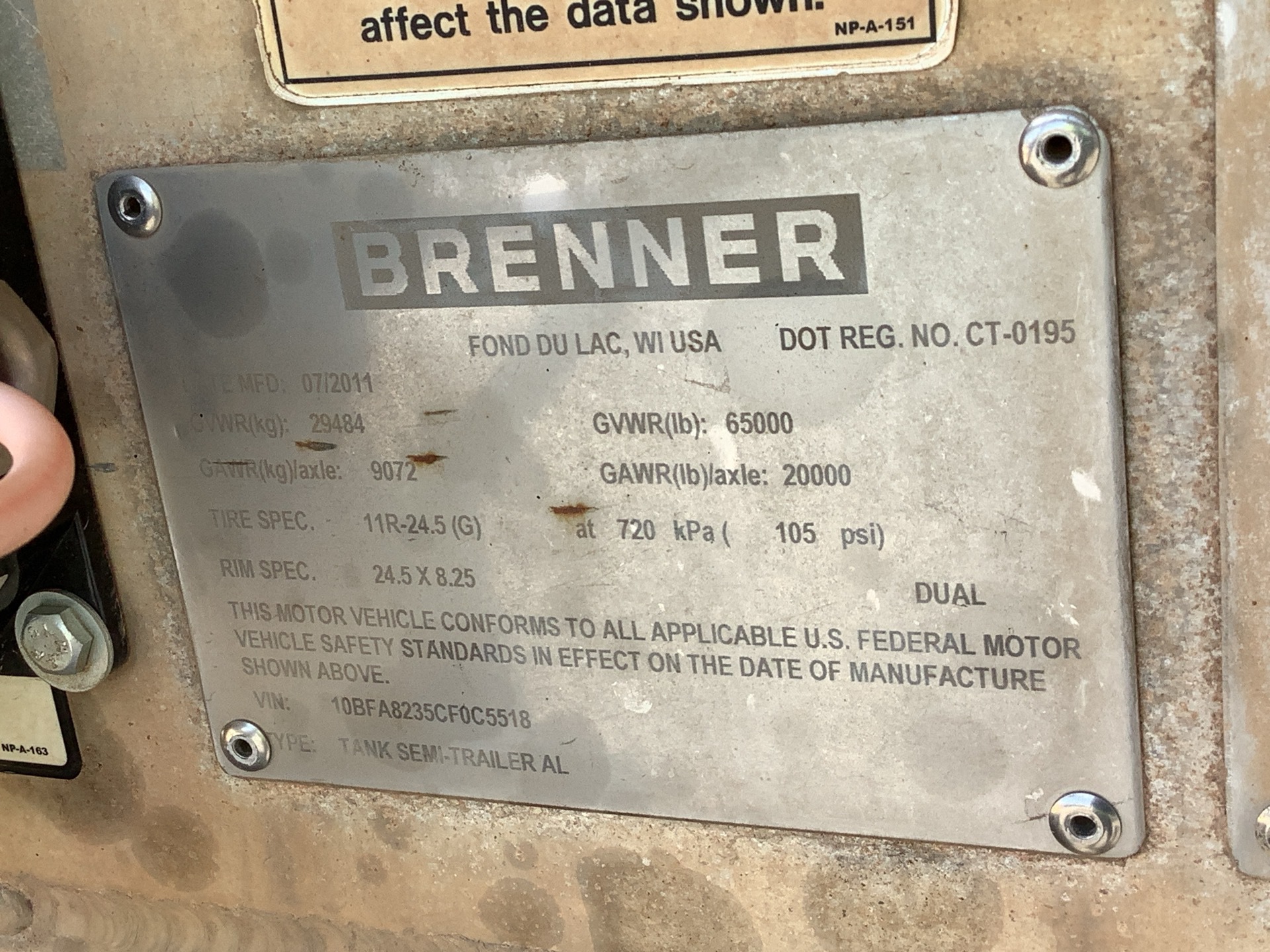

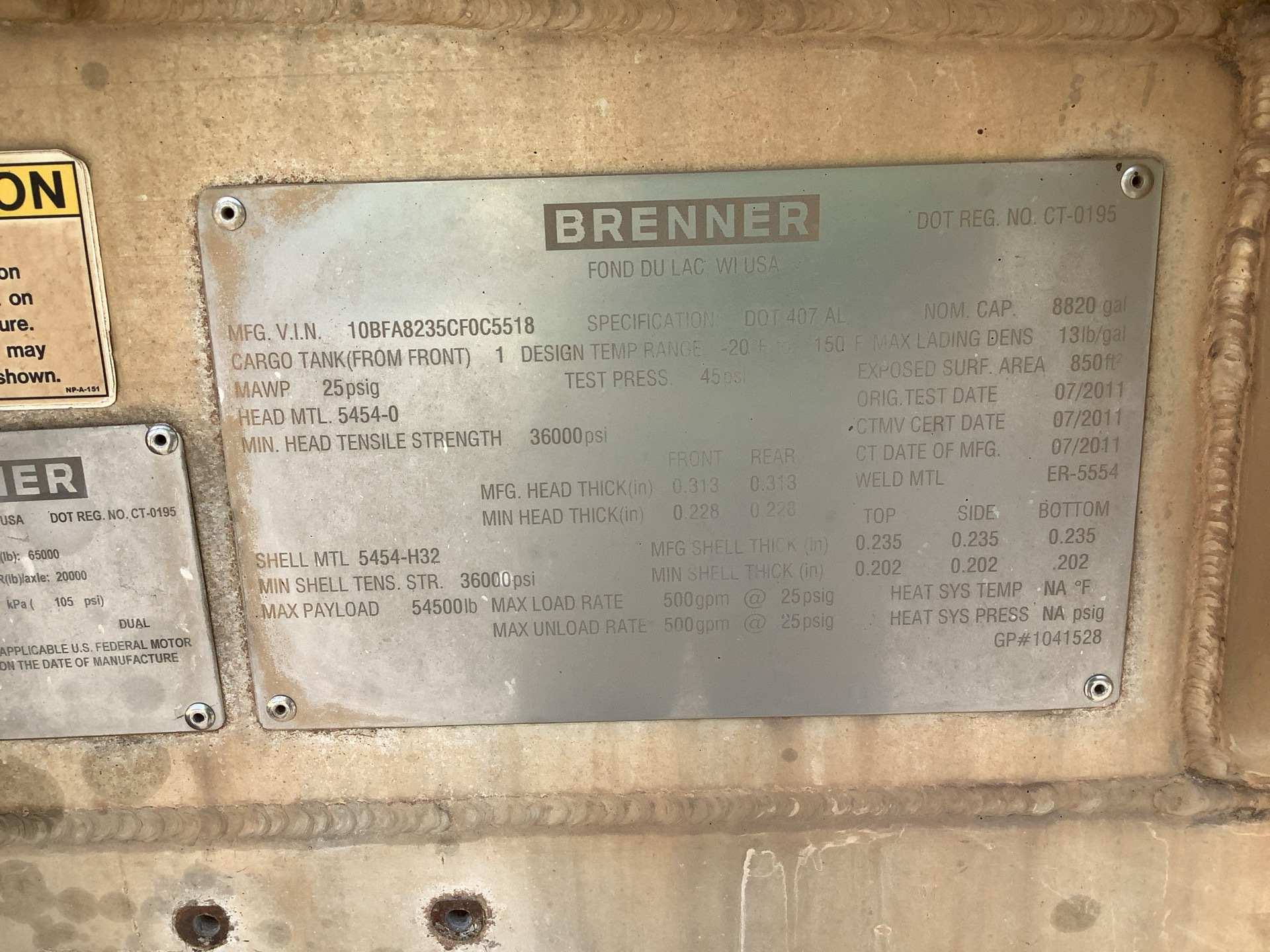

Metal ID Plate
407 - 10BFA8235CF0C5518 - Brenner
Identification Plate Images
Key Information
- Pic Number
- 971
- Specification
- 407
- Serial Number
- 10BFA8235CF0C5518
- Manufacturer
- Brenner
- MFG Year
- 2011
- Tank Configuration
- Tandem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 45.0 psi
- Temperature Range
- -20F to 150F
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5554
- Total Volume
- 33387 L
- Max Payload
- 24721 kg
- Max Density
- 1.56 kg/L
- GVWR
- 65000 lbs
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.313 | 0.228 |
| Top Shell | 0.235 | 0.202 |
| Side Shell | 0.235 | 0.202 |
| Bottom Shell | 0.235 | 0.202 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 33387 | 79.0 |
