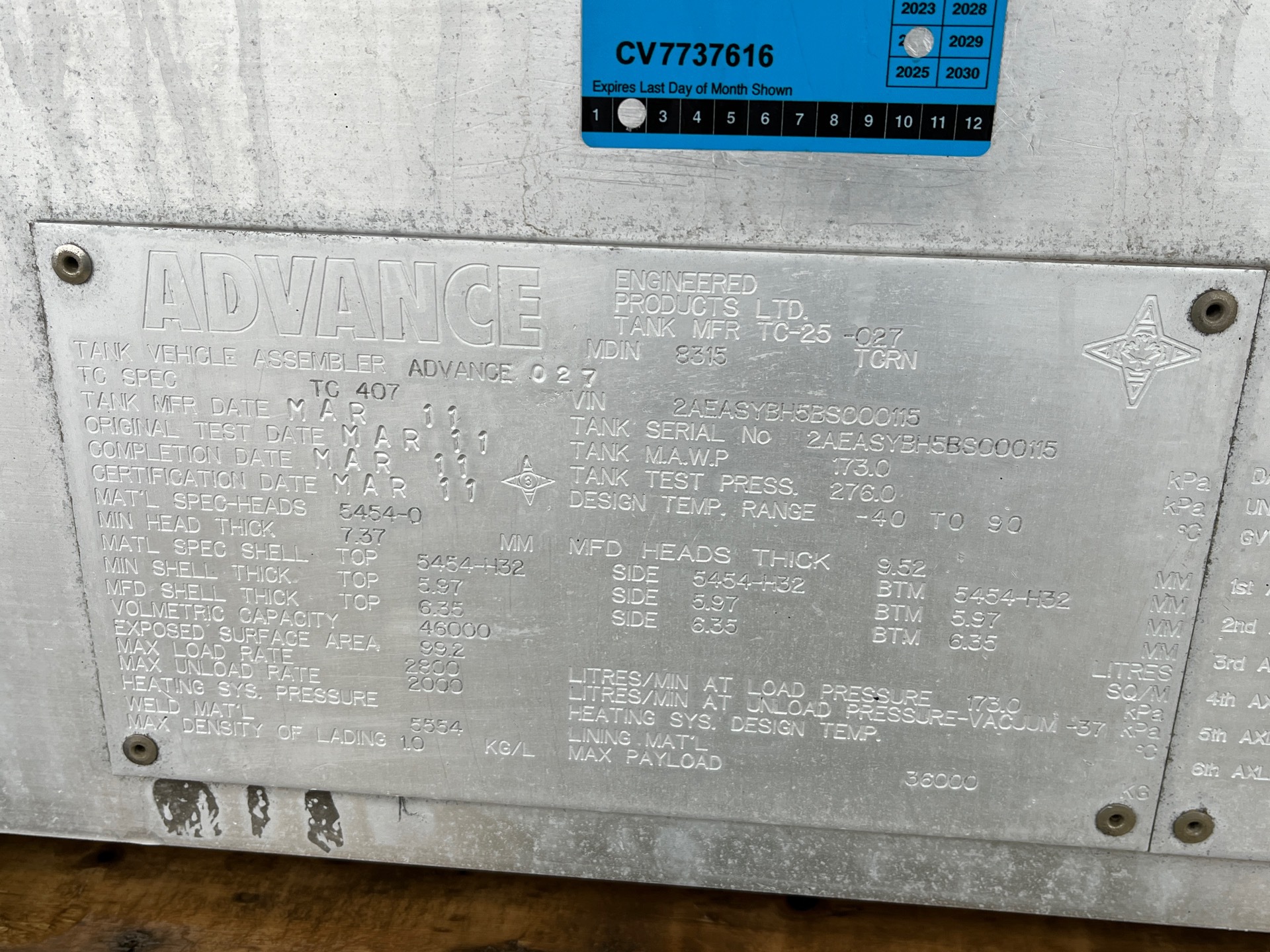

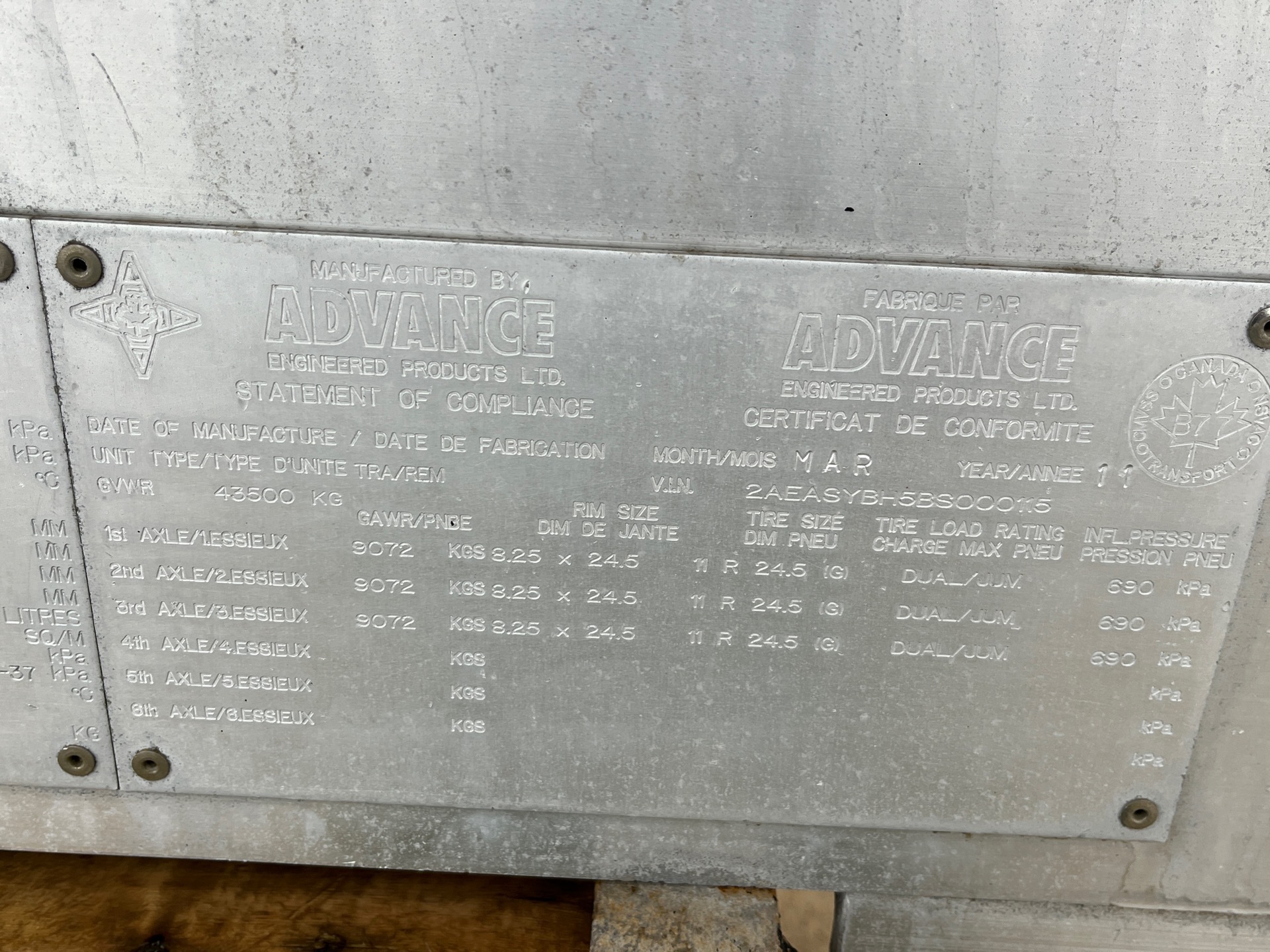

Metal ID Plate
407 - 2AEASYBH5BS000115 - Advance
Identification Plate Images
Key Information
- Pic Number
- 974
- Specification
- 407
- Serial Number
- 2AEASYBH5BS000115
- Manufacturer
- Advance
- Assembler
- Advance
- MFG Year
- 2011
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 25.1 psi
- Test Pressure
- 40.0 psi
- Temperature Range
- -40C to 90C
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5554
- Total Volume
- 46000 L
- Max Payload
- 36000 kg
- Max Density
- 1.00 kg/L
- GVWR
- 95901 lbs
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.37 | 0.29 |
| Top Shell | 0.25 | 0.24 |
| Side Shell | 0.25 | 0.24 |
| Bottom Shell | 0.25 | 0.24 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 46000 | 99.2 |
