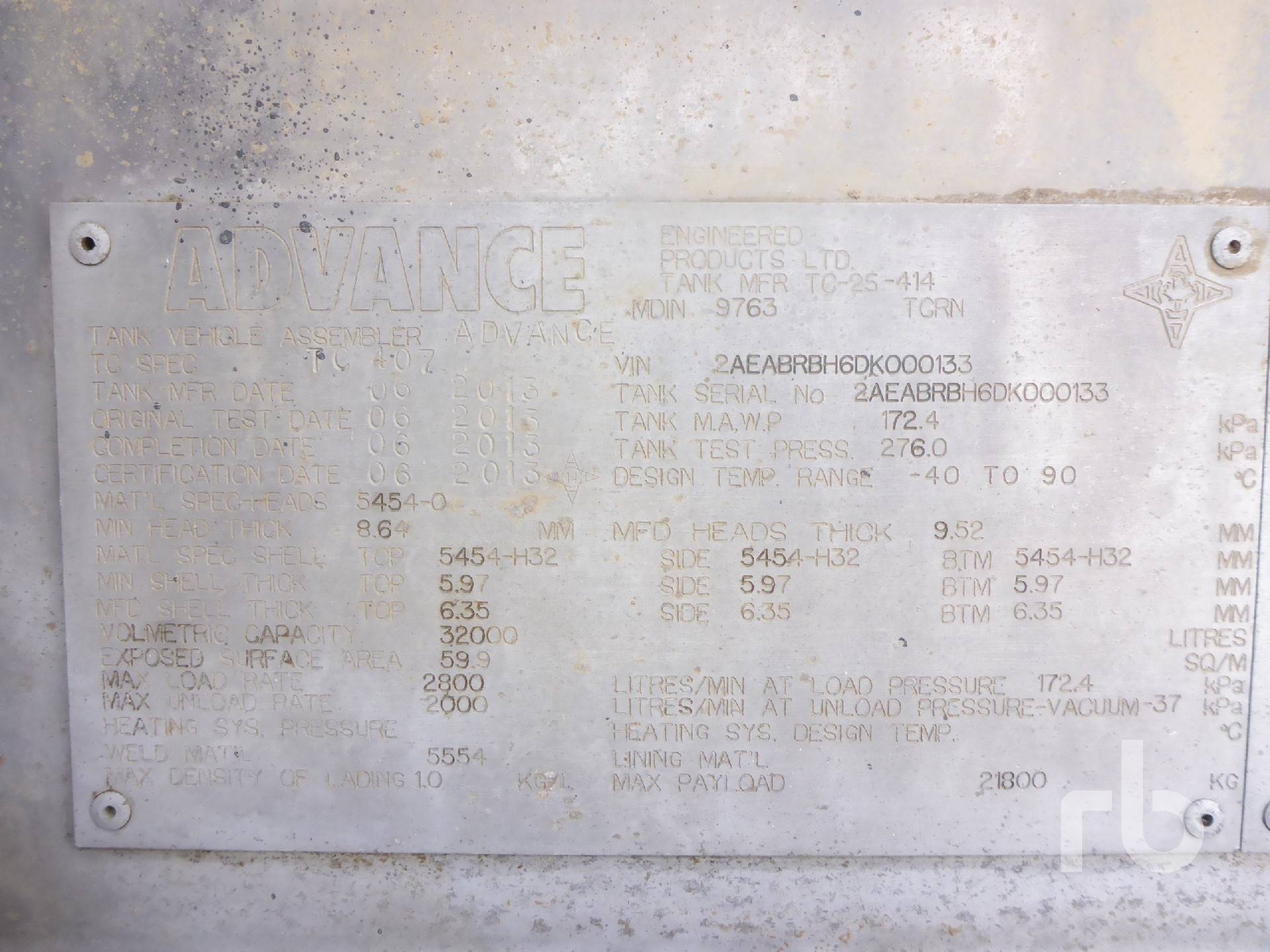

Metal ID Plate
407 - 2AEABRBH6DK000133 - Advance
Identification Plate Images
Key Information
Technical Specifications
- MAWP
- 25.0 psi
- Test Pressure
- 40.0 psi
- Temperature Range
- -40 to 90
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5554
- Total Volume
- 32000 L
- Max Payload
- 21800 kg
- Max Density
- 1.00 kg/L
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.3748031 | 0.34 |
| Top Shell | 0.25 | 0.2350394 |
| Side Shell | 0.25 | 0.2350394 |
| Bottom Shell | 0.25 | 0.2350394 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 32000 | 59.9 |
