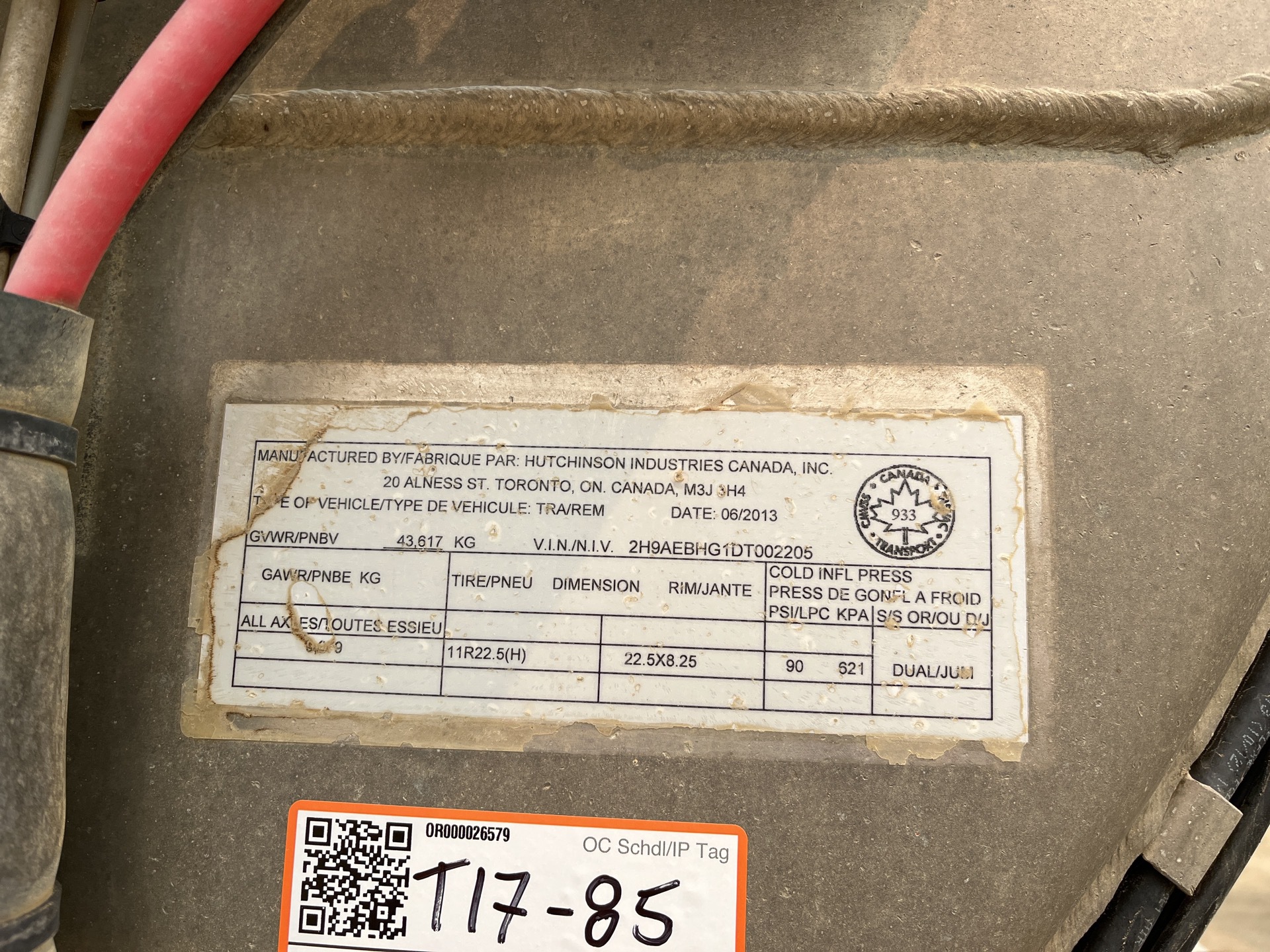

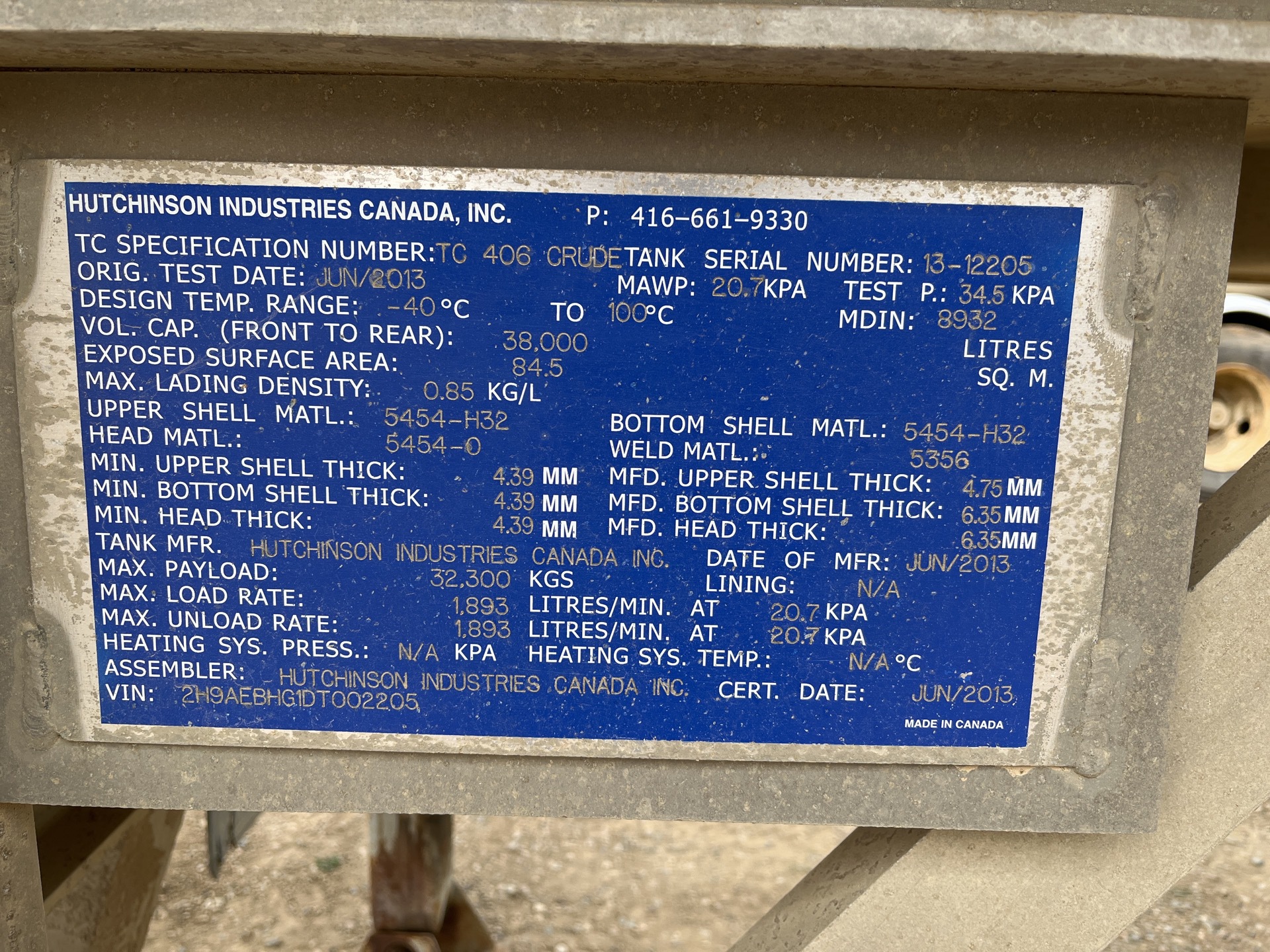

Metal ID Plate
406 Crude - 13-12205 - Hutchinson
Identification Plate Images
Key Information
- Pic Number
- 986
- Specification
- 406 Crude
- Serial Number
- 13-12205
- Manufacturer
- Hutchinson
- Assembler
- Hutchinson
- MFG Year
- 2013
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 1
Technical Specifications
- MAWP
- 3.0 psi
- Test Pressure
- 5.0 psi
- Temperature Range
- -40 to 100C
- Head Material
- 5454-O
- Shell Material
- 5454-H32
- Weld Material
- 5356
- Total Volume
- 38000 L
- Max Payload
- 32300 kg
- Max Density
- 0.85 kg/L
- GVWR
- 96159 lbs
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.25 | 0.17 |
| Top Shell | 0.19 | 0.17 |
| Bottom Shell | 0.25 | 0.17 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 38000 | 84.5 |
