Metal ID Plate
407 - CF42478 - Lazer Inox

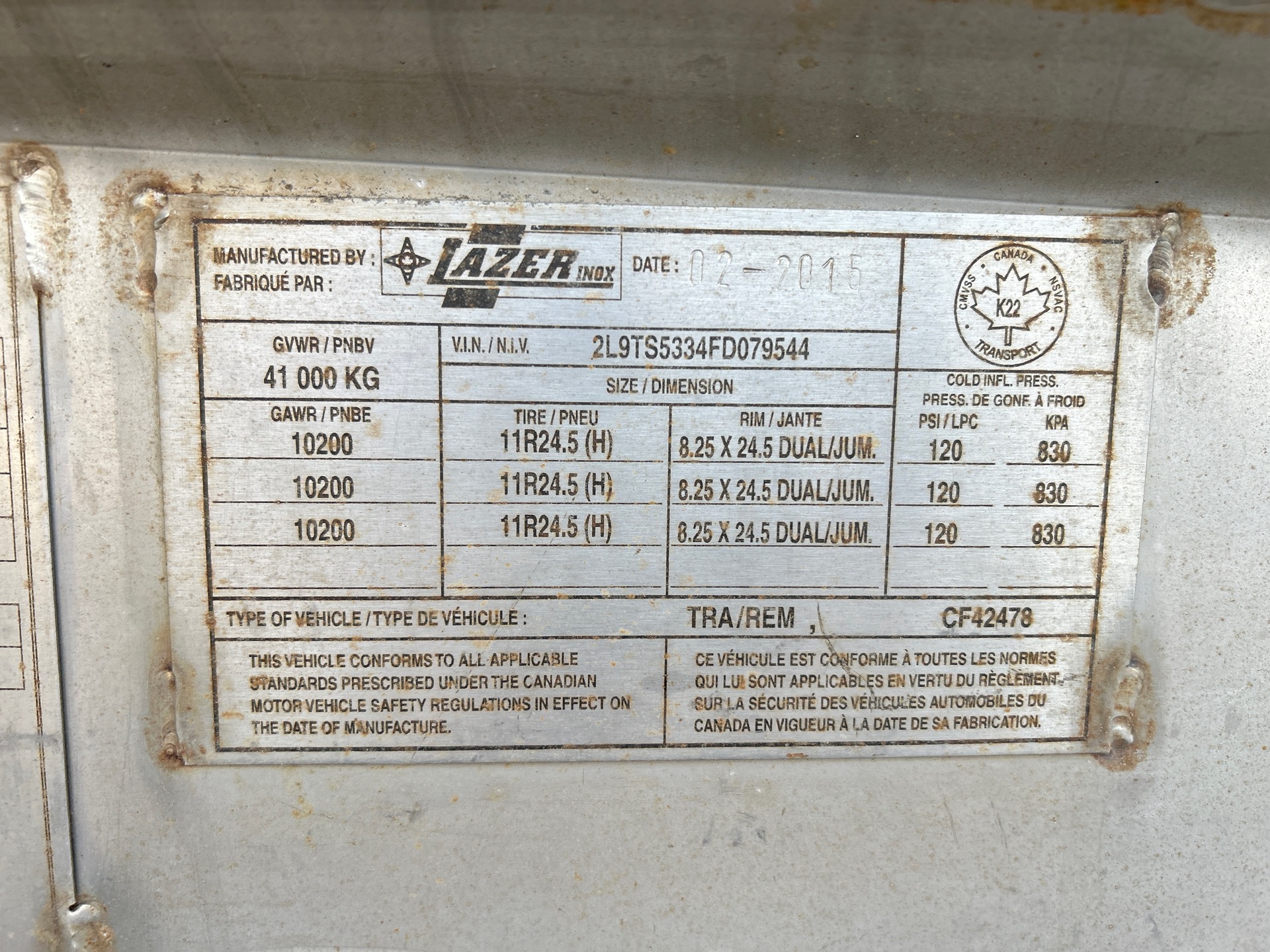

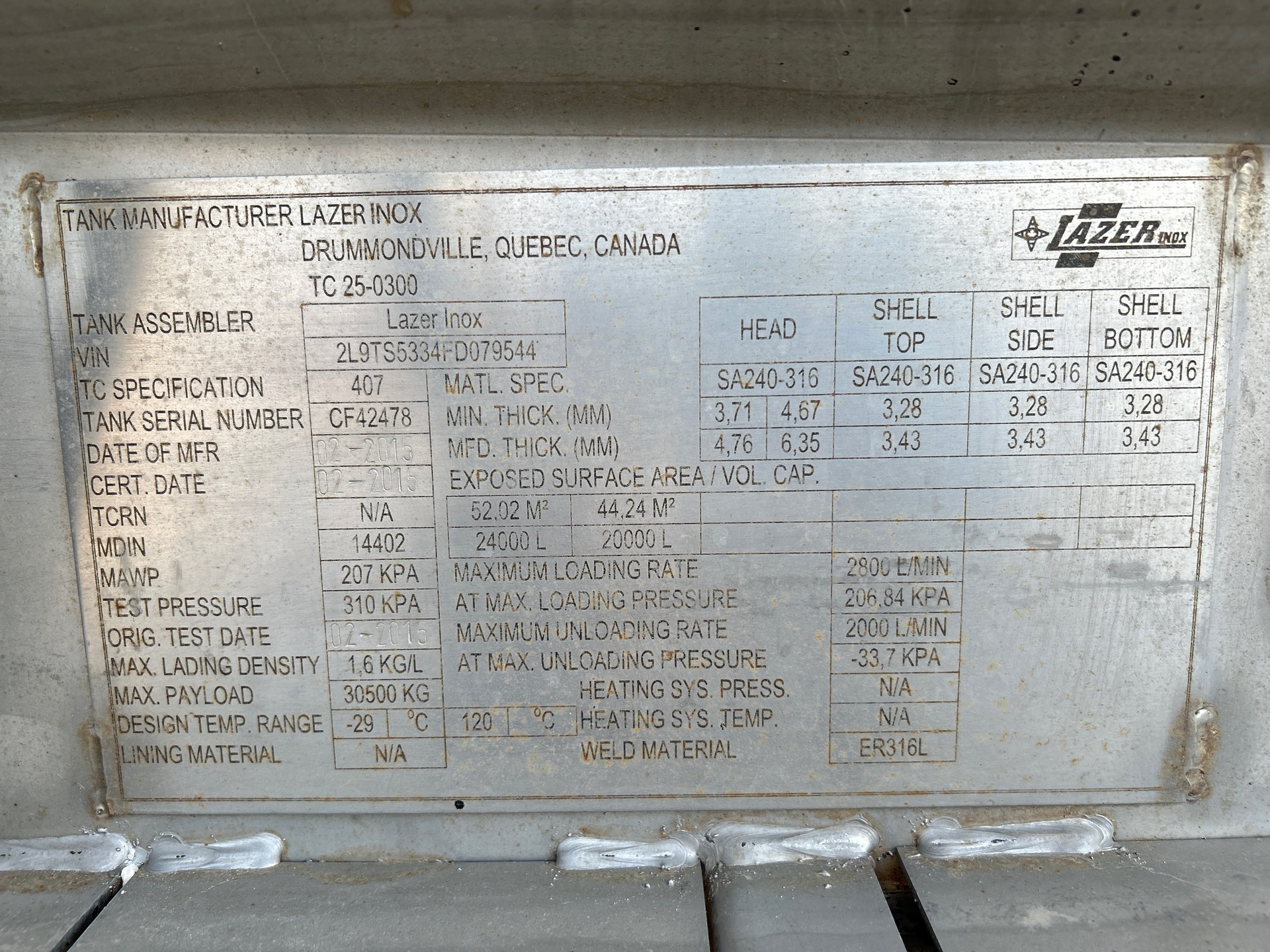

Identification Plate Images
Key Information
- Pic Number
- 998
- Specification
- 407
- Serial Number
- CF42478
- Manufacturer
- Lazer Inox
- Assembler
- Lazer Inox
- MFG Year
- 2015
- Tank Configuration
- Tridem Trailer
- # of Compartments
- 2
Technical Specifications
- MAWP
- 30.0 psi
- Test Pressure
- 45.0 psi
- Temperature Range
- -29C to 120C
- Head Material
- SA 240 316
- Shell Material
- SA 240 316
- Weld Material
- ER316L
- Total Volume
- 44000 L
- Max Payload
- 30500 kg
- Max Density
- 1.60 kg/L
- GVWR
- 90390 lbs
Component Thickness Details
| Component | Manufactured (in) | Minimum (in) |
|---|---|---|
| Head | 0.25 | 0.18 |
| Top Shell | 0.14 | 0.13 |
| Side Shell | 0.14 | 0.13 |
| Bottom Shell | 0.14 | 0.13 |
Compartment Details
| Compartment | Volume (L) | Exposed Surface (m²) |
|---|---|---|
| 1 | 24000 | 52.0 |
| 2 | 20000 | 44.2 |
